Asus P9D-C/4L User Manual
Page 53
ASUS P9D-C Series
2-33
6.

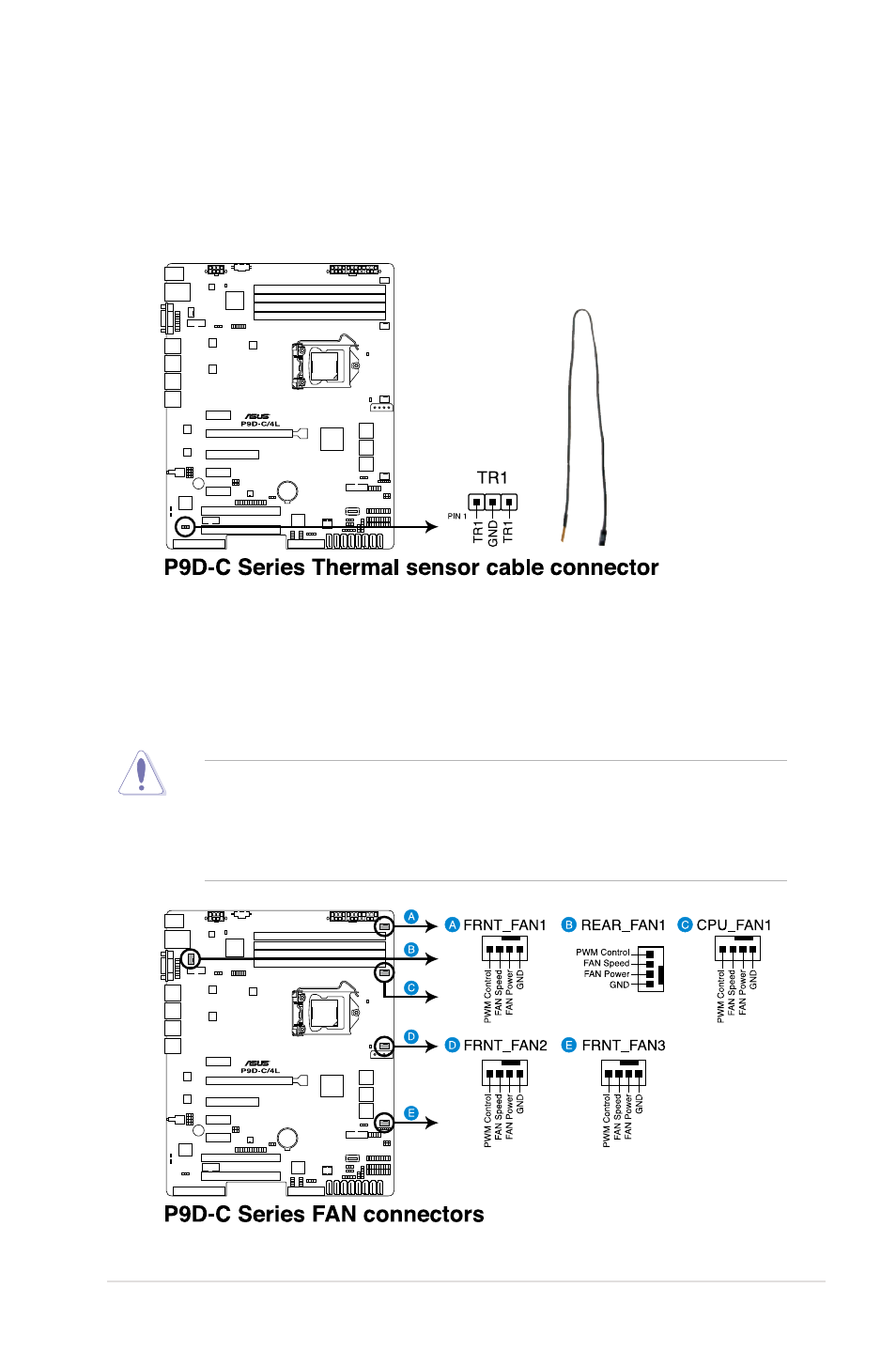

CPU, front, and rear fan connectors
(4-pin CPU_FAN1, FRNT_FAN1, FRNT_FAN2, FRNT_FAN3, REAR_FAN1)
The fan connectors support cooling fans. Connect the fan cables to the fan connectors
on the motherboard, ensuring that the black wire of each cable matches the ground pin
of the connector.
•
DO NOT forget to connect the fan cables to the fan connectors. Insufficient air flow
inside the system may damage the motherboard components.
•
These are not jumpers! DO NOT place jumper caps on the fan connectors!
•
All fans feature the ASUS Smart Fan technology.
5.
Thermal sensor cable connectors (3-pin TR1)
This connector allows you to connect a Thermal sensor cable that is used for temperature
monitoring. Connect the Thermal sensor cable to the connector and place its probe to the
device that you want to check the temperature.
