3 3 3 3 3 Q u i c k i n s t a l l a t i o n g u i d e Q u i c k i n s t a l l a t i o n g u i d e Q u i c k i n s t a l l a t i o n g u i d e Q u i c k i n s t a l l a t i o n g u i d e Q u i c k i n s t a l l a t i o n g u i d e
English

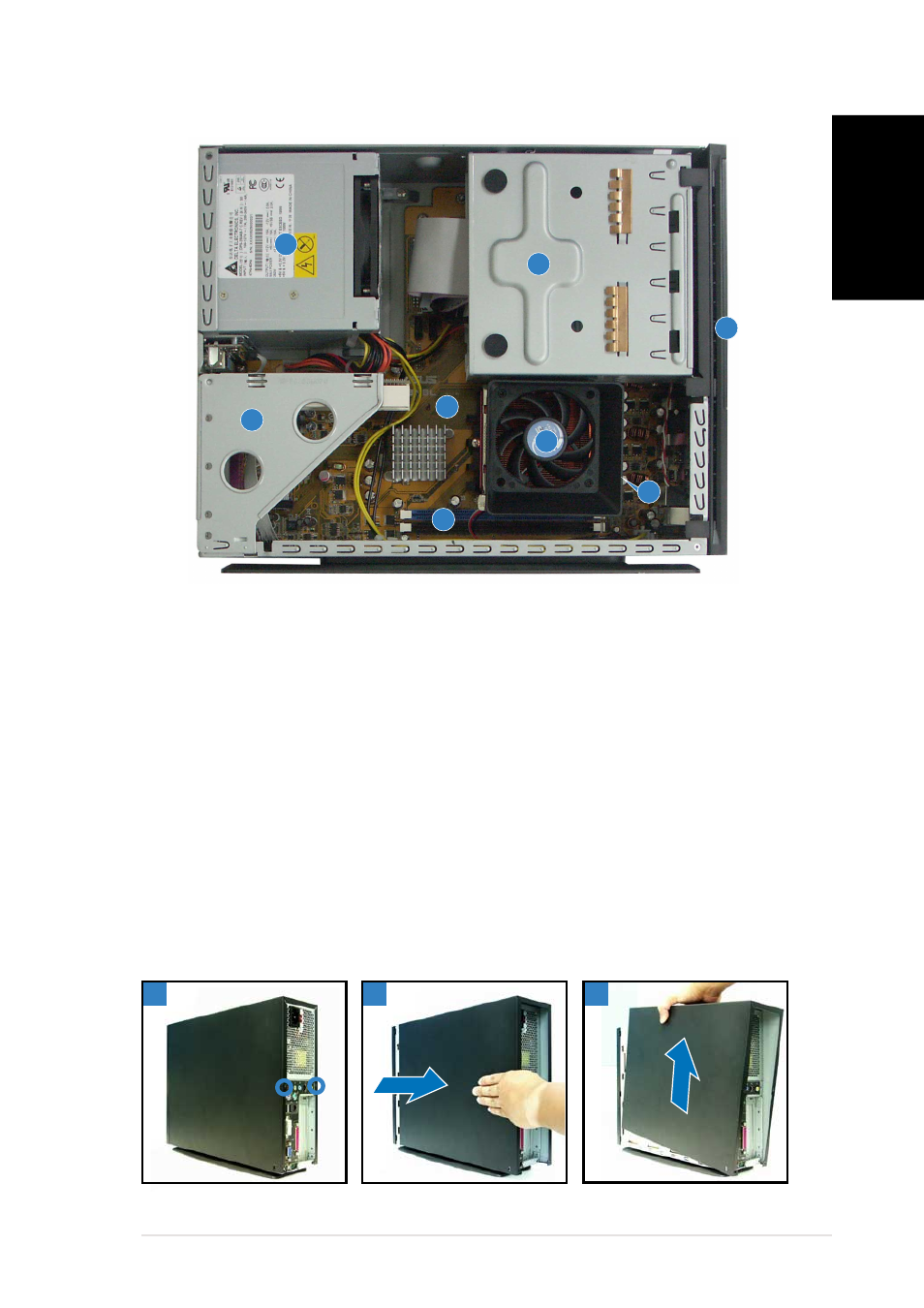

Internal components
1. 5.25-inch optical drive and
3.5 inch hard disk drive cage
2. Front panel cover
3. Power supply unit
4. PCI card riser bracket
(connected to the
motherboard PCI slot)
5. ASUS motherboard
6. DIMM sockets
7. Socket for 939-pin processor
(under the CPU fan and
heatsink assembly)
8. CPU fan and heatsink assembly
1 1 1 1 1
2 2 2 2 2
3 3 3 3 3
4 4 4 4 4
5 5 5 5 5
6 6 6 6 6
8 8 8 8 8
Removing the cover
1. Remove the cover screws. Keep the screws for later use.
2. Pull the cover slightly toward the rear panel.
3. Lift the cover, then set aside.
7 7 7 7 7
3 3 3 3 3 2 2 2 2 2 1 1 1 1 1
