II. Components
II. System Components
SCSI ID Setting
SCSI ID settings are made through DIP switches located on the SCSI board.
The SCSI board has four dip switches to set the hard drive’s power on delay
and SCSI ID.
SCSI ID Setting
RMT_START DLY_START description
off
off Motor up when power on
on off Motor up after START UNIT command
off on Motor up after 12xSCSI ID ms
on on Reserved
IDSEL1 IDSEL0 Slot1 Slot2 Slot3A/3B Slot4 Slot5A/5B
off off Reserved
on on 15 12 11 8 3
on off 14 9 6 4 1
off on 13 10 5 2 0

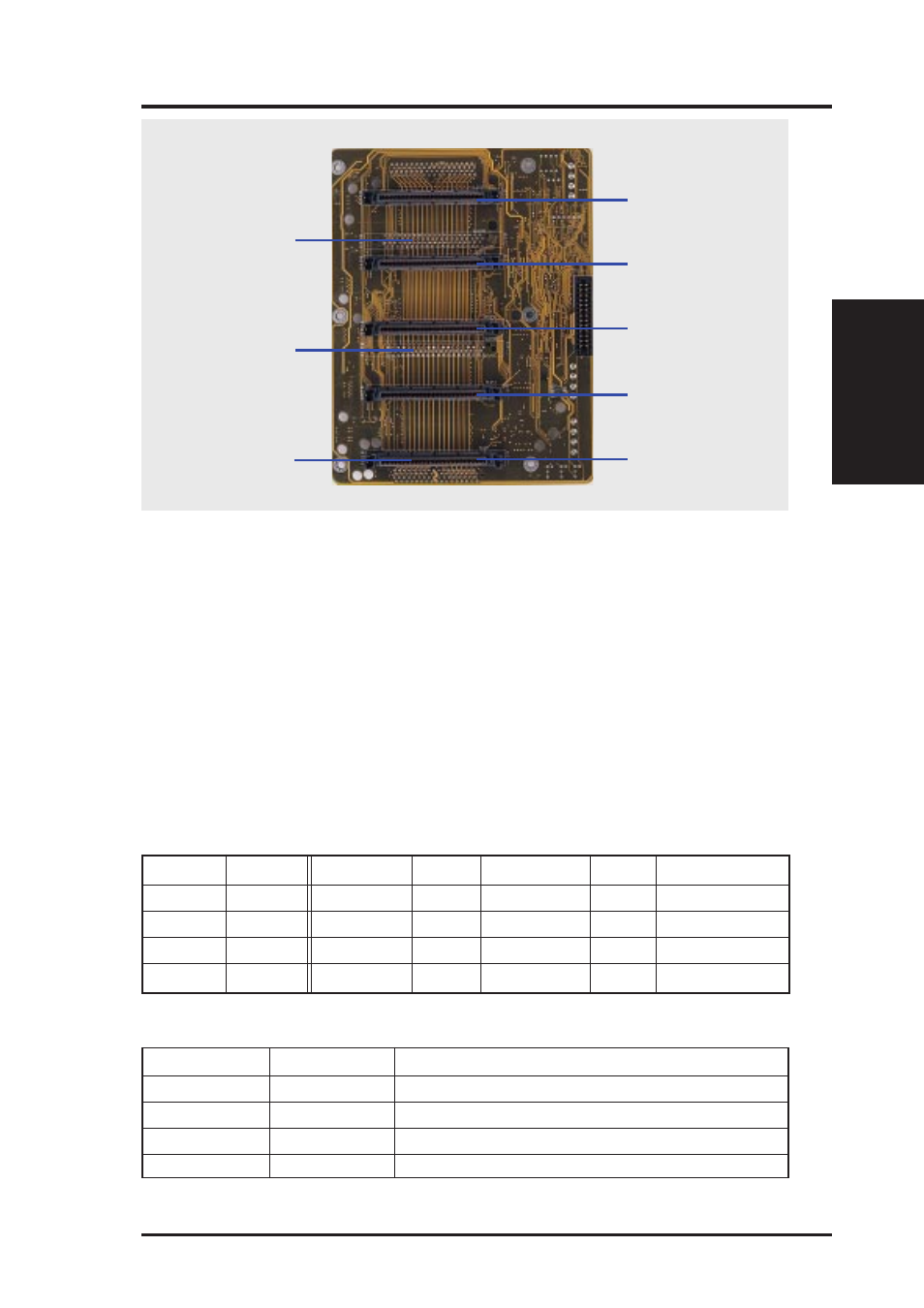

Hard Disk Drive Power On Delay
1” Tray
Connector #5
1” Tray
Connector #4
1” Tray
Connector #3
1” Tray
Connector #2
1” Tray
Connector #1
1.6” Tray
Connector #5B
1.6” Tray
Connector #3B
1.6” Tray
Connector #1
