AP2000 Hardware Reference Guide

II. Components

II. System Components

Cable Connections

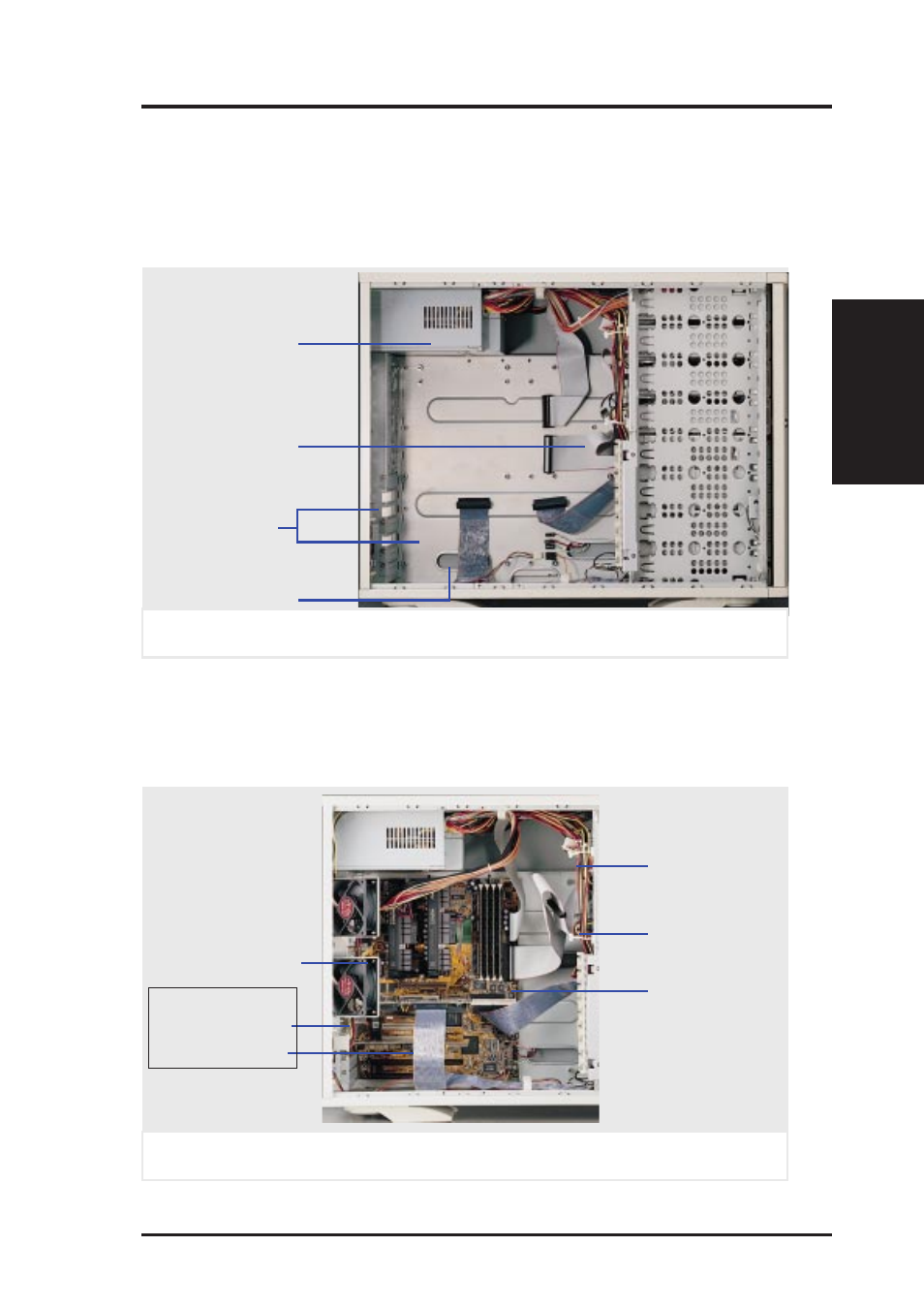

The cables connect to the motherboard as shown. The P2B-DS includes
onboard SCSI with 68-pin and 50-pin SCSI connectors. RAID connections
require the ASUS PCI-DA2100A RAID card.

Device Cables

Several cables are used for connecting devices in the server. The following
picture points out the name of each cable and its suggested location. Plastic
keepers protect the cables from contact with the fans and other devices.
Make sure that all cables are properly secured.

Motherboard with cables connected

IDE Cable

Floppy Cable

ASUS RAID Card:

SCSI Cable Ch. 0

SCSI Cable Ch. 1

Cables from devices

Floppy Cable

68-pin Wide-

SCSI Cables
(for RAID card)

Plastic Keeper

IDE Cable
(CD-ROM)

68-pin Wide-SCSI
for onboard SCSI

System Fan Module
