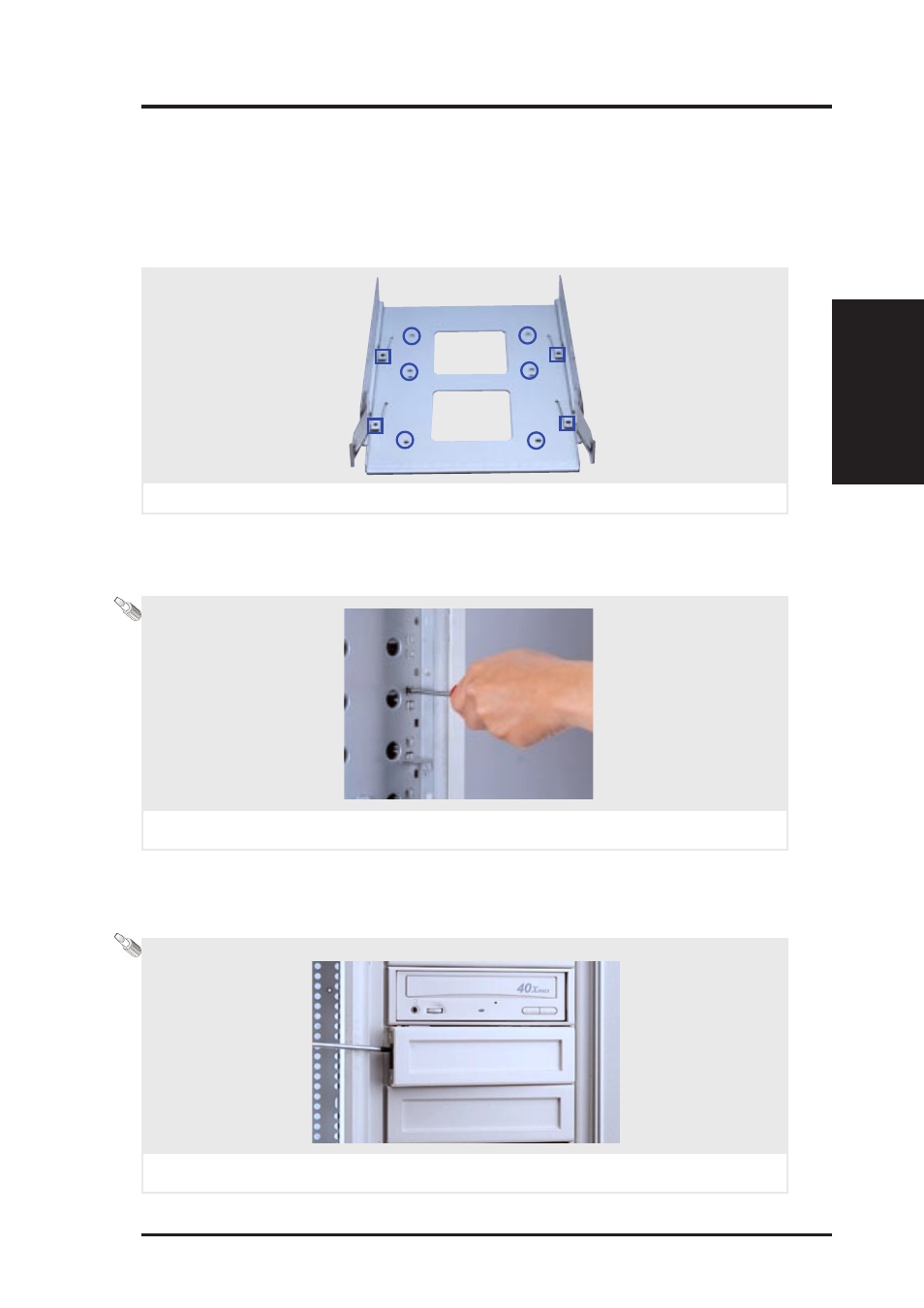

Fixed Storage Device Tray
Internal fixed storage devices are mounted on removable trays. There are
four available, one for a floppy device and another three for full-size de-
vices. There are six screws provided (as circled) for mounting a 4 inch de-
vice such as a floppy or hard disk drive. Four screws are provided (as boxed)
for mounting a 6 inch device such as a CD-ROM or tape drive.
Fixed Device Bay Cover
After releasing the device bay cover clips, pry the cover away from the
chassis using a screw driver from the front.
Fixed Device Bay Cover Clips
The device bay panel is held by two plastic clips on each side. Press these
clips in with a screwdriver to release.
Removing the device bay cover clips
Fixed storage device tray
II. System Components
Removing the device bay cover clips
