36 Chapter 2: Basic installation

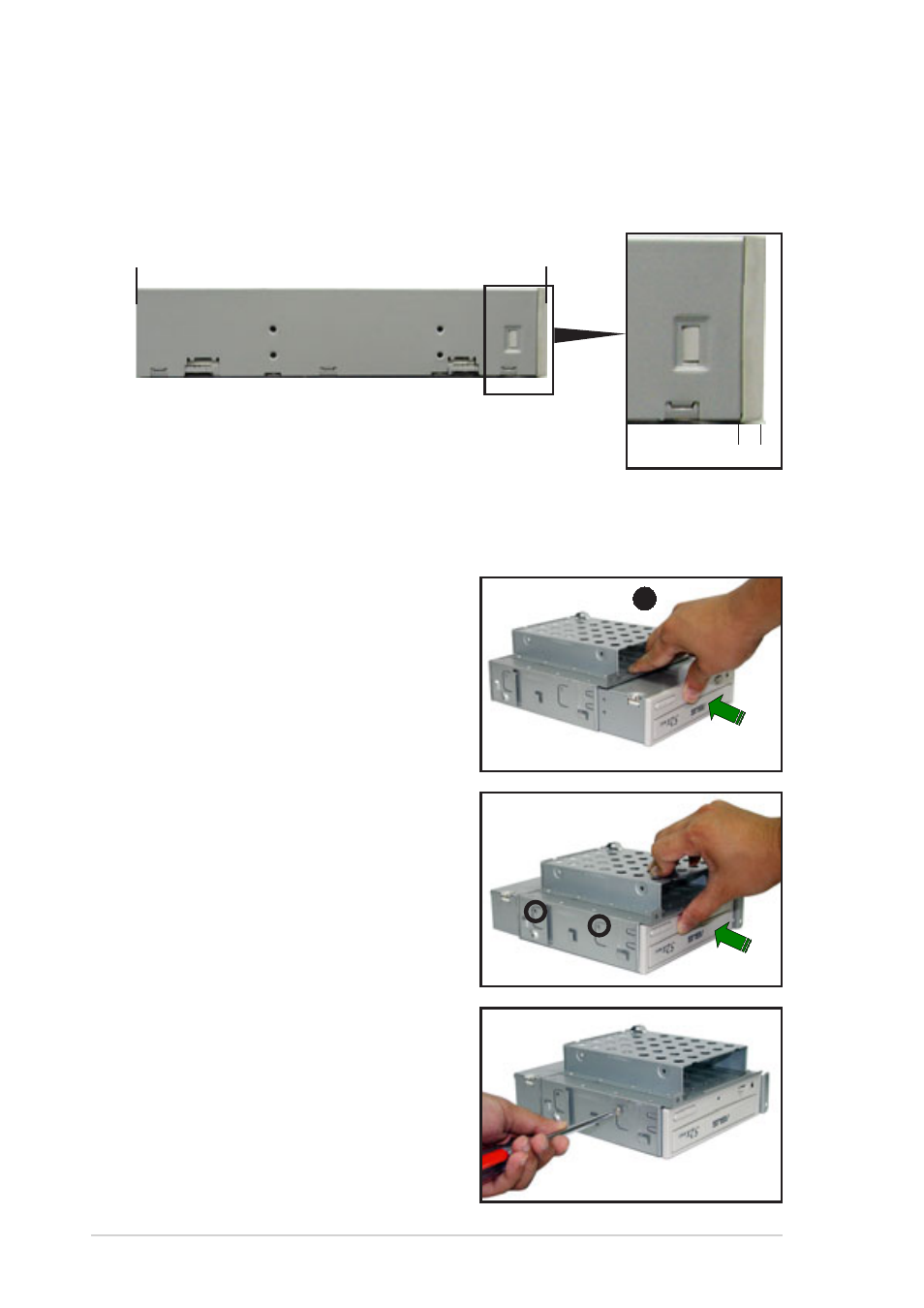

Optical drive cover thickness and length
The thickness of the optical drive front panel cover should be less than or
equal to 7 millimeters and the length of the drive should be less than or
equal to 208 millimeters.
Installing a new optical drive
To install a new optical drive:
1. Lay the storage drive assembly
upside down on a flat surface.
2. Insert the optical drive to the
bay upside down.
↓
7mm
↓ ↓
208mm
4. Secure the optical drive with two
screws on both sides of the bay.
3. Push the drive into the bay until
their screw holes align.
2
