Page 15
English
English
ASUS CM170
1
English
English
1..
�oltage selector switch.
�oltage.selector.switch..Switch to select the appropriate system input voltage.
2..
Power connector.
Power.connector..Plug the power cord to this connector.
3..
Air vents.
Air.vents. These vents allow air ventilation.
DO NOT block the air vents on the chassis. Always provide proper ventilation for your
computer.
4..
PS/2 Keyboard / Mouse Combo port �purple�.
PS/2.Keyboard./.Mouse.Combo.port.�purple�. This port is for a PS/ keyboard.
5..
USB 2.0 ports.
USB.2.0.ports. These Universal Serial Bus .0 (USB .0) ports connect to USB .0
devices such as a mouse, printer, scanner, camera, PDA, and others.
6..
Optical S/PDIF�OUT port.
Optical.S/PDIF�OUT.port. This port connects to an external audio output device via
an optical S/PDIF cable.
7..
HDMI port.
HDMI.port. This port is for a High-Definition Multimedia Interface (HDMI) connector,
and is HDCP compliant allowing playback of HD DVD, Blu-ray, and other protected
content.
8..
D�I-D port.
D�I-D.port. This port is for any DVI-D compatible device and is HDCP compliant
allowing playback of HD DVD, Blu-ray, and other protected content.
9..
�GA port.
�GA.port. This port is for VGA-compatible devices such as a VGA monitor.
10.. USB 2.0 ports.
USB.2.0.ports. These Universal Serial Bus .0 (USB .0) ports connect to USB .0
devices such as a mouse, printer, scanner, camera, PDA, and others.
11.. USB 2.0 ports.
USB.2.0.ports. These Universal Serial Bus .0 (USB .0) ports connect to USB .0
devices such as a mouse, printer, scanner, camera, PDA, and others.
12.. LAN �R�-45� port.
LAN.�R�-45�.port. This port allows Gigabit connection to a Local Area Network (LAN)
through a network hub.
.

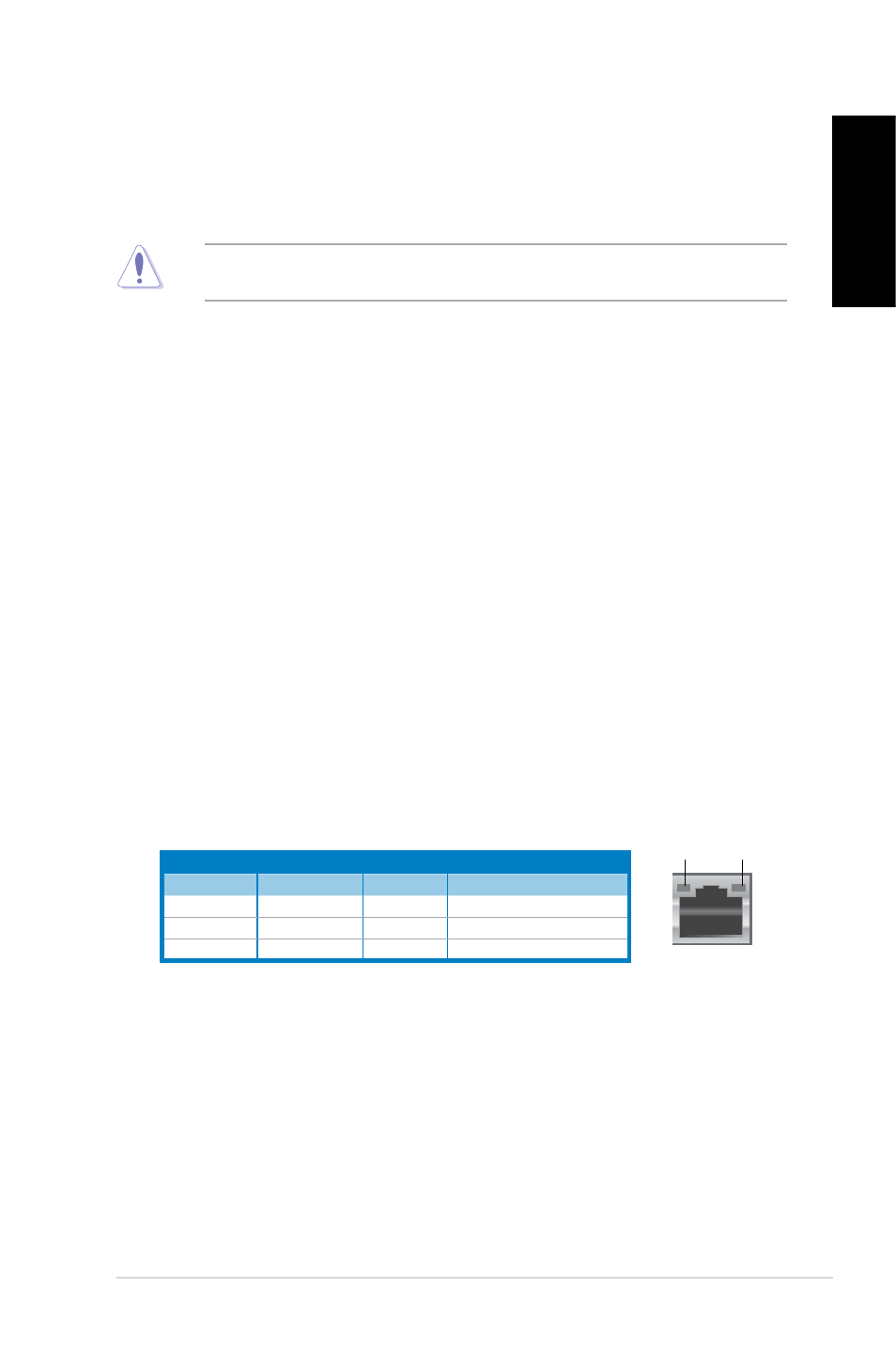

LAN.port.LED.indications
Activity/Link.LED............................Speed.LED
Status
Description
Status
Description
OFF
No link
OFF
10Mbps connection
ORANGE
Linked
ORANGE
100Mbps connection
BLINKING
Data activity
GREEN
1Gbps connection
LAN.port
SPEED.
LED
ACT/LINK.
LED
