3-9 ASUS V-Series P8H61E

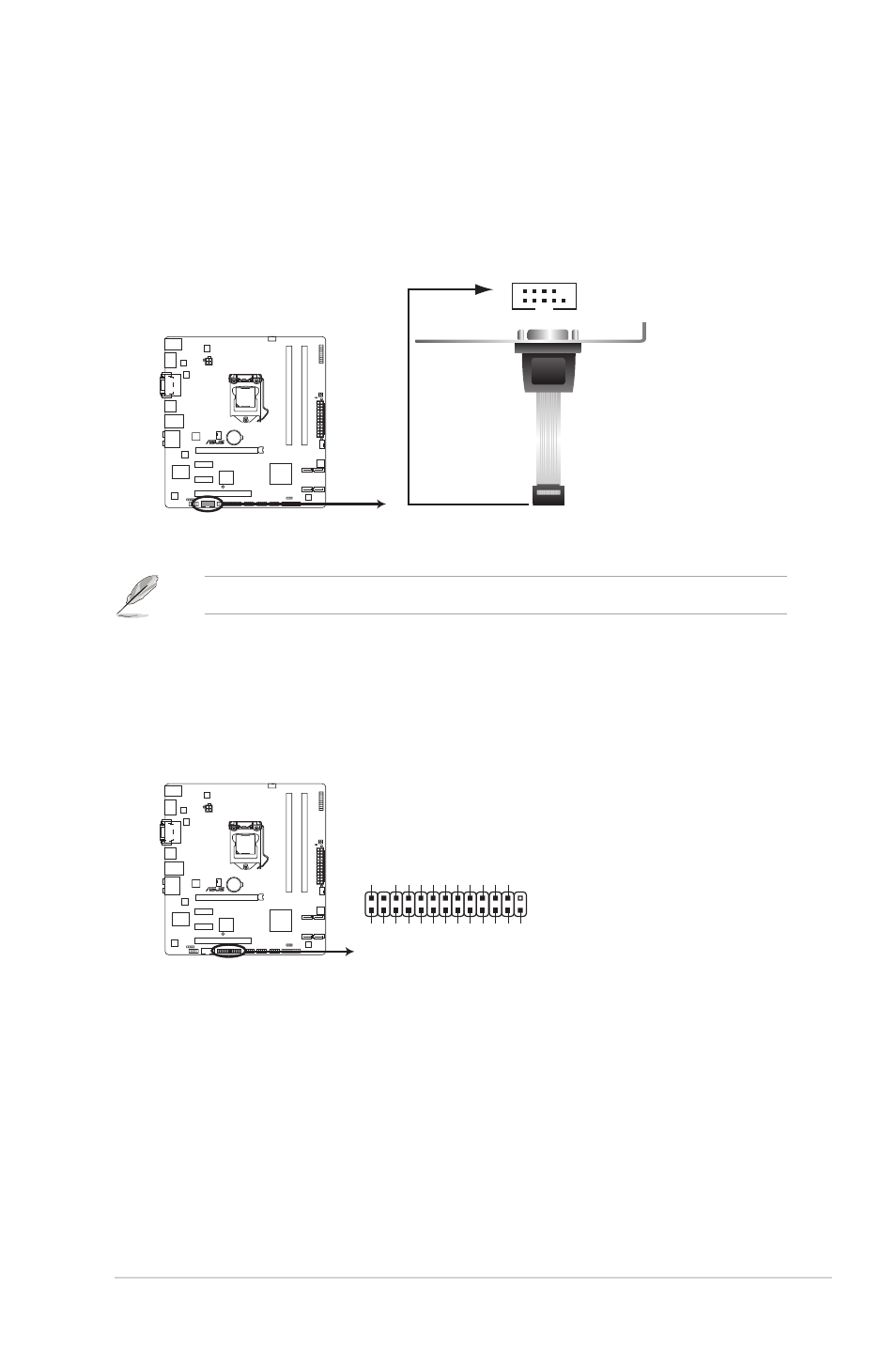

8. Serial port connector �10-1 pin COM1�
This connector is for a serial (COM) port. Connect the serial port module cable to this
connector, then install the module to a slot opening at the back of the system chassis.
The COM module is purchased separately.
P8H61-M PRO_DP
P8H61-M PRO_DP Serial port (COM1) connector
PIN 1
COM1
9. LPT connector �26-1 pin LPT�
The LPT (Line Printing Terminal) connector supports devices such as a printer. LPT
standardizes as IEEE 1284, which is the parallel port interface on IBM PC-compatible
computers.
P8H61-M PRO_DP
P8H61-M PRO_DP Parallel Port Connector
PIN
1
LPT
STB#
PD
0
PD
1
PD
2
PD
3
PD
4
PD
5
PD
6
PD
7
ACK# BUSY
PE
SLCT
AF
D
ERR# INIT
#
SLIN
#
GND GND GND GND GND GND GND GND
