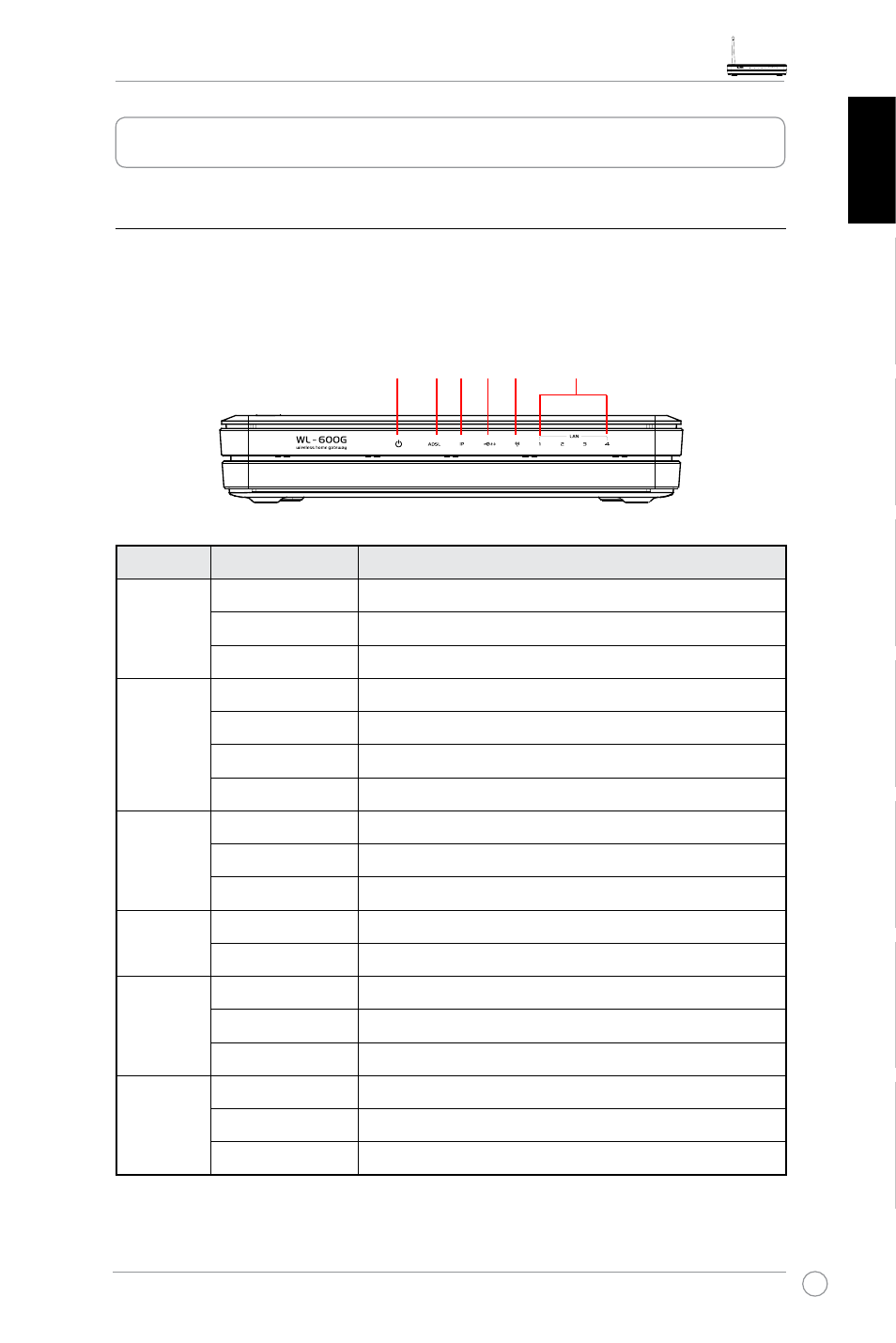

Hardware Overview
Front panel
The.WL-600g.Wireless.ADSL2/2+.Home.Gateway.front.panel.contains.LED.indicators.
which.shows.the.status.of.WL-600g.
Label Activity Description
P W R.
(Power)
ON Power.ON
OFF No.power
Blink Restoring.to.factory.default
ADSL ON.(Green) ADSL.link.up
Blink.(Green) ADSL.training
ON.(Red) ADSL.link.down
OFF ADSL.is.down
IP ON.(Green) ADSL.is.up.and.the.link.is.PPP
ON.(Red) ADSL.is.up,.but.the.link.is.not.PPP
OFF ADSL.is.down
USB.2.0 ON USB.device.detected
OFF No.USB.device.detected
AIR ON Wireless.LAN.ready
Blink Transmiting.or.receiving.data.through.wireless
OFF No.power.or.wireless.LAN.not.ready
LAN.1-4 ON Physically.connected.to.an.Ethernet.device
Blink Transmitting.or.receiving.data.through.Ethernet.cable
OFF No.power.or.no.physical.connection
PWR ADSL IP USB AIR LAN
