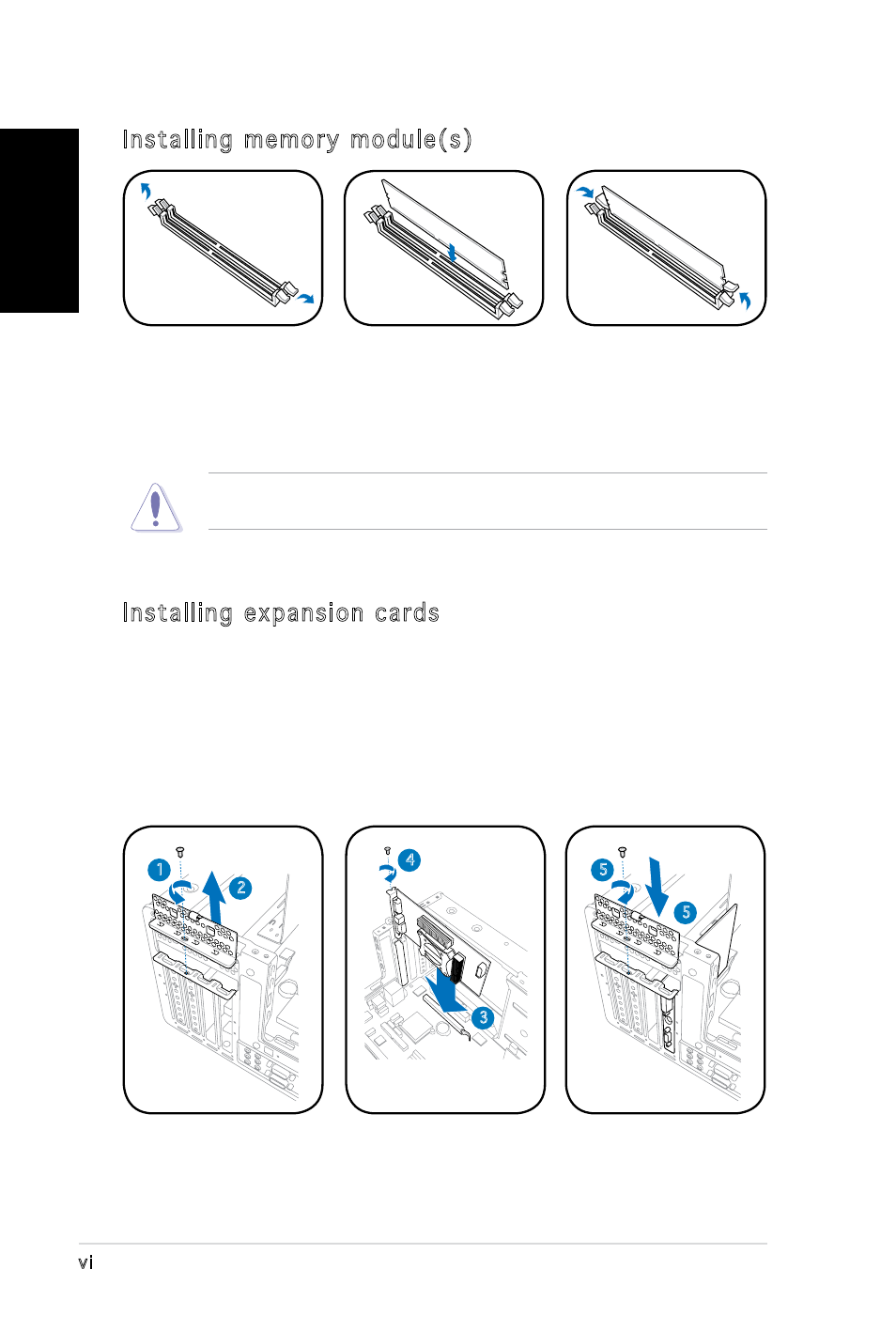

Installing memory module(s)
1. Press the
retaining clips of
the DIMM socket
outward.
2. Align a DIMM on
the socket.
3. Insert the DIMM
firmly to the
socket until the
retaining clips snap
back in place.
CAUTION! A DDR DIMM is keyed with a notch so that it fits in only one
direction. Do not force a DIMM into a socket to avoid damaging the DIMM!
Installing expansion cards
1. Locate and remove one metal bracket lock screw.
2. Remove the metal bracket lock.
3. Align the card connector with the slot, then press firmly.
4. Secure the card with one screw.
5. Replace the metal braket lock, then secure it with one screw.
1
2
3
4
5
5
