3. Intel ® H61 Serial ATA 3.0Gb/s connectors (7-pin SATA3G_1~4)
These connectors connect to Serial ATA 3.0 Gb/s hard disk drives and optical drives via
Serial ATA 3.0 Gb/s signal cables.
• You must install Windows ® XP Service Pack 3 or later version before using Serial ATA
hard disk drives.
• Due to H61 Chipset limitation, AHCI Mode only works on Windows ® Vista / Windows ®
7. Please use IDE Mode on Windows ® XP.
• To configure the SATA type in BIOS, click Advanced Mode > Advanced tab > SATA
Configuration > SATA Mode Selection. See section 2.5.3 SATA Configuration for
details.
• When using hot-plug and NCQ on Windows ® Vista / Windows ® 7, set the SATA Mode
Selection item in the BIOS to [AHCI]. See section 2.5.3 SATA Configuration for
details.
SATA3G_1
GND
RSATA_RXP1
RSATA_RXN1
GND
RSATA_TXN1
RSATA_TXP1
GND
SATA3G_3
GND
RSATA_RXP3
RSATA_RXN3
GND
RSATA_TXN3
RSATA_TXP3
GND
SATA3G_2
GND
RSATA_RXP4
RSATA_RXN4
GND
RSATA_TXN4
RSATA_TXP4
GND
SATA3G_4
GND
RSATA_RXP2
RSATA_RXN2
GND
RSATA_TXN2
RSATA_TXP2
GND
H61M-F

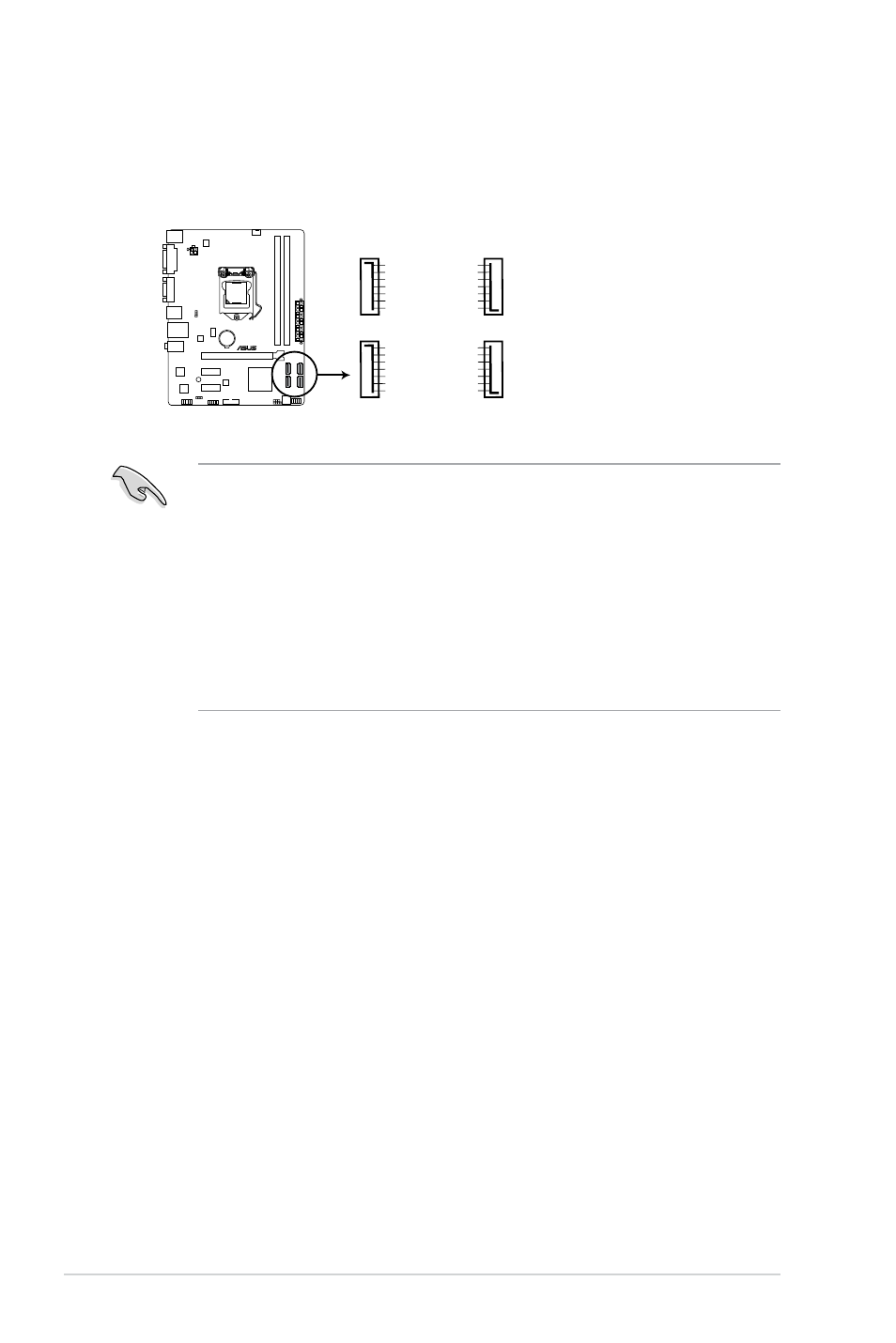

H61M-F Intel ® SATA 3.0Gb/s connectors
