ASUS RS720Q-E7/RS12, RS724Q-E7/RS12, RS726Q-E7/RS12

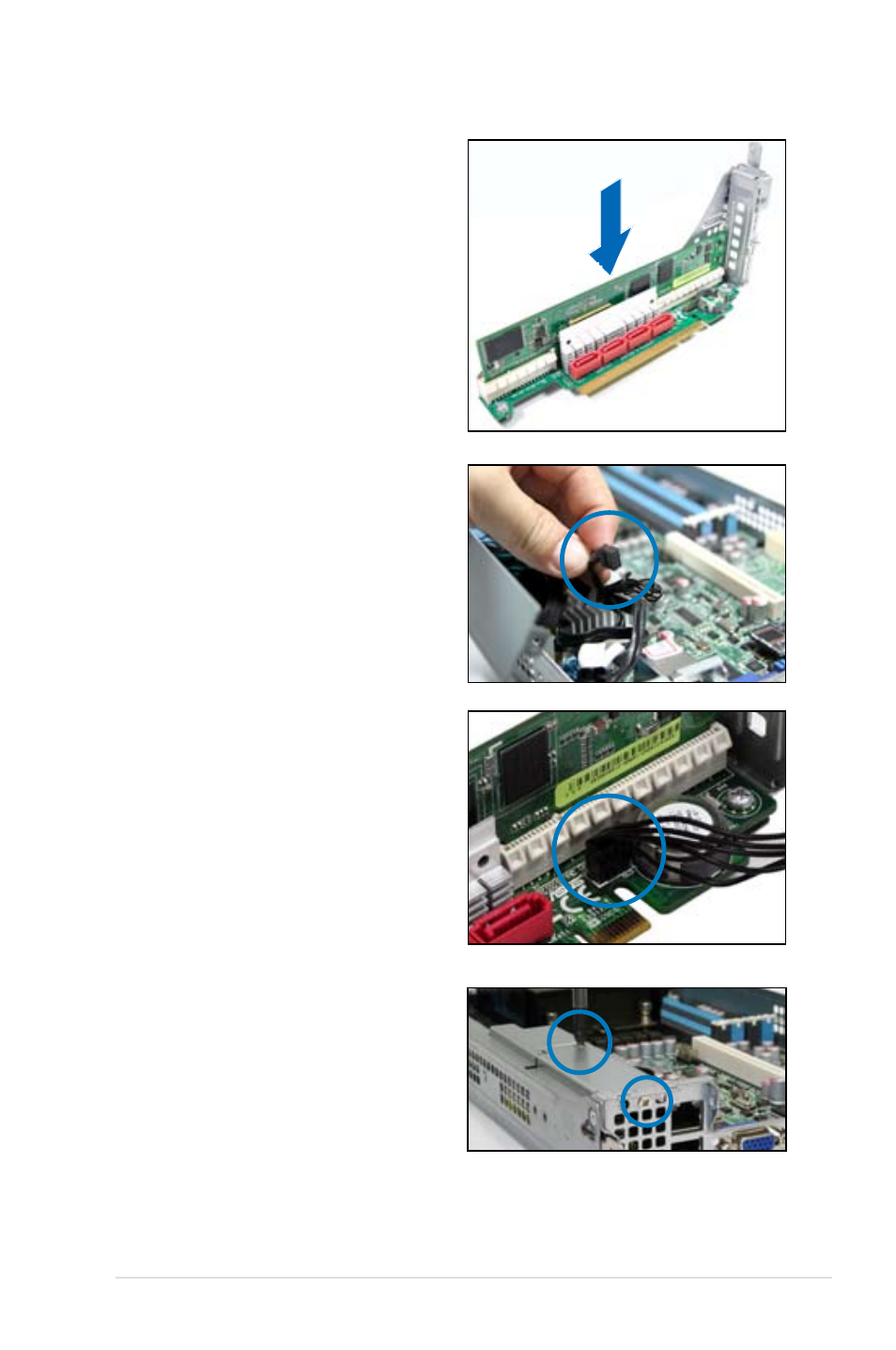

6. Align and insert the golden fingers
of the PIKE SAS RAID card into
the card slot on the PIKE raiser
card. Ensure the card is completely
seated on the slot.
7. Locate the SGPIO connector on
the side of the server chassis.
8. Connect the SGPIO cable to the
SGPIO connector on the PIKE
Riser card.
9. Remove the two (2) screws that
secures the metal plate covering the
SATA and ISAS connectors.
