Chapter 1: Product introduction 1-6

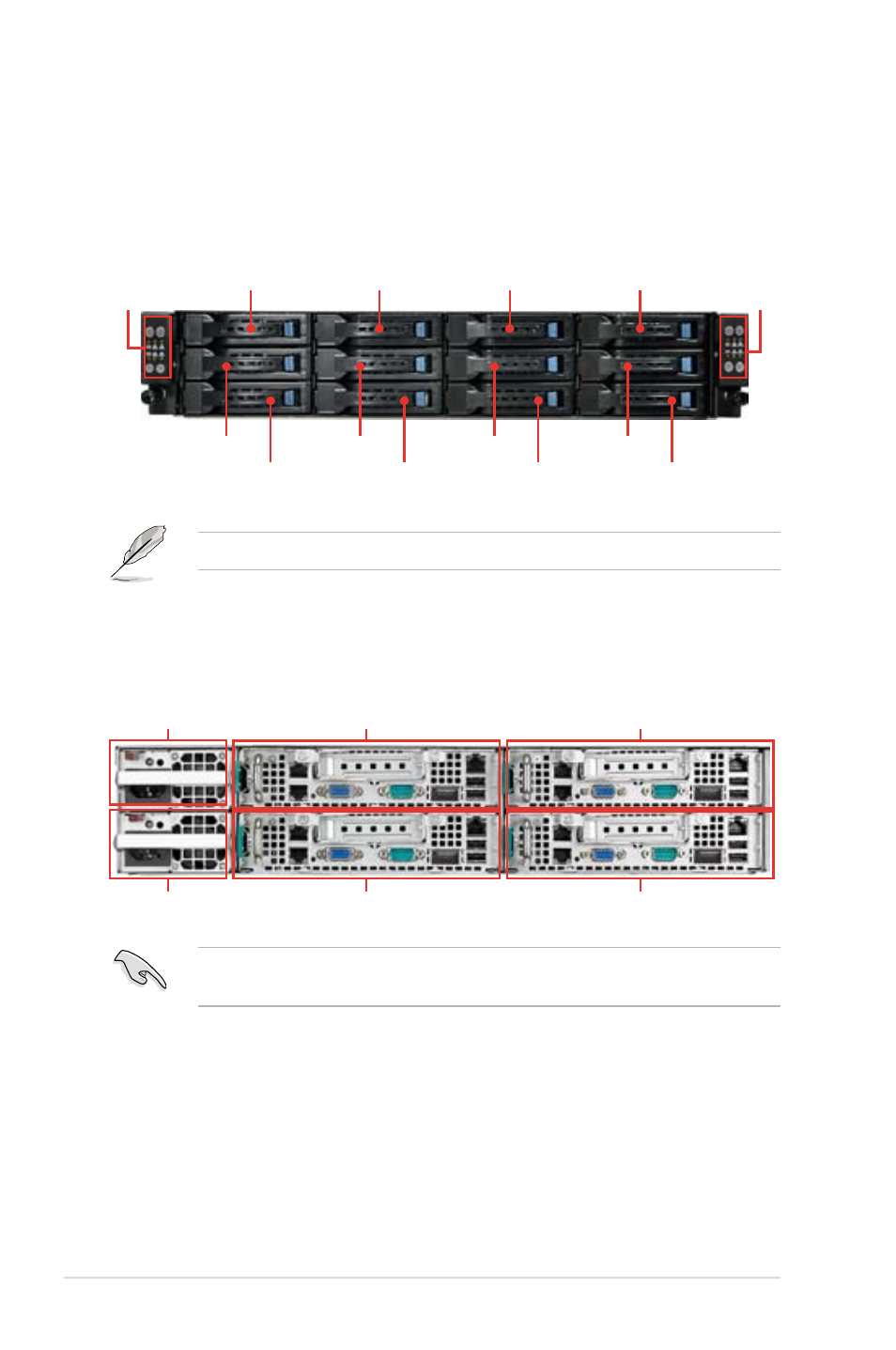

1.4 Front panel features
The barebone server displays a simple yet stylish front panel with easily accessible
features. The power and reset buttons, LED indicators, optical drive, and two USB
ports are located on the front panel.
Refer to section 1.7.1 Front panel LEDs for the LED descriptions.
Front panel
Node 2
Node 1
Front panel
Node 4
Node 3
HDD 1 (Node 1)
HDD 2 (Node 1)
HDD 3 (Node 1)
HDD 1 (Node 2) HDD 1 (Node 3) HDD 1 (Node 4)
HDD 2 (Node 2)
HDD 3 (Node 2)
HDD 2 (Node 3)
HDD 3 (Node 3)
HDD 2 (Node 4)
HDD 3 (Node 4)
1.5 Rear panel features
PSU 1 Node 3 Node 1
Node 4 Node 2 PSU 2
When installing only two nodes, install the nodes to node slot number 1 and 3 or
number 2 and 4.
