E-SATA

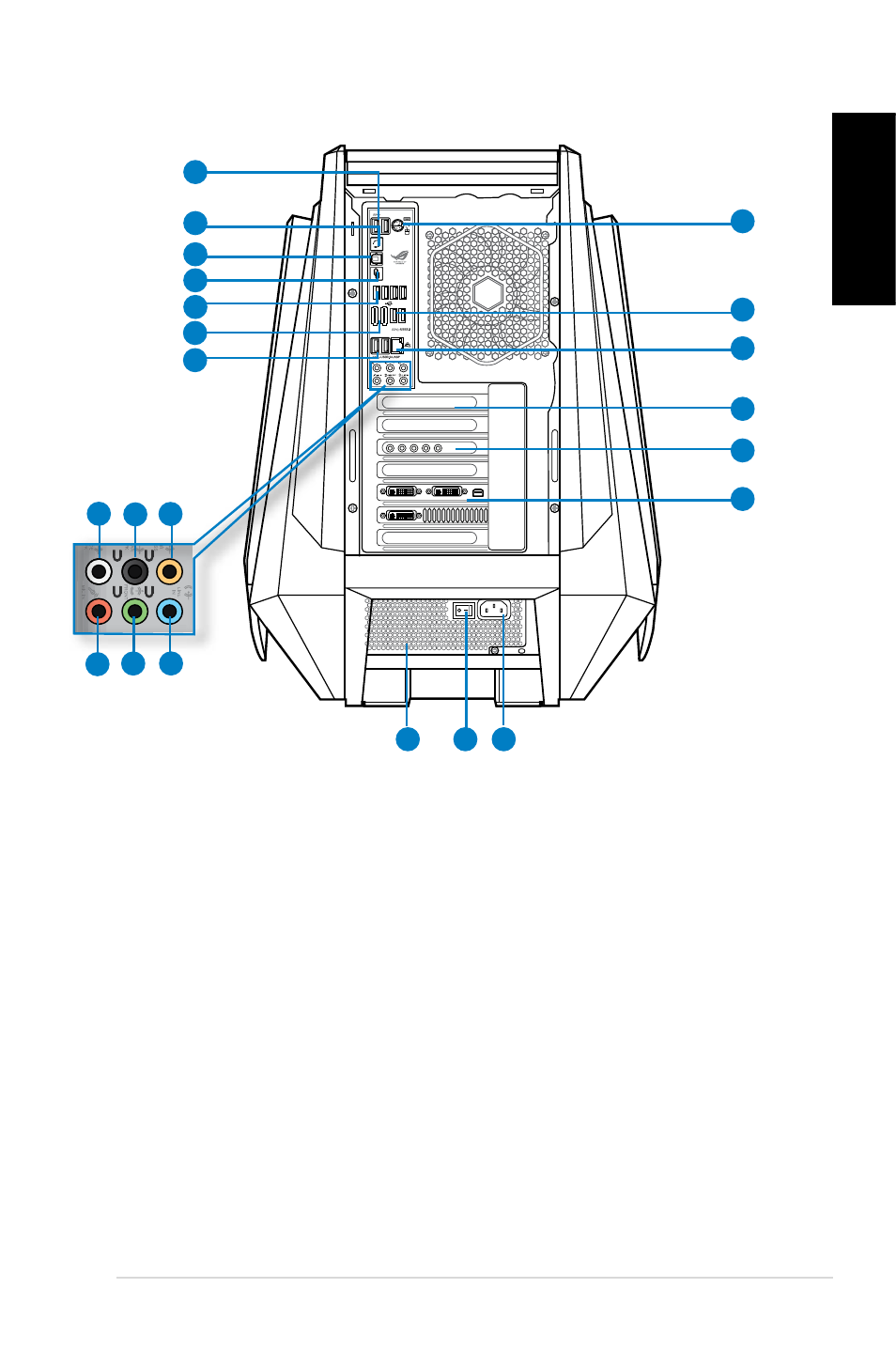

Rear panel
21 20
13 12
10 11 9
14
22
1. USB 2.0 ports. USB 2.0 ports. These Universal Serial Bus .0 (USB .0) ports connect to USB .0
devices such as a mouse, printer, scanner, camera, PDA, and others.
2. Clear CMOS switch. Press the Clear CMOS switch to clear BIOS setup information
only when the system hangs due to overclocking.
3. Optical S/PDIF_OUT port. This port connects to an external audio output device via
an optical S/PDIF cable.
4. ROG Connect switch. Allows you to monitor and adjust the local PC through your
remote PC.
5. USB 2.0 ports. These Universal Serial Bus .0 (USB .0) ports connect to USB .0
devices such as a mouse, printer, scanner, camera, PDA, and others.
6. USB 3.0 ports, support ASUS USB 3.0 Boost UASP Mode. These Universal Serial
Bus .0 (USB .0) ports connect to USB .0 devices such as a mouse, printer,
scanner, camera, PDA, and others.
3
6
4
5
2
7
8
16
17
15
18
19
