ASUS P8H67-I 1-16
Never connect a 1394 cable to the USB connector. Doing so will damage the motherboard!
The USB module cable is purchased separately.

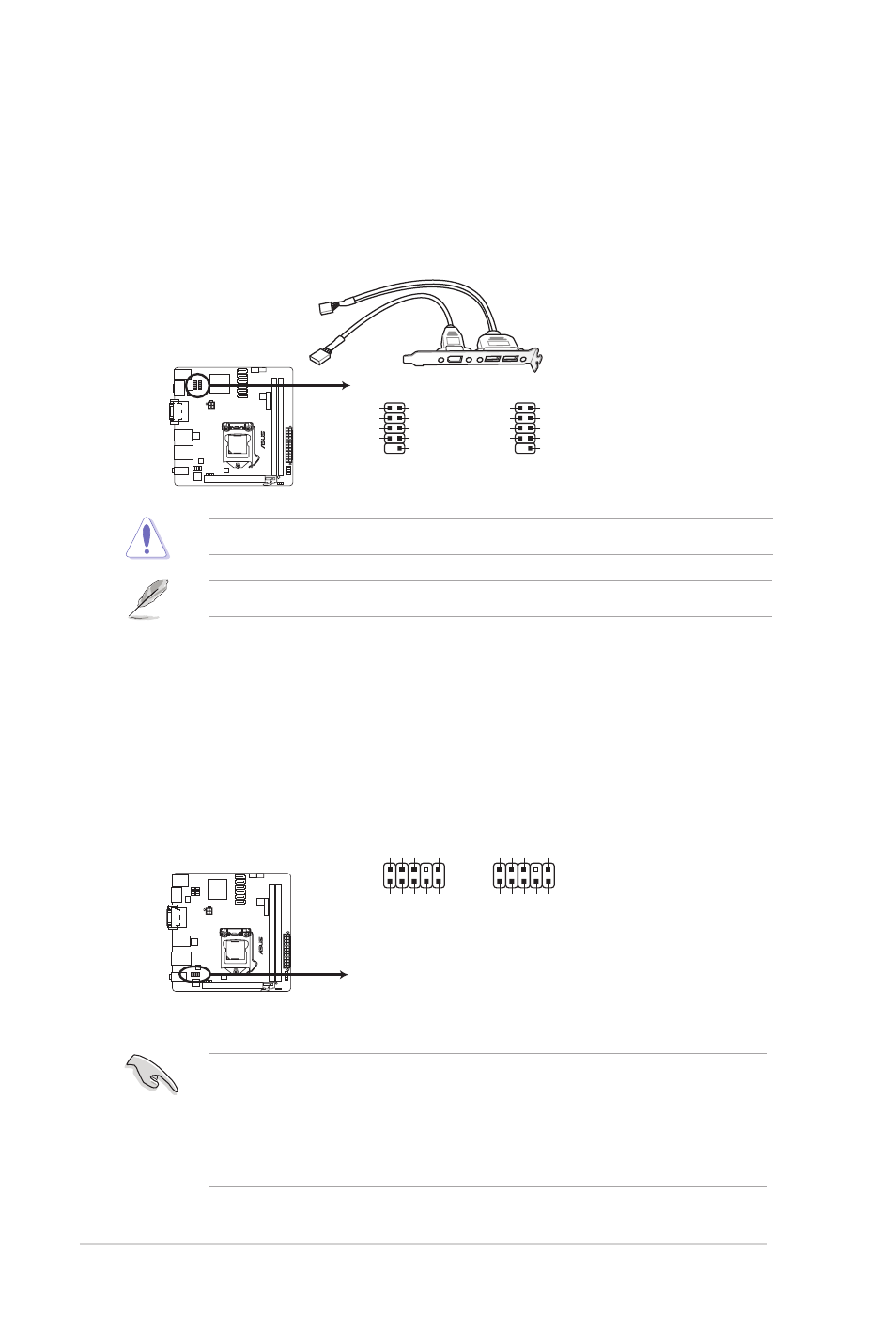

7. USB 2.0 connector (10-1 pin USB910, USB1112)
This connector is for a USB 2.0 port. Connect the USB module cable to this connector,
then install the module to a slot opening at the back of the system chassis. This USB
connector complys with USB 2.0 specification that supports up to 480 Mbps connection
speed.
P8H67-
I
P8H67-I USB2.0 connectors
PIN 1
USB+5V
USB_P8-
USB_P8+
GND
NC USB+5V
USB_P7-
USB_P7+
GND
USB1112
PIN 1
USB+5V
USB_P10-
USB_P10+
GND
NC USB+5V
USB_P9-
USB_P9+
GND
USB910
8. Front panel audio connector (10-1 pin AAFP)
This connector is for a chassis-mounted front panel audio I/O module that supports
either HD Audio or legacy AC`97 audio standard. Connect one end of the front panel
audio I/O module cable to this connector.
• We recommend that you connect a high-definition front panel audio module to this
connector to avail of the motherboard’s high-definition audio capability.
• If you want to connect a high-definition front panel audio module to this connector, set
the Front Panel Type item in the BIOS setup to [HD]. If you want to connect an AC'97
front panel audio module to this connector, set the item to [AC97]. By default, this
connector is set to [HD]. See section 2.5.6 Onboard Devices Configuration for details.
P8H67-
I
P8H67-I Front panel audio connector
AAFP
PIN 1
GN
D
PRESENCE# SENSE1_RETUR SENSE2_RETUR
PORT1
L
PORT1
R
PORT2
R
SENSE_SEND
PORT2
L
HD-audio-compliant
pin definition
PIN 1
AGND NC NC NC
MIC
2
MICPWR
Line out_
R
NC
Line out_L
Legacy AC’97
compliant definition
