5 .

C P U , c h a s s i s , p o w e r , a n d c h i p s e t f a n c o n n e c t o r s ( 3 - p i n

C P U , c h a s s i s , p o w e r , a n d c h i p s e t f a n c o n n e c t o r s ( 3 - p i n
C P U _ F A N , 3 - p i n C H A 1 _ F A N , 3 - p i n C H A 2 _ F A N , 3 - p i n

C P U _ F A N , 3 - p i n C H A 1 _ F A N , 3 - p i n C H A 2 _ F A N , 3 - p i n

C P U _ F A N , 3 - p i n C H A 1 _ F A N , 3 - p i n C H A 2 _ F A N , 3 - p i n
P W R _ F A N , 3 - p i n C H I P _ F A N ) )

P W R _ F A N , 3 - p i n C H I P _ F A N ) )

These fan connectors support cooling fans of 350 mA ~ 2000 mA (24
W max.) or a total of 1 A ~ 3.48 A (41.76 W max.) at +12 V. Connect
the fan cable to the fan connector on the motherboard, making sure
that the black wire of each cable matches the ground pin of the
connector.

The chipset fan connector is for the NVIDIA

nForce™4 SLI chipset.

Connect the fan cable to the fan connector on the motherboard.

Do not forget to connect the fan cables to the fan connectors.
Insufficient air flow inside the system may damage the motherboard
components. These are not jumpers! DO NOT place jumper caps on the
fan connectors.

A8N-SLI

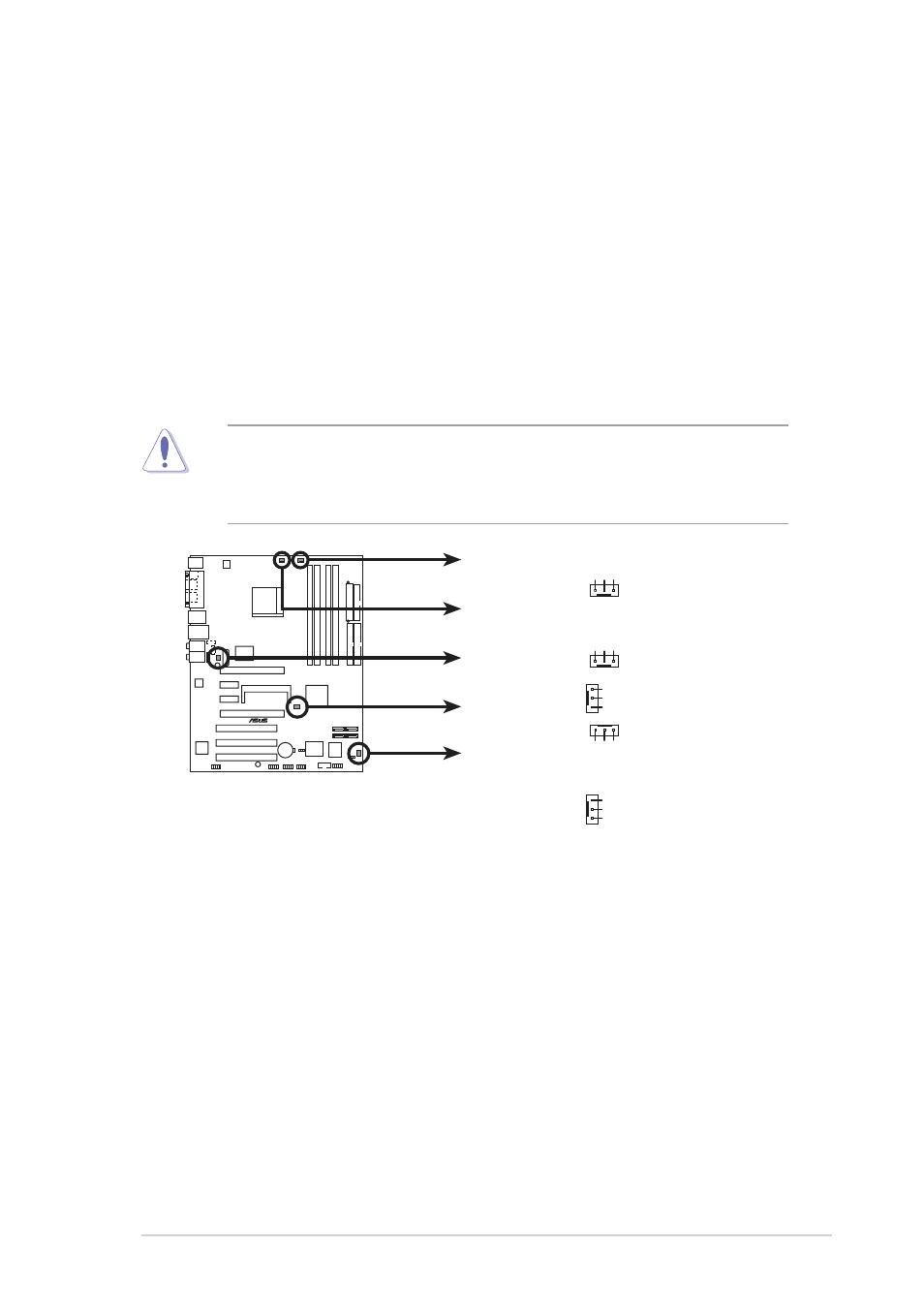

A8N-SLI Fan connectors

CPU_FAN

CHA1_FAN

PWR_FAN

CHA2_FAN

GND

Rotation

+12V

GND

Rotation

+12V

GND

Rotation

+12V

GND

Rotation

+12V

CPU_FAN

CHA1_FAN

PWR_FAN

CHA2_FAN

CHIP_FAN

GND

Rotation +12V

CHIP_FAN
