1 Chapter 1: System introduction
English
1.1 Front panel
The ASUS BS5000/M5100 Desktop PC includes an ASUS motherboard, a power
supply unit, a front panel, and a rear panel. All of these components are integrated
in a system casing elaborately designed by ASUS.

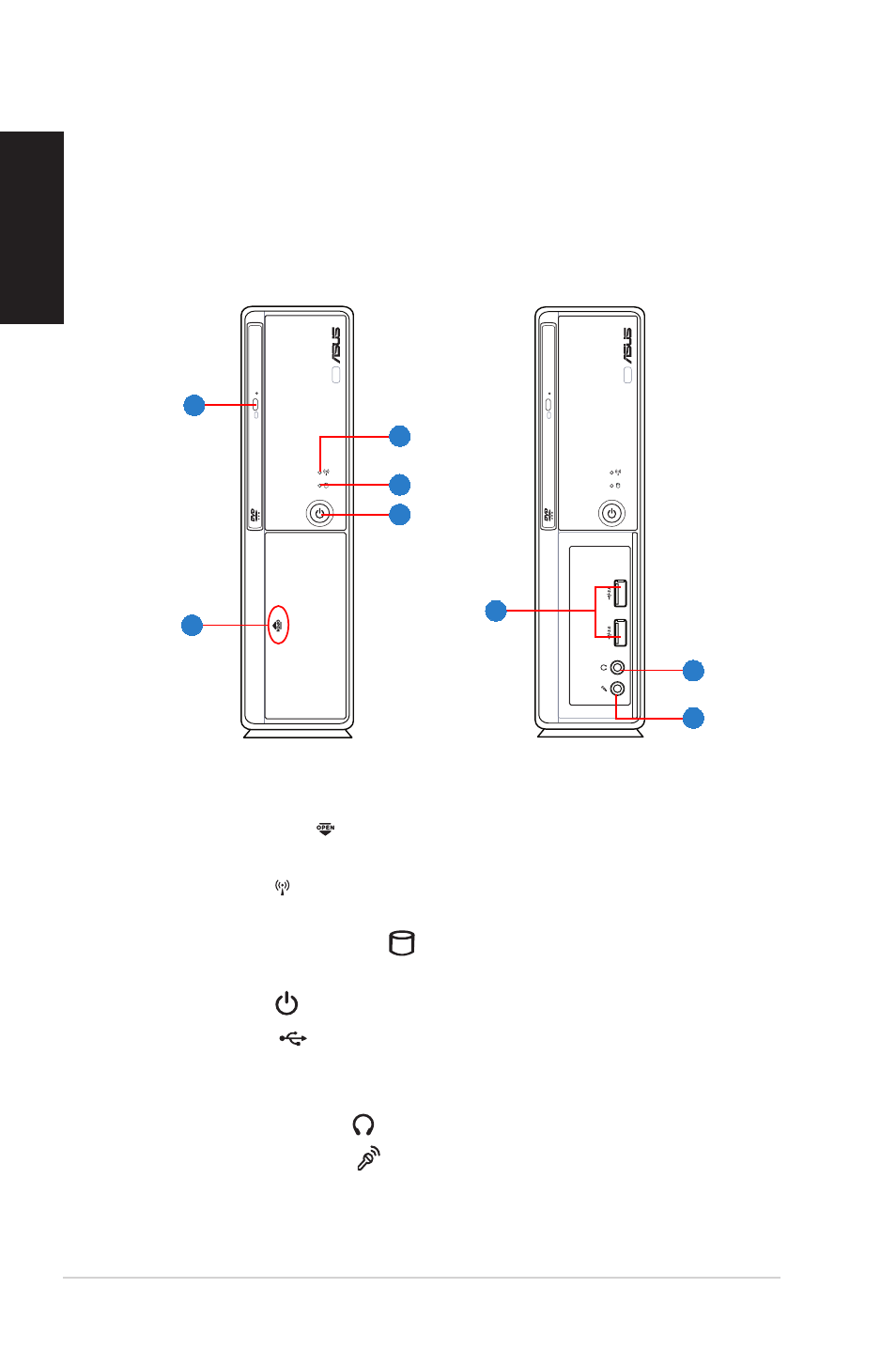

The illustrations below show the front panel and the components on it.
4
2
1
3
5
7
8
6
Close
Open
1. Optical disk drive (ODD) eject button. Press this button to eject the optical
disk drive.
2. Front panel cover . Pull outward to open the front panel cover. Inside are
two USB .0 ports, one Microphone port, and one Headphone port.
3. Network LED . This LED lights up when a wireless/wired network
connection is established on the system.
4. Hard disk drive (HDD) LED . This LED lights up when data is being read
from or written to the hard disk drive.
5. Power button . Press this button to turn the system on.
6. USB 2.0 ports
2.0. These Universal Serial Bus .0 (USB .0) ports are
available for connecting USB .0 devices such as a mouse, printer, scanner,
camera, PDA, and others.
7. Headphone port (lime) . This port connects a headphone.
8. Microphone port (pink) . This port connects a microphone.
