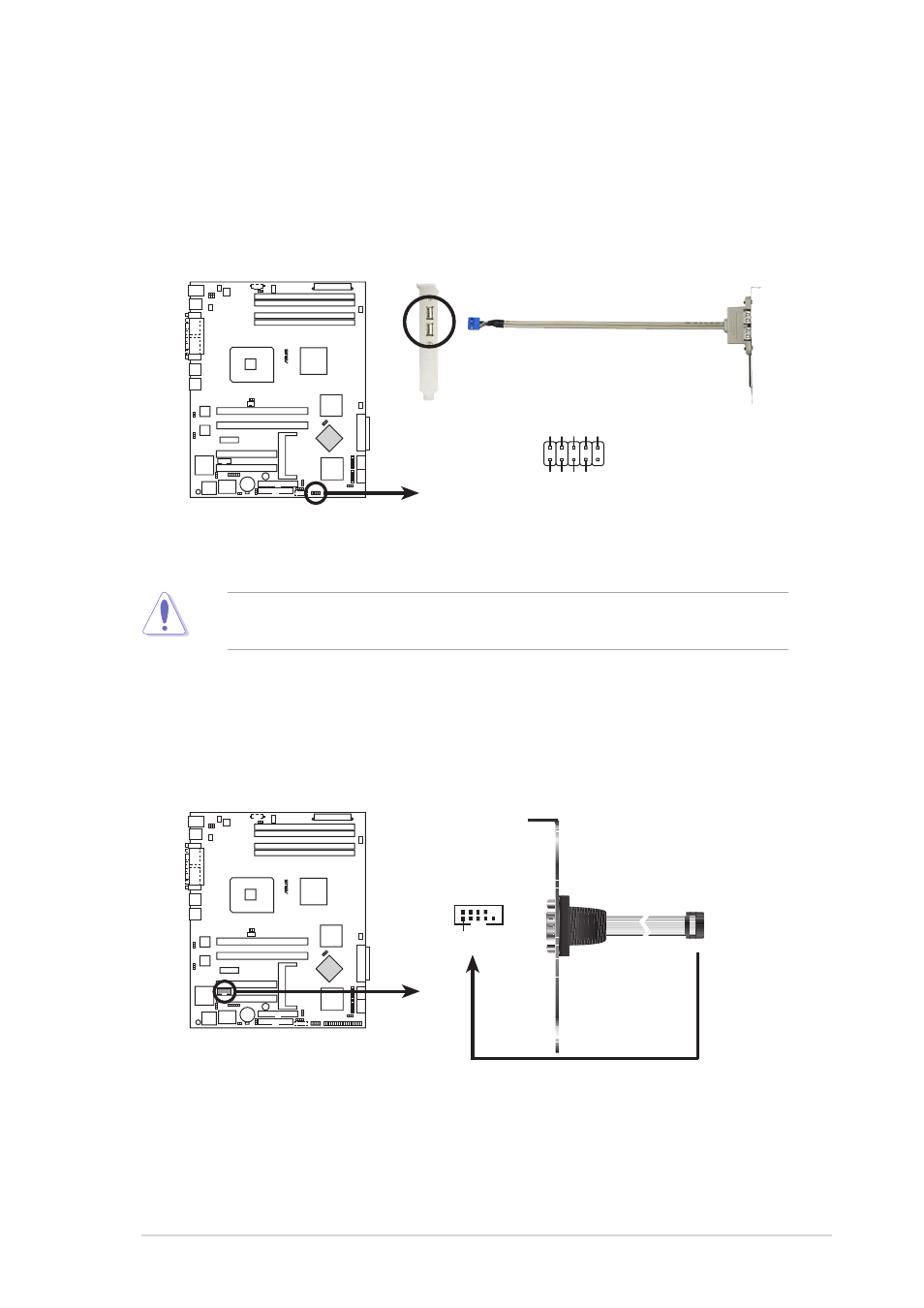

7 . 7 . 7 . 7 . 7 . U S B c o n n e c t o r ( 1 0 - 1 p i n U S B 3 4 ) U S B c o n n e c t o r ( 1 0 - 1 p i n U S B 3 4 ) U S B c o n n e c t o r ( 1 0 - 1 p i n U S B 3 4 ) U S B c o n n e c t o r ( 1 0 - 1 p i n U S B 3 4 ) U S B c o n n e c t o r ( 1 0 - 1 p i n U S B 3 4 )
This connector is for USB 2.0 ports. Connect the USB module cable to
this connector, then install the module to a slot opening at the back
of the system chassis. The USB connector complies with USB 2.0
specification that supports up to 480 Mbps connection speed.
Never connect a 1 3 9 4 c a b l e 1 3 9 4 c a b l e 1 3 9 4 c a b l e 1 3 9 4 c a b l e 1 3 9 4 c a b l e to the USB connectors. Doing so will
damage the motherboard!
P5CR-LS
®
USB+5V USB_P3- USB_P3+ GND NC
P5CR-L(S) USB 2.0 connector
USB34
USB+5V USB_P2- USB_P2+
GND
8 . 8 . 8 . 8 . 8 . S e r i a l p o r t c o n n e c t o r ( 1 0 - 1 p i n C O M 2 ) S e r i a l p o r t c o n n e c t o r ( 1 0 - 1 p i n C O M 2 ) S e r i a l p o r t c o n n e c t o r ( 1 0 - 1 p i n C O M 2 ) S e r i a l p o r t c o n n e c t o r ( 1 0 - 1 p i n C O M 2 ) S e r i a l p o r t c o n n e c t o r ( 1 0 - 1 p i n C O M 2 )
This connector is for a serial (COM2) port. Connect the serial port
module cable to this connector, then install the module to a slot
opening at the back of the system chassis.
P5CR-LS
®
P5CR-L(S)
Serial port2 (COM2) connector
PIN 1
COM2
