2-16

Chapter 2: Basic installation

2.6.2

Installing / Uninstalling a card reader / a floppy disk

drive

Installing a card reader

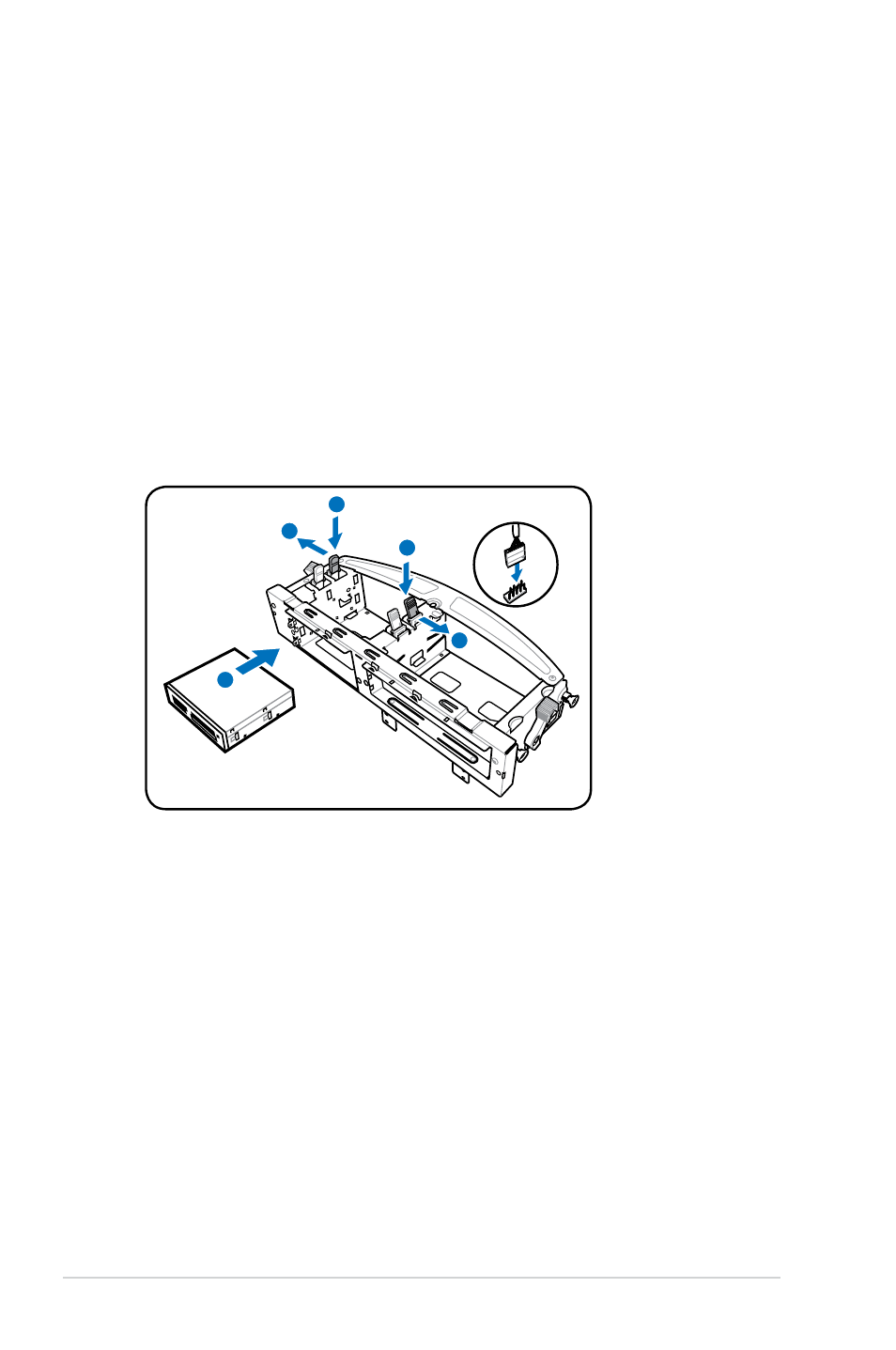

To install a card reader:

1. Insert the card reader to the 3.5 inch drive bay and carefully push the card

reader until its screw holes are aligned with the holes on the supporting

stand.

2. Pull the retention brackets on both sides of the bay outward and align the

hard disk to the retention brackets.

3. Press the retention bracket locks until they are parallel to the card reader.
4. Connect the power cable and the signal cable..

Installing a floppy disk drive

Follow the same instructions as shown in the section of “Installing a card reader“ to

install a floppy disk drive.
