ASUS RS120-E4/PA2 1-

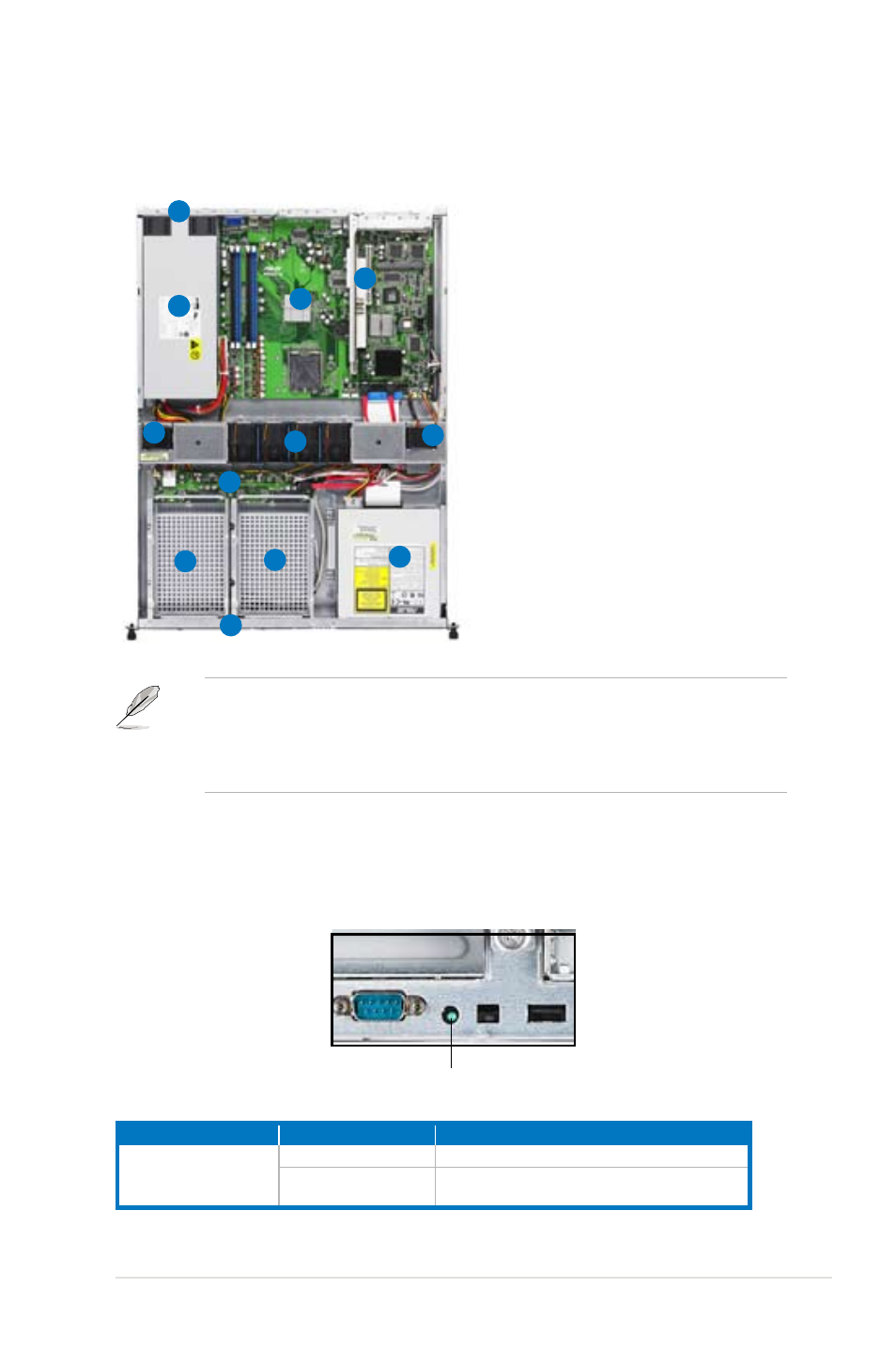

1.5 Internal features
The barebone server includes the basic components as shown.
1. PCI-X and PCI Express x8
riser card bracket
2. Power fans
3. ASUS P5M2-R motherboard
4. Power supply
5. Device fans (x 2)
6. System fans (x 4)
7. SATA backplane
8. Hot-swap HDD tray 1 -
Connects to SATA1 port
(Port0)
9. Hot-swap HDD tray 2 -
Connects to SATA3 port
(Port2)
10. Front I/O board (hidden)
11. Optical drive
• The barebone server does not include a floppy disk drive. Connect a USB
floppy disk drive to any of the USB ports on the front or rear panel if you
need to use a floppy disk.
• Only ASUS CD/DVD-ROMs fit the optical drive bay.
1
2
3
4
6
5 5
7
11
8 9
10
1.6 LED information
1.6.1 Rear panel LEDs
Location LED
LED Display status Description
Location LED
OFF Normal status
ON
Location switch is pressed
(Press the location switch again to turn off)
