Installing an expansion card

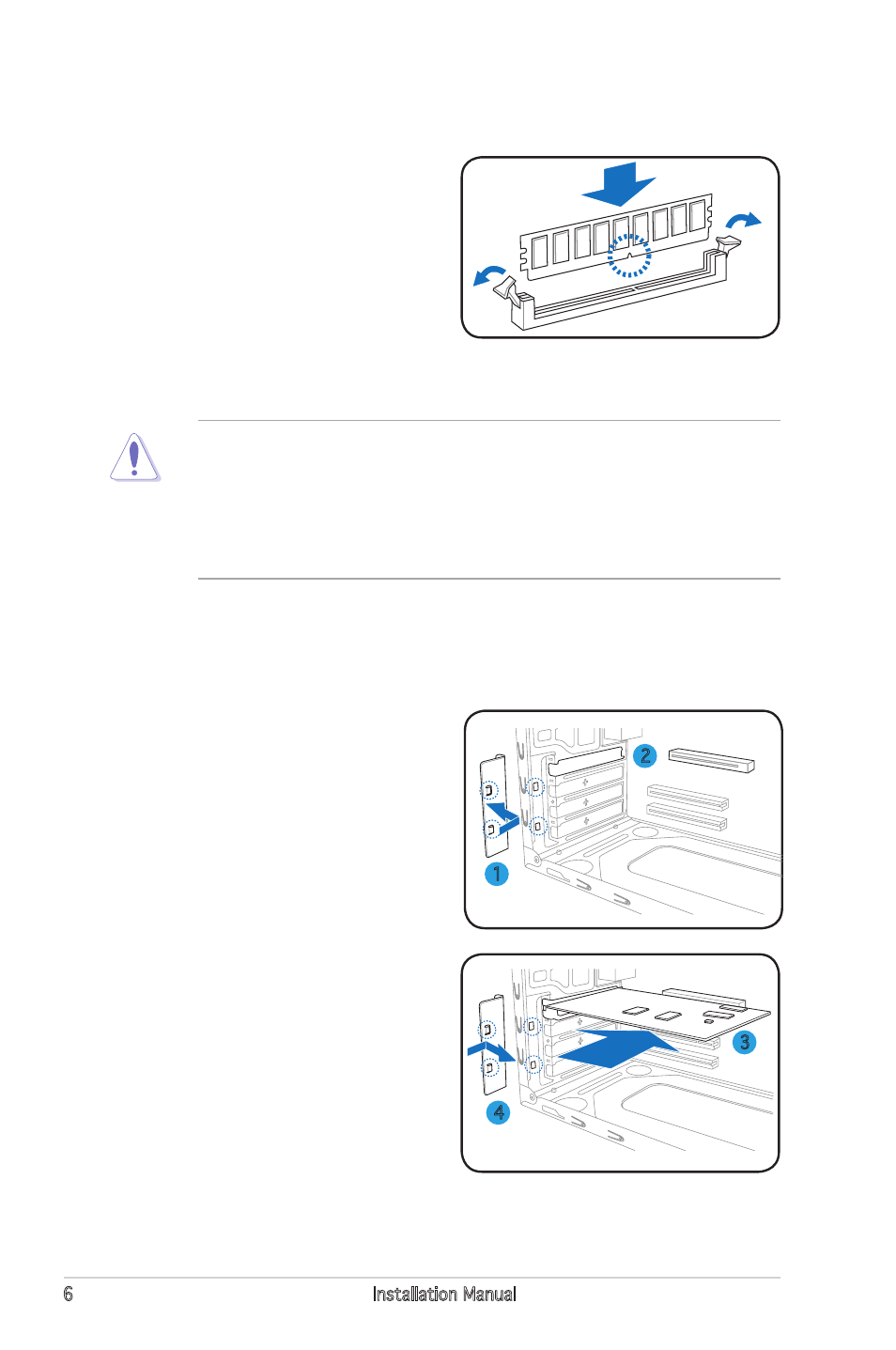

Installing a DIMM
1. Locate the DIMM sockets in the
motherboard.
. Unlock a DIMM socket by
pressing the retaining clips
outward.
3. Align a DIMM on the socket such
that the notch on the DIMM
matches the break on the socket.
4. Push the DIMM to the socket until the retaining clips snap inward.
• Unplug the power supply before adding or removing DIMMs.
Failure to do so may cause damage to the motherboard and/or
components.
• A DDR2 DIMM is keyed with a notch so that it fits in only one
direction. Do not force a DIMM into a socket to avoid damaging the
DIMM.
1. Remove the metal bracket lock.
. Remove the metal cover opposite
the slot that you intend to use.
3. Insert the card connector to the
slot, then press the card firmly
until it fits in place.
4. Replace the metal bracket lock. 3
