4-7 ASUS T-P5P43

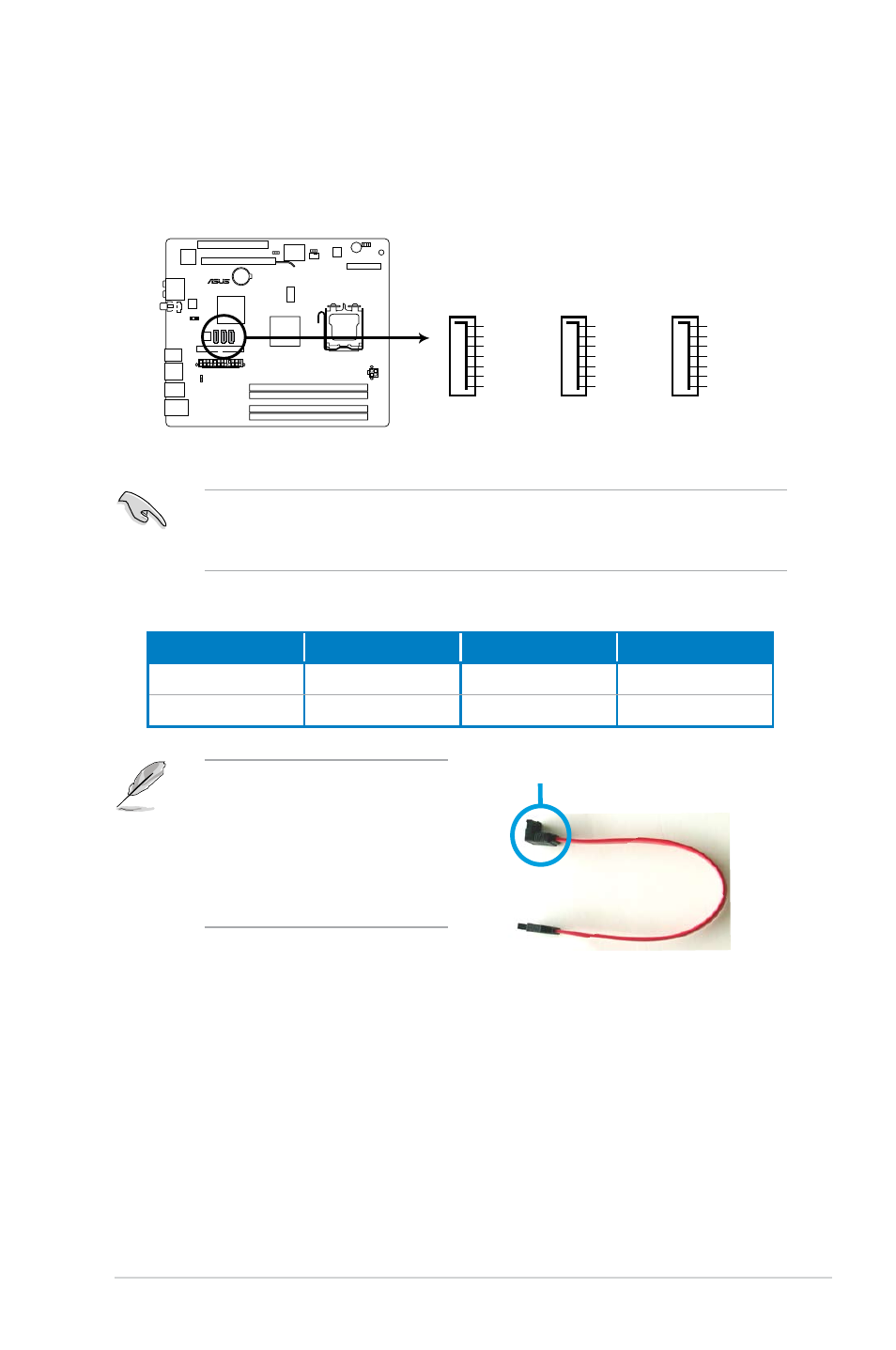

4. Serial ATA connectors (7-pin SATA1, SATA2, SATA3)
These connectors are for the Serial ATA signal cables for Serial ATA hard disk
drives.
When using the connectors in Standard IDE mode, connect the primary (boot)
hard disk drive to the SATA1/3 connector. Refer to the table below for the
recommended SATA hard disk drive connections.
Connect the right-angle side
of SATA signal cable to SATA
device. Or you may connect the
right-angle side of SATA cable to
the onboard SATA port to avoid
mechanical conflict with huge
graphics cards.
right angle side
Serial ATA hard disk drive connection
Connector Color Setting Use
SATA1/3 Red Master Boot disk
SATA2 Black Slave Data Disk
P5Q18L
SATA3
GND
RSATA_RXN3
RSATA_RXP3
GND
RSATA_TXN3
RSATA_TXP3
GND
SATA2
GND
RSATA_RXN2
RSATA_RXP2
GND
RSATA_TXN2
RSATA_TXP2
GND
SATA1
GND
RSATA_RXN1
RSATA_RXP1
GND
RSATA_TXN1
RSATA_TXP1
GND
P5Q18L SATA connectors (ICH10 ® )
