36
3. HARDWARE SETUP
ASUS TR-DLSR User’s Manual
3. H/W SETUP
Connectors
15) Power Button Connector (PWRBTN)
This connector allows you to turn the system ON or OFF. The power LED
lights up when the system is turned ON.

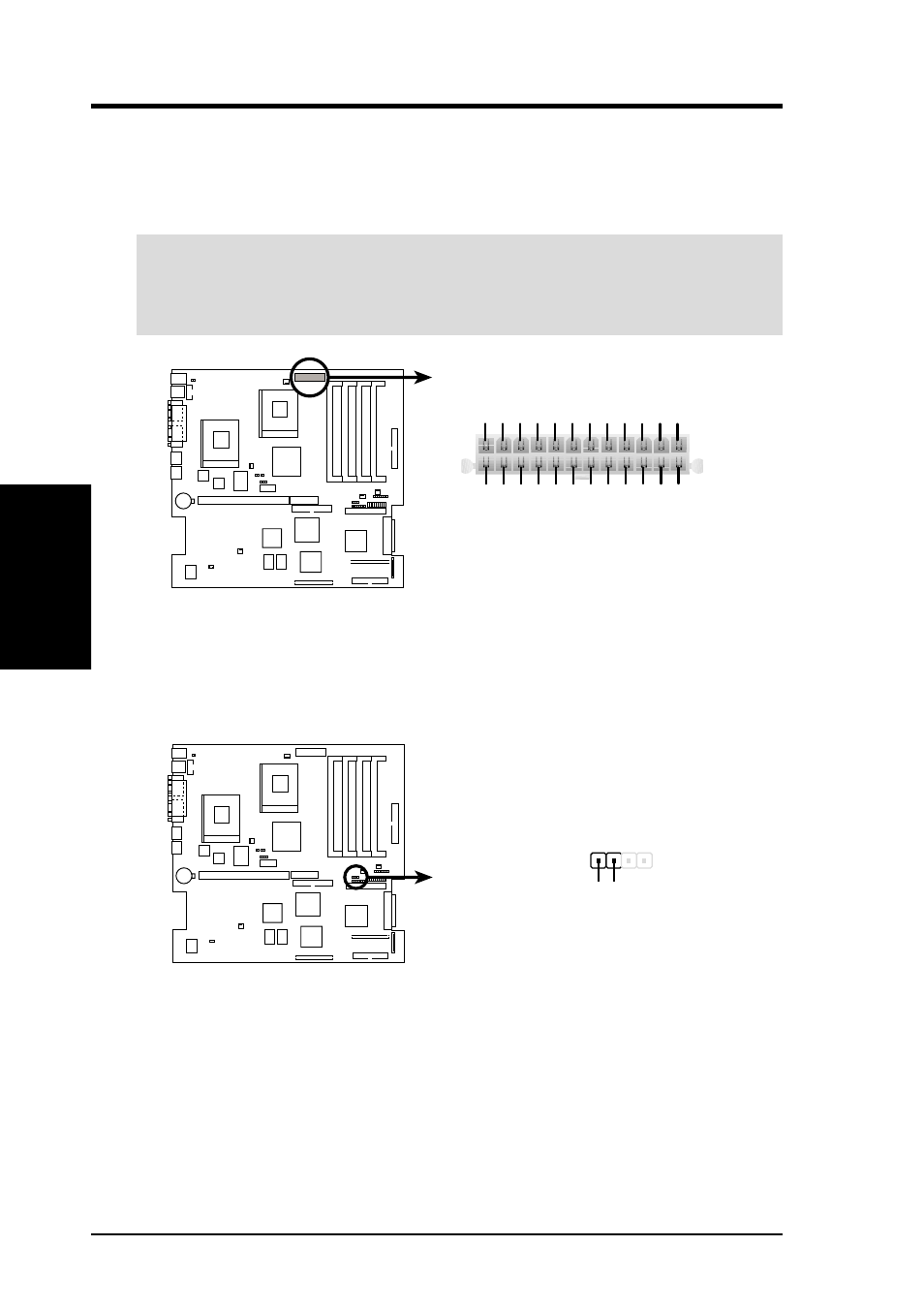

14) ATX Power Connector (20/24-pin block ATXPWR)
This connector connects to an ATX power supply. The plug from the power supply
fits in only one orientation because of the different hole sizes. Find the proper
orientation and push down firmly making sure that the pins are aligned.
IMPORTANT: Make sure that your ATX power supply can supply at least 720mA
on the +5-volt standby lead (+5VSB). You may experience difficulty in turning
ON your system if your power supply cannot support the load.
TR-DLSR
TR-DLSR ATX Power Connector
+3 V
o
lts
+3 V
o
lts
Ground +5 V
olts
+5 V
o
lts
Ground Ground
Power OK
+5V Standby
+12 V
o
lts
-5 V
o
lts
+5 V
o
lts
+3 V
o
lts
-12 V
o
lts
Ground Ground Ground PSON# Ground +5 V
o
lts
+12 V
o
lts
+3 V
o
lts
+5 V
o
lts
1
Ground
TR-DLSR
TR-DLSR Power Button Connector
GND
PWRBTN#
1
PWRBTN
