30
3. HARDWARE SETUP
ASUS TR-DLSR User’s Manual
3. H/W SETUP

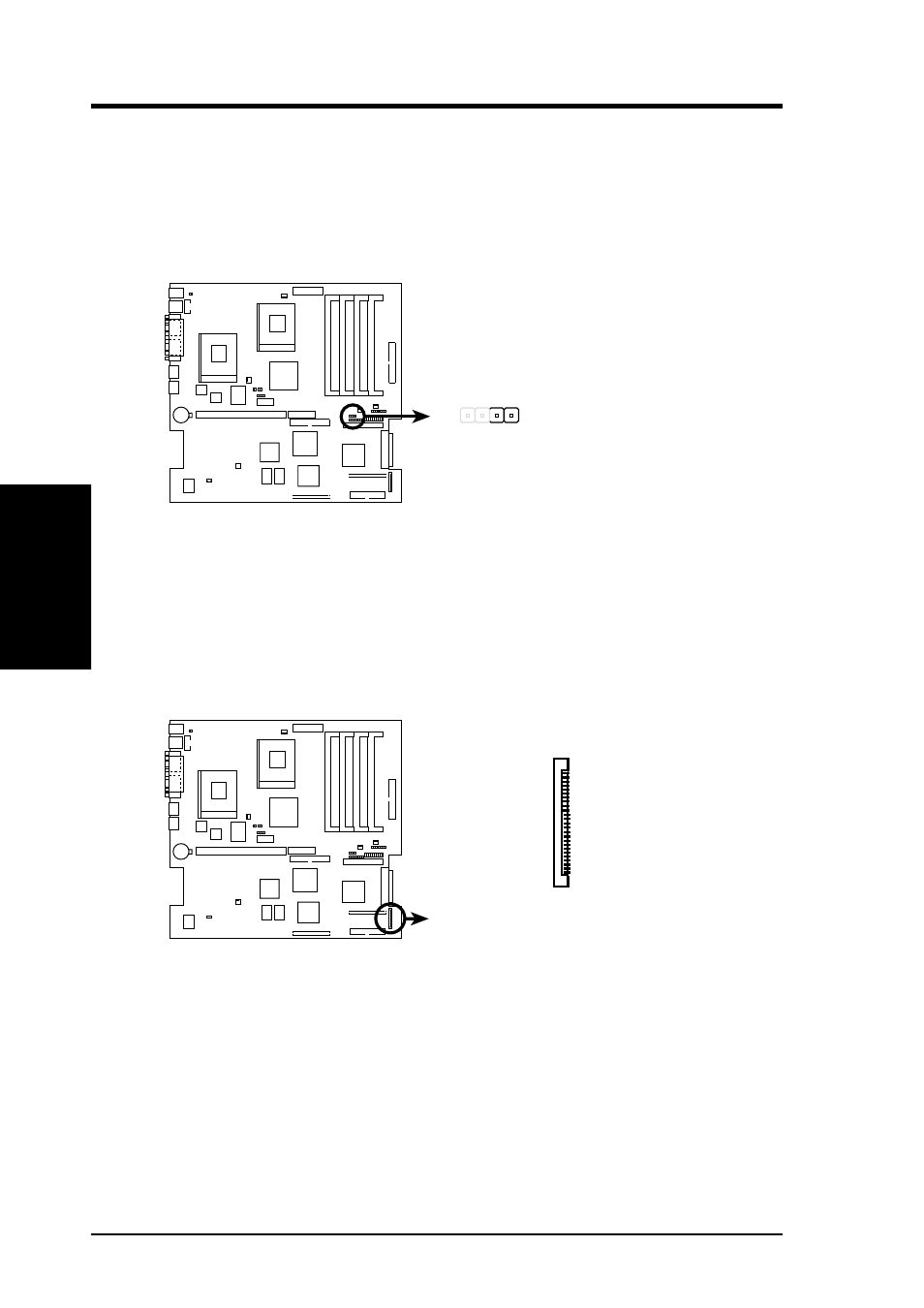

Connectors
2) IDE/SCSI Activity LED (2-pin IDELED)
This connector supplies power to the chassis activity LED. Read and write activity
by devices connected to the primary/secondary IDE and SCSI connectors cause
the LED to light up.
NOTE: Another 2-pin IDE LED connector is available in the connector
labeled PANEL.
TR-DLSR
TR-DLSR IDE Activity LED
*Same as the “HDD Access
LED” in the panel connectors
IDELED
+ -
3) Floppy Disk Drive Connector (34-1 pin FLOPPY)
This connector supports the provided floppy drive ribbon cable. After connecting
the single end to the board, connect the two plugs on the other end to the floppy
drives. (Pin 5 is removed to prevent inserting in the wrong orientation when
using ribbon cables with pin 5 plugged).
TR-DLSR
NOTE: Orient the red markings on
the floppy ribbon cable to PIN 1.
TR-DLSR Floppy Disk Drive Connector
PIN 1
