ASUS TR-DLSR User’s Manual 23
3. HARDWARE SETUP
3.6.2 Heatsink Installation
Follow these steps to install a CPU.

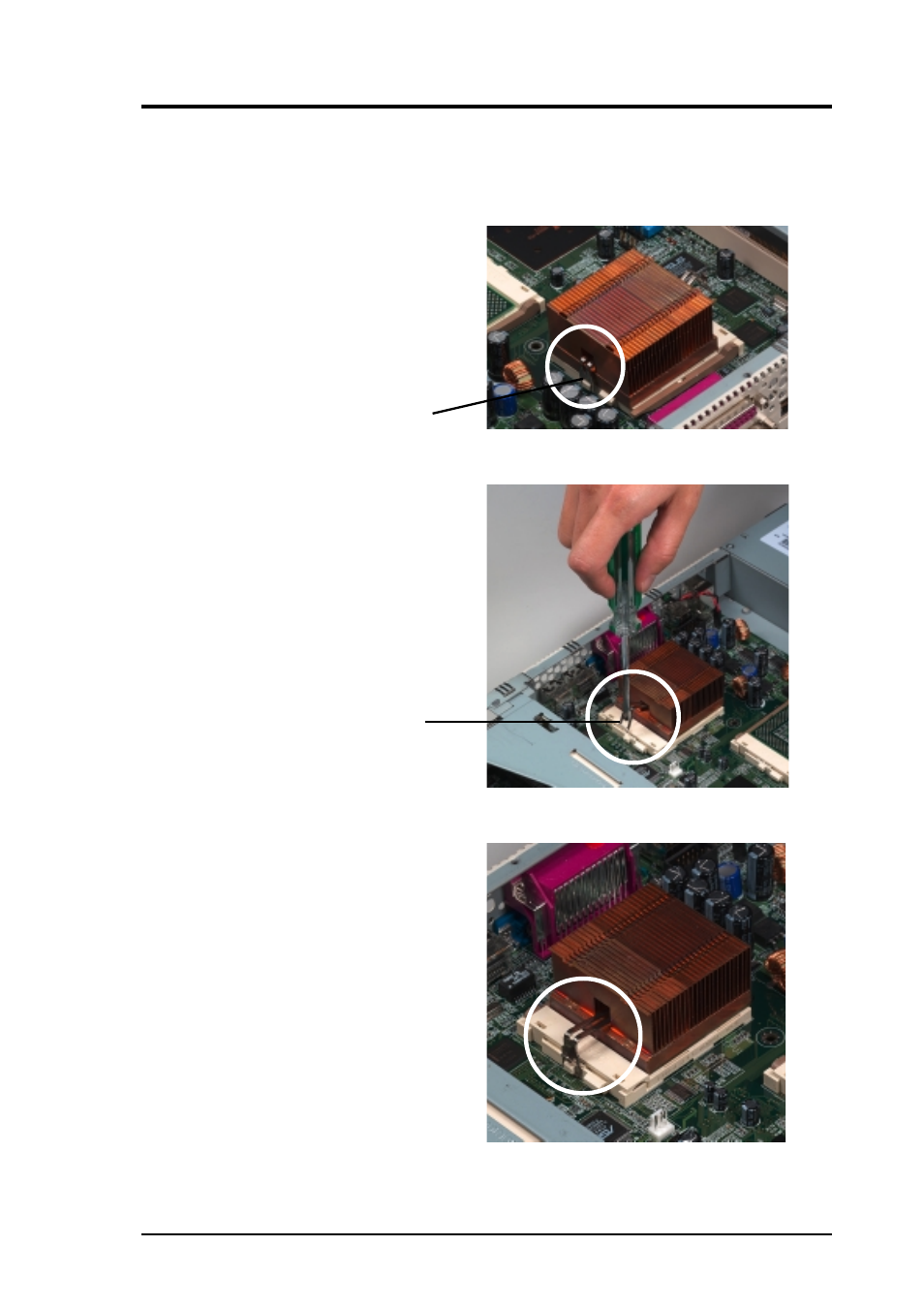

1. Carefully place the heatsink on top of
the installed CPU and hook one end of
the retaining clip to the protruding tab
on the front of the socket. (TIP: The
front part of the socket is where you find
the gold mark or notch on the CPU.)
2. Use a flat screwdriver to hook the other
end of the retaining clip to the
protruding tab at the back of the CPU
socket.
3. Check and make sure that the retaining
clip is properly in place.
Retaining Clip for the
Tab on the Front of
the Socket
Retaining Clip for the
Tab at the Back of the
Socket
