Chapter 3: Motherboard info

3.1

Introduction

The Vintage V6-P8H61ELX barebone system comes with an ASUS motherboard. This

chapter provides technical information about the motherboard for future upgrades or system

reconfiguration.

3.2

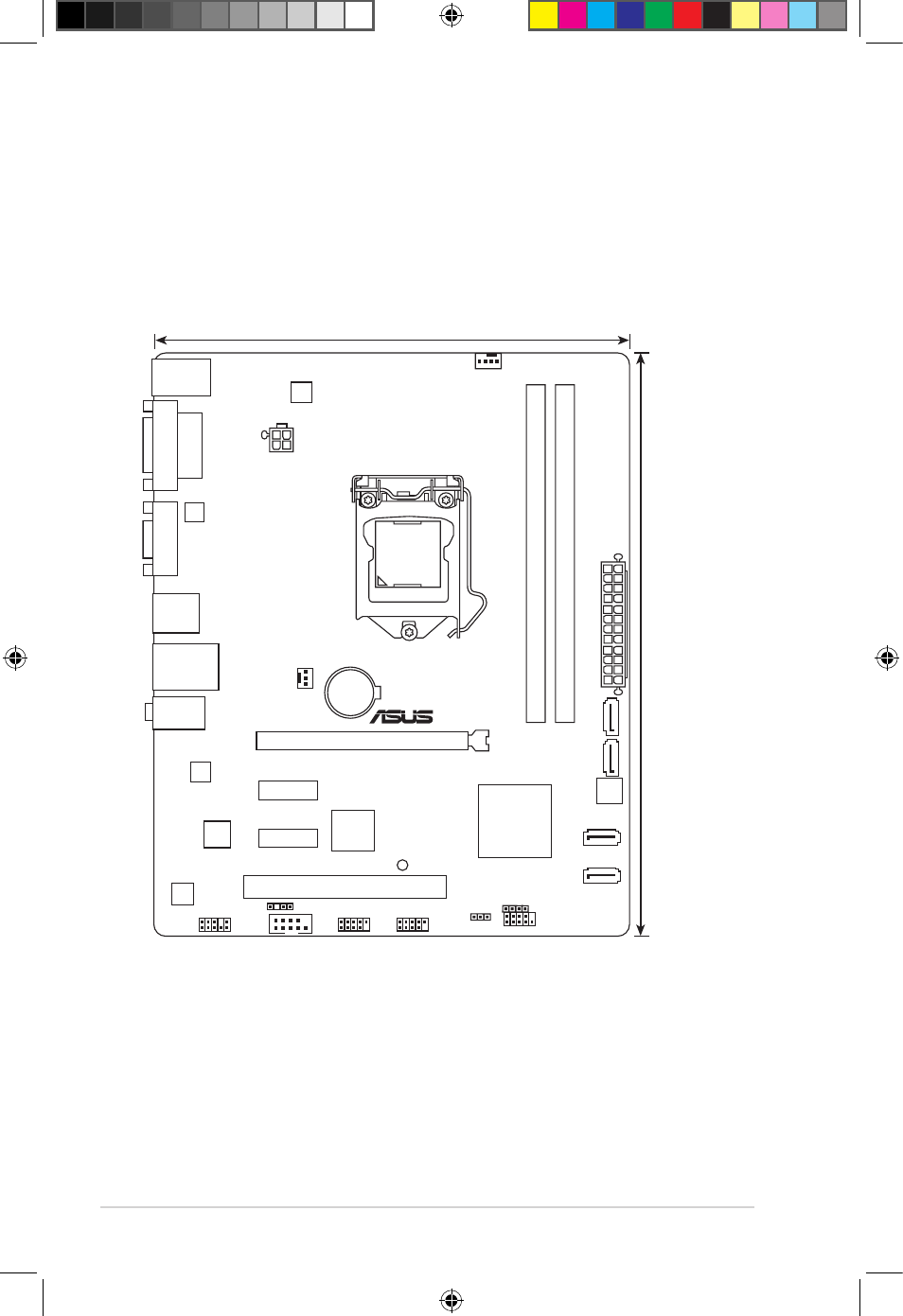

Motherboard layout

P8H61-M LX2

PCIEX16_1

PCI1

PCIEX1_1

PCIEX1_2

COM1

USB910

F_PANEL

SPEAKER

USB78

CLRTC

AAFP

ATX12V

EATXPW

CPU_FAN

CHA_FAN

Lithium Cell

CMOS Power

Super

I/O

VIA

VT1708S

RTL

8111E

EPU

ASM
1442

32Mb
BIOS

asmedia

ASM1083

SB_PWR

SPDIF_OUT

24.4cm(9.6in)

LGA1155

Intel

H61

DDR3 DIMM_A1 (64bit, 240-pin module)

DDR3 DIMM_B1 (64bit, 240-pin module)

SATA3G_3

SATA3G_4

SATA3G_2

SATA3G_1

AUDIO

KB_USB56

LAN1_USB12

USB34

19.8cm(7.8in)

DVI
