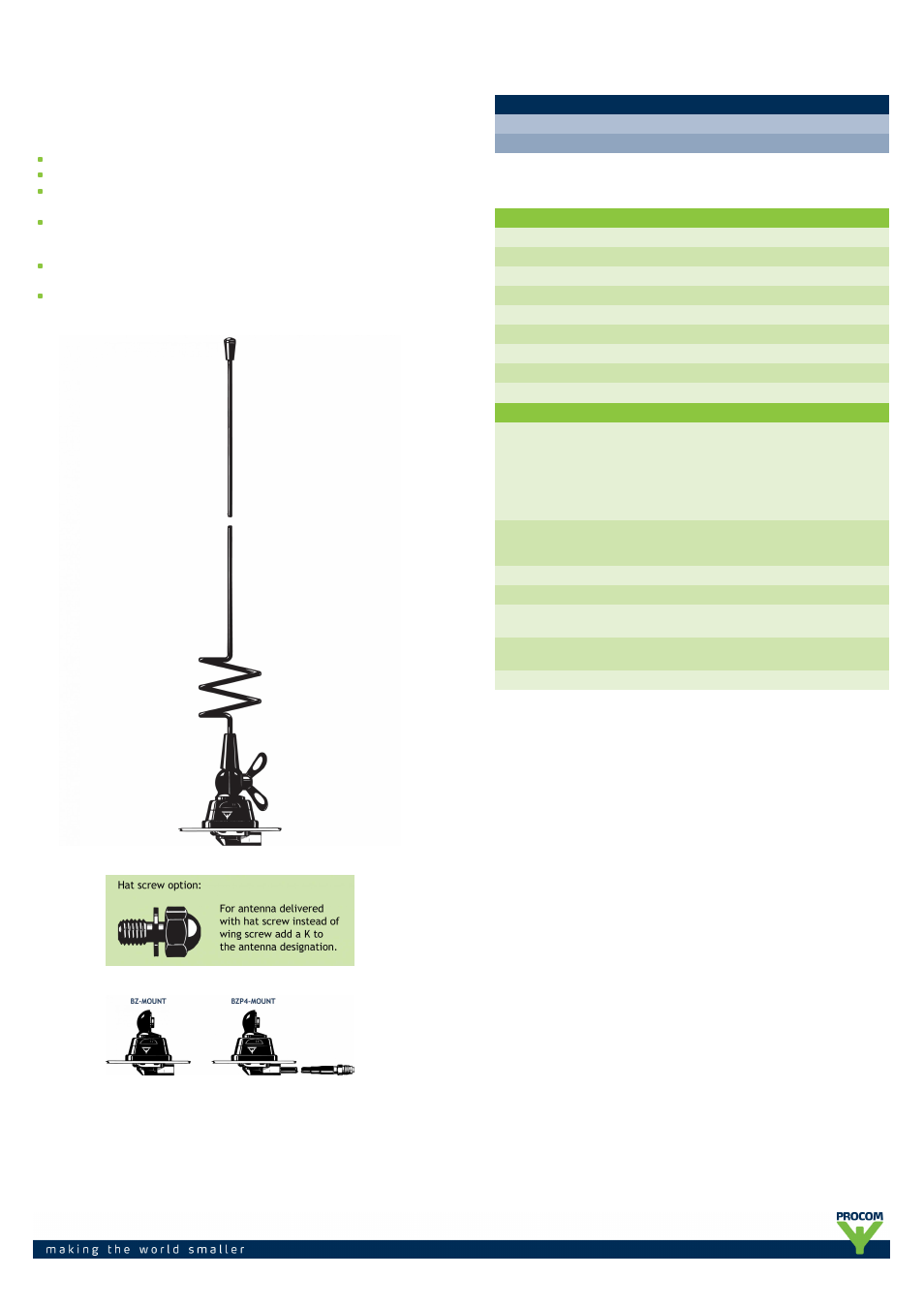

MU 3-BZ/TETRA/l
3 dB Gain ⅝ λ Mobile Antenna for the TETRA Band
DESCRIPTION
Black-chromed stainless steel whip with toggle joint.
Factory tuned for the range 380 - 400 MHz.
Stainless steel BZ-mount with ball-joint and wing screw whip-fastening
system.
Simple mounting exclusively with access from the outside.
Models with roof thickness from 2 mm to 7.5 mm mounting from the
inside.
Choice between two connection principles: BZ-mount: FME-connection
(supplied without cable).
BZP4-mount: Permanently attached 4 m cable terminated with FME-
connector.
ORDERING DESIGNATIONS
MOUNT VERSION TYPE NO.
BZ-mount with FME-system MU 3-BZ/TETRA/l
BZP4-mount with 4 m cable and FME-connector MU 3-BZP4/TETRA/l
SPECIFICATIONS
ELECTRICAL
MODEL MU 3-BZ/TETRA/l
ANTENNA TYPE ⅝ λ mobile whip antenna
FREQUENCY 380 - 400 MHz
IMPEDANCE Nom. 50 Ω
POLARIZATION Vertical
GAIN Approx. 3 dB (acc. to EIA RS-329-1)
BANDWIDTH ≥ 10 MHz @ SWR ≤ 1.5
SWR ≤ 1.5 @ f. res.
MAX. POWER 100 W
MECHANICAL
MATERIALS Whip:
Stainless steel, black-chromed
Black-chromed brass
Mount:
Black-chromed brass
Weather- and shockproof plastics
Stainless steel
RECOMMENDED
INSTALLATION
TORQUE
7.5 ± 1 Nm
COLOUR Black
HEIGHT Approx. 49 cm
WEIGHT BZ-version: Approx. 140 g
BZP4-version: Approx. 280 g
MOUNTING ø21 mm dia. hole (For roof thickness from 2 mm up to
7.5 mm mounting hole should be ø22 mm dia.)
ROOF THICKNESS Max. 2.0 mm (Models up to 7.5 mm on request)
