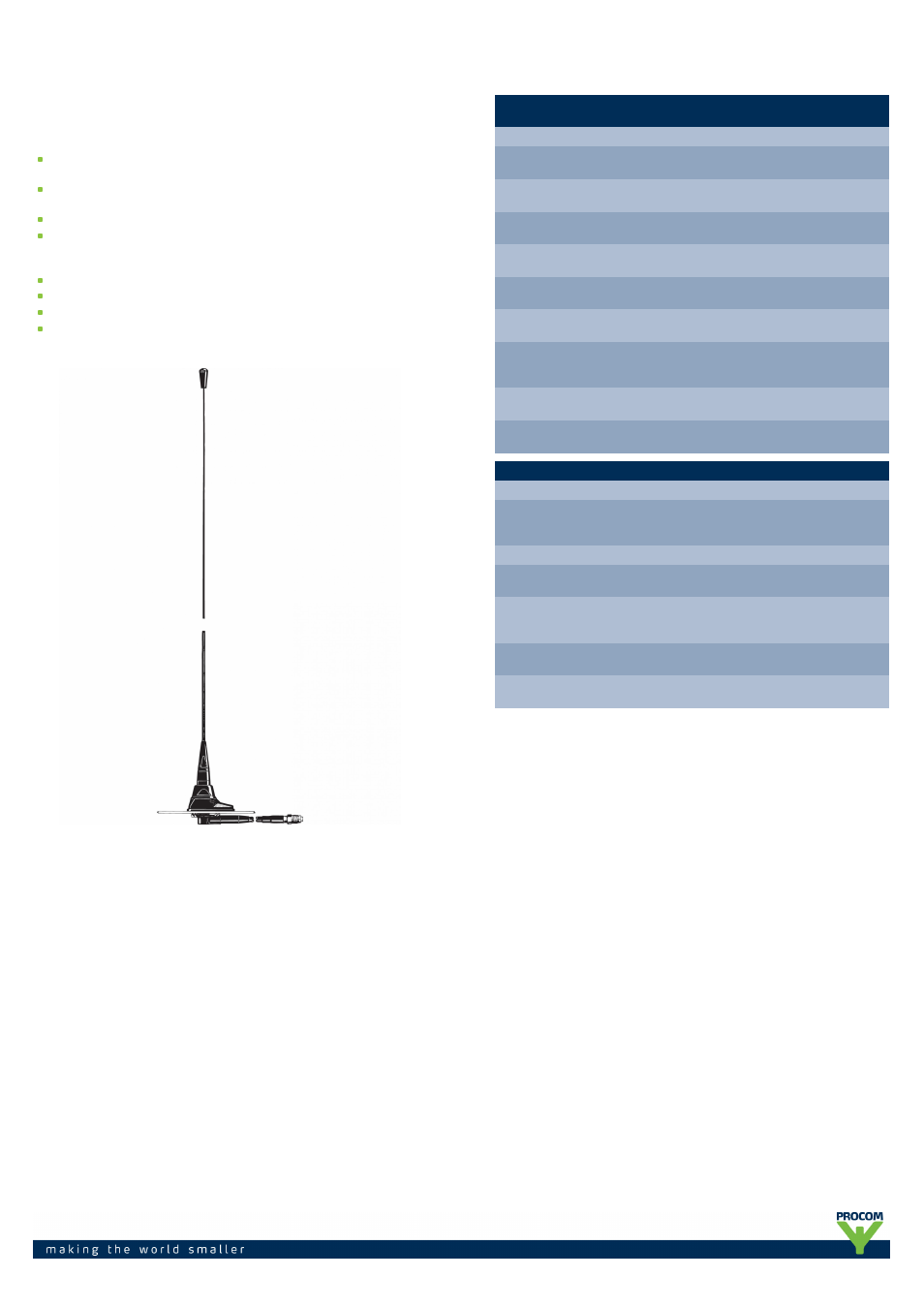

450 MHz 2 dB Mobile Antenna for Glass fibre Roof
DESCRIPTION
Groundplane independent antenna for installation on non-conducting
surfaces.
Ideal for glass fibre roofs as can be found on some trucks, busses,
transport vans and trains.
Black-chromed, conical stainless steel whip.
MU 9-XP4R/s can be tuned by cutting within 380…410 MHz.
MU 9-XP4R/l can be tuned by cutting within 400…440 MHz.
MU 9-XP4R/h can be tuned by cutting within 430…470 MHz.
M6-thread whip-fastening system.
Simple mounting exclusively with access from the outside.
Models available with oblong or circular mount.
Delivered with permanently attached 4 m cable terminated with
FME-connector (other models on request).
Please note that the MU 9-XP4R type "s"-, "l"- and "h"-mounts contain
matching transformers. Consequently, these special mounts cannot operate
with other whip types.
ORDERING DESIGNATIONS
TYPE PRODUCT
NO.
FREQUENCY MOUNT VERSION
FIELD TUNABLE MODELS
MU 9-XP4R/s
130001549 380...410
MHz
Oblong mount with 4 m
cable and FME-conn.
MU 9-XP4R/l 130001550 400...440
MHz
Same mount as above
MU 9-XP4R/h 130001551 430...470
MHz
Same mount as above
MU 9-CXP4R/s 130001094 380...410
MHz
Circular mount with 4 m
cable and FME-conn.
MU 9-CXP4R/l 130001759 400...440
MHz
Same mount as above
MU 9-CXP4R/h 130001606 430...470
MHz
Same mount as above
MU 9-CXP1R/s-
TNC
130001891 380...410
MHz
Circular mount with 1 m
cable and TNC (male)
conn.
MU 9-CXP1R/l-
TNC
130001901 400...440
MHz
Same mount as above
MU 9-CXP1R/h-
TNC
130001902 430...470
MHz
Same mount as above
TYPE CELLULAR SYSTEM MOUNT VERSION
READY-TUNED MODELS (examples)
MU 9-XP4R/h, NMT
NMT-450, Norway Oblong mount with
4 m cable and FME-
conn.
MU 9-XP4R/380-400 MHz TETRA BOS, Germany Same mount as above
MU 9-XP4R/h, R2000 Radiocom 2000,
France
Same mount as above
MU 9-CXP4R/h, NMT NMT-450, Norway Circular mount with
4 m cable and FME-
conn.
MU 9-CXP4R/380-400
MHz
TETRA BOS, Germany Same mount as above
MU 9-CXP4R/h, R2000 Radiocom 2000,
France
Same mount as above
When ordering a ready-tuned model, the name of the desired cellular
system must be added to the antenna model number.
