Procom ML 2-XR User Manual
Page 2
INSTALLATION
This antenna can be mounted anywhere on the vehicle.
The oblong X-mount is especially suited for mounting on the often very
narrow strip on the rear wing between the trunk lid and the side of the car.
Mounting can take place exclusively with access frome the outside when
drilling an 18 mm dia. hole. Mounting can take place from the inside by
drilling a 14 mm dia. hole. When mounting in a 14 mm dia. hole, remove the
bottom plastic ring of the packing gasket with a sharp cutter.
When cleaning the car in car-washing machines, remove the whip using a
spanner, size 9 mm. After wash, refit the whip and tighten it lightly with the
spanner.
As the mount is internally equipped with a bendable section, the antenna
can always be adjusted to an upright position independent of the tilt angle
of the installation spot (up to 30° tilt).

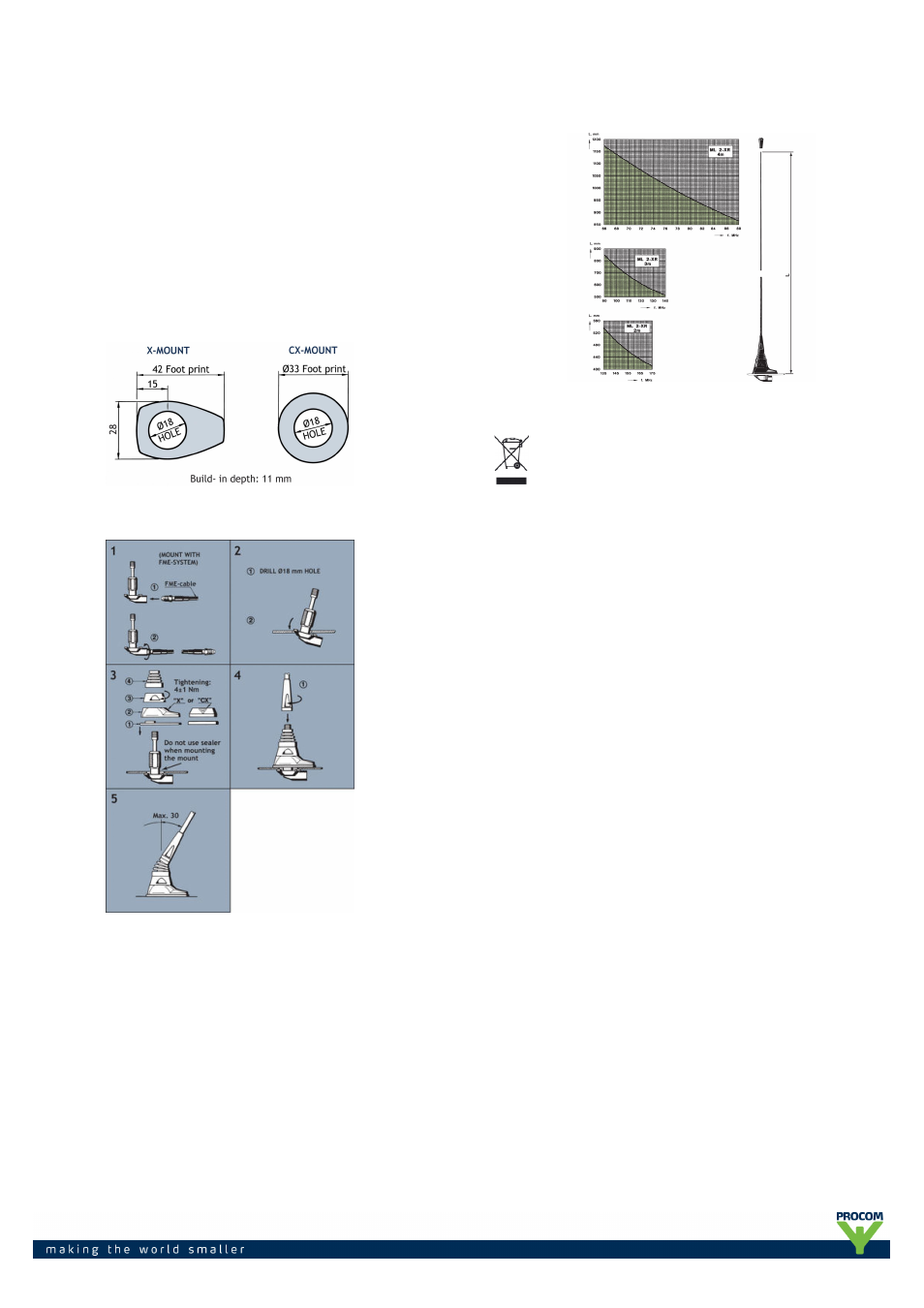

1. INSTALLATION DIMENSIONS
2. INSTALLATION STEPS
Do not use sealer on rubber gasket or other places.
3. TUNING
The antenna should always be tuned using an SWR-meter.
The cutting diagrams below serve as a guide for this procedure.
PROCOM A/S reserve the right to amend specifications
without prior notice.
14/09/11
