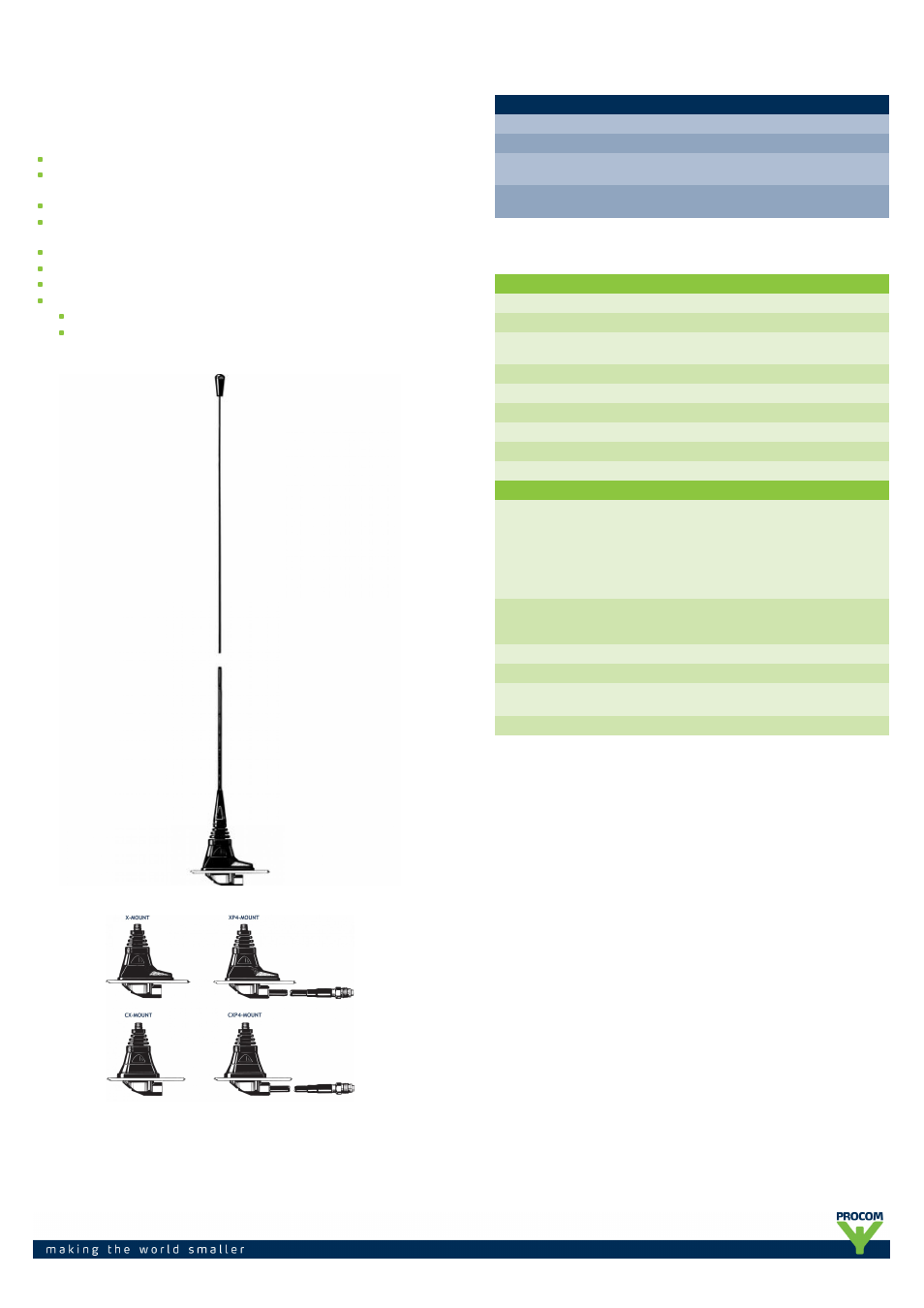

Procom ML 2-XR User Manual
Ml 2-xr

ML 2-XR
¼ λ Mobile Antenna for the 80 MHz Band
DESCRIPTION
Black-chromed, conical stainless steel whip.
Elegant transition between whip and mounting surface due to slim-line
mount.
30° tiltable whip.
Ideal for installation on the narrow strip on rear wing between trunk lid
and side of car.
Stainless steel X-mount with M6-thread whip-fastening system.
Simple mounting exclusively with access from the outside.
Models available with X-mount (oblong) and CX-mount (circular).
Choice between two connection principles:
X-mount: FME-connection (supplied without cable).
XP4-mount: Permanently attached 4 m cable terminated with FME-
connector.
ORDERING DESIGNATIONS
TYPE
PRODUCT NO.
MOUNT VERSION
ML 2-XR
130000632
X-mount (oblong) with FME-system
ML 2-CXR
130000633
CX-mount with FME-system (circular)
ML 2-XP4R
130000634
XP4-mount with 4 m cable and
FME-connector (oblong)
ML 2-CXP4R
130000635
CXP4-mount with 4 m cable and
FME-connector (circular)
SPECIFICATIONS
ELECTRICAL
MODEL
ML 2-XR
ANTENNA TYPE
¼ λ mobile whip antenna
FREQUENCY
Tunable by cutting within: 66…88 MHz
(Also applicable: 88…175 MHz)
IMPEDANCE
Nom. 50 Ω
POLARIZATION
Vertical
GAIN
0 dB (acc. to EIA RS-329-1)
BANDWIDTH
≥ 8 MHz @ SWR ≤ 2.0
SWR
≤ 1.3 @ f. res.
MAX. POWER
250 W
MECHANICAL
MATERIALS
Whip:
Black-chromed, conical stainless steel
Black-chromed brass
Mount:
Black-chromed brass
Weather- and shockproof plastics
Stainless steel
RECOMMENDED
INSTALLATION
TORQUE
4 ± 1 Nm
COLOUR
Black
HEIGHT
Approx. 1.3 m
WEIGHT
X-version: Approx. 80 g
XP4-version: Approx. 240 g
MOUNTING
18 mm dia. hole
