Procom Pro GHz-link series User Manual
Page 2
GENERAL SPECIFICATIONS
MODEL
PRO...-001HD/TSV50
PRO...-001HD/TSV70
ELECTRICAL
ANTENNA TYPE
Parabolic dish antenna with radome, housing and
mounting bracket
IMPEDANCE
Nom. 50 Ω
POLARIZATION
Horizontal
SWR
< 1.5 within the band
MAX. POWER
250 W
MECHANICAL
CONNECTION
Antenna: SMA (female) (coaxial/waveguide transition
inside housing)
Housing: N (female) (for connection of the downlead
cable)
WIND SURFACE
Approx. 0.25 m²
Approx. 0.38 m²
WIND LOAD
Approx. 316 N @ 160
km/h
Approx. 480 N @ 160
km/h
COLOUR
Radome: Light grey
Housing, brackets: Grey
MATERIALS
Parabolic dish: Aluminium
Waveguide components: Brass and copper
Housing: Glass reinforced plastic
Brackets: Stainless steel
DIMENSIONS,
dish diameter
480 mm
700 mm
DIMENSIONS,
housing
(H x W x D)
Outside: 220 x 170 x 150 mm
Inside: 190 x 135 x 120 mm
DIMENSIONS, total
depth
Approx. 400 mm
Approx. 500 mm
WEIGHT
Approx. 15 kg
Approx. 17 kg
MOUNTING
Mast mounting with supplied bracket on 50 - 115 mm
mast tube

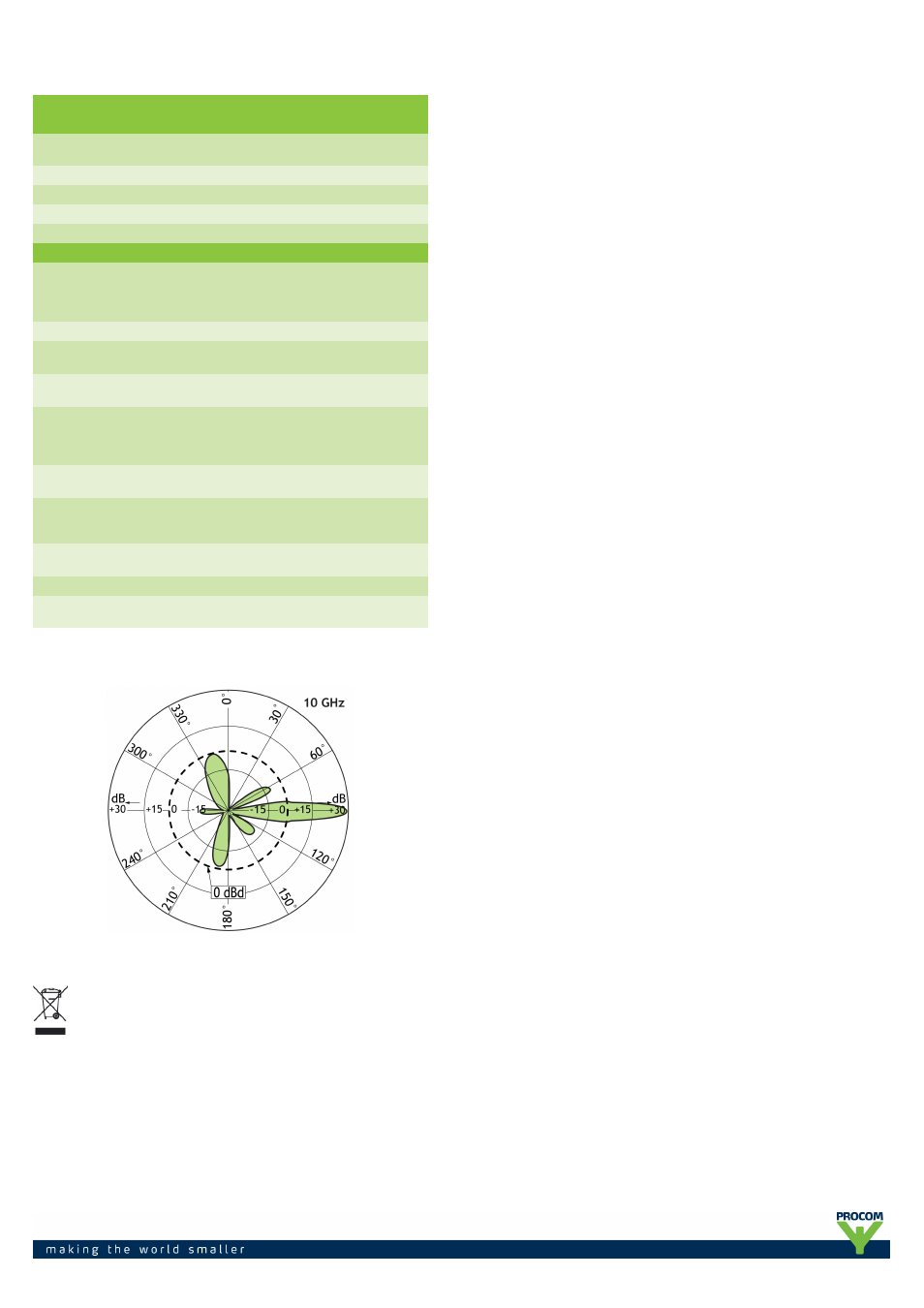

TYPICAL RADIATION PATTERN (H-PLANE)
PROCOM A/S reserve the right to amend specifications
without prior notice.
16/11/11
