Procom PCPO xH-TETRA-... User Manual
Page 2

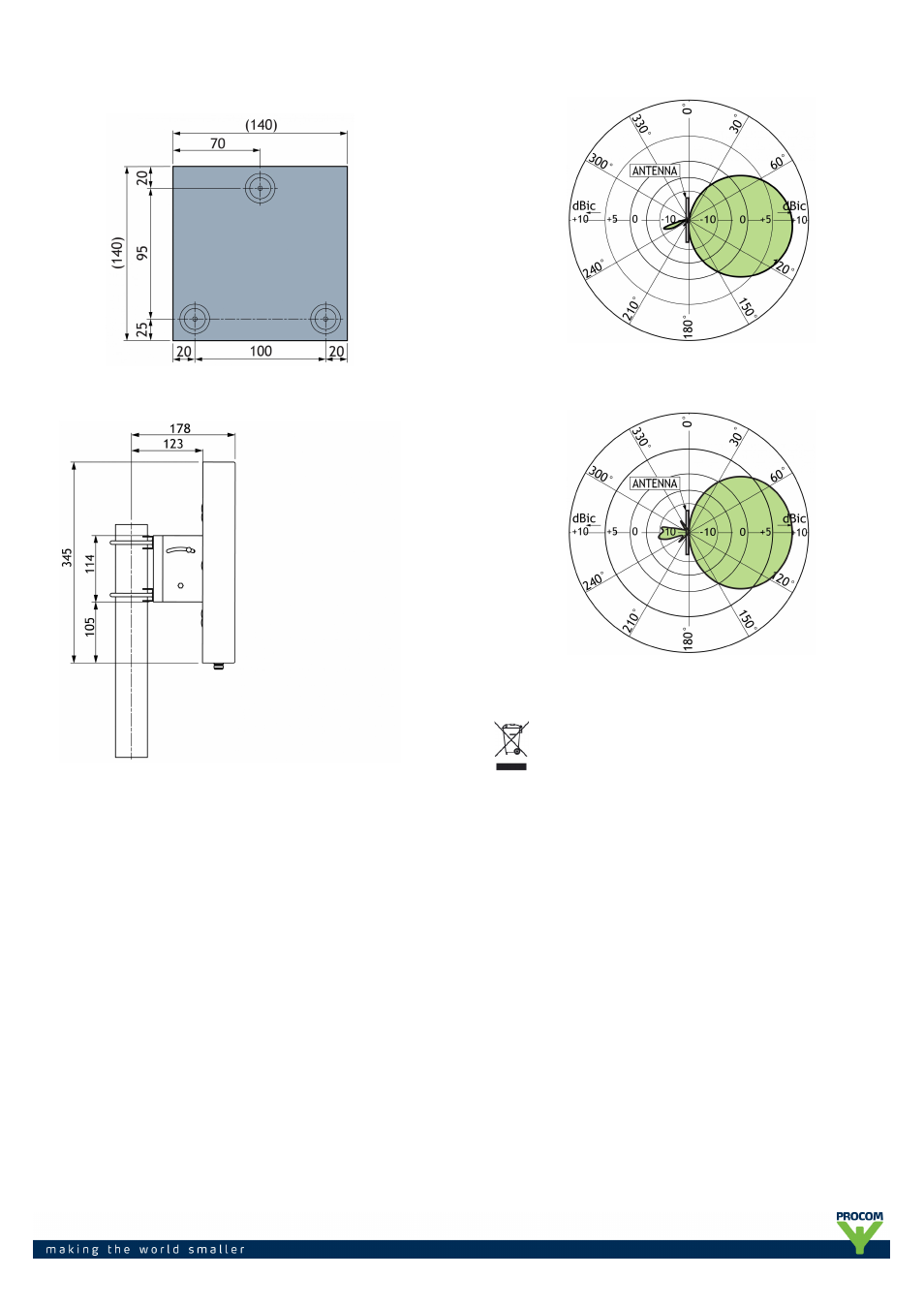

MOUNTING DETAILS (wall mounting)
(Dimensions excl. cover)
MOUNTING DETAILS (Mast tube)
TYPICAL RADIATION PATTERN (E-PLANE)
This curve shows the radiation patterns in the vertical plane.
TYPICAL RADIATION PATTERN (H-PLANE)
This curve shows the radiation patterns in the horizontal plane (horizontal coverage).
PROCOM A/S reserve the right to amend specifications
without prior notice.
03/01/14
