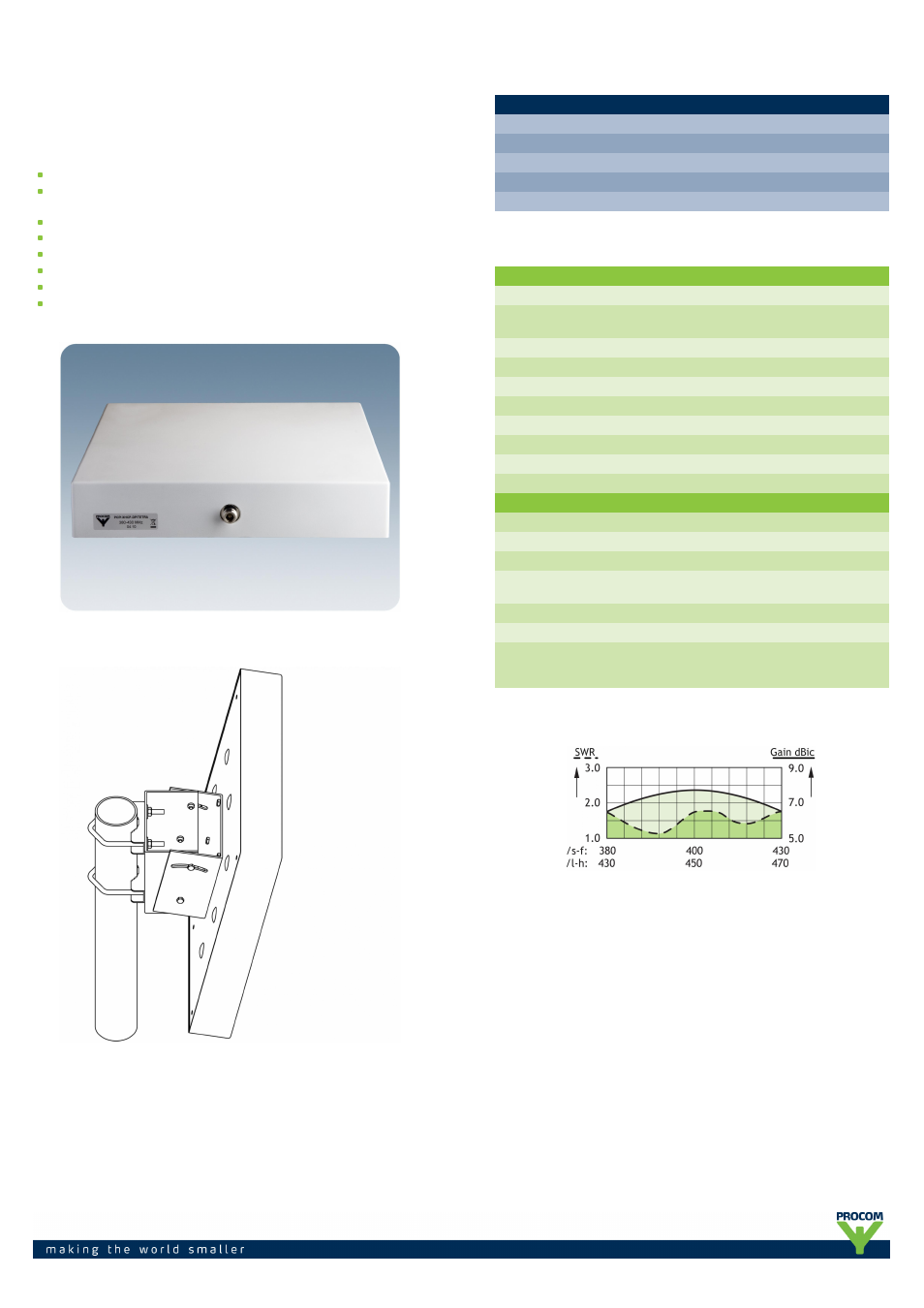

PCPO xH/TETRA/...
Outdoor Left or Right Hand Circularly Polarized Patch
Antennas for mounting on Wall or Mast
DESCRIPTION
Low-profile antenna for the 380 - 470 MHz band.
PCPO xH/TETRA/... is a Left or Right Hand Circularly Polarized
patch antenna for outdoor use.
Circular polarization is chosen to avoid out-of-phase signals.
Reduces flutter considerably.
Covers approx. 50 MHz with a radiation of approx. 7 dBic.
The antennas are carefully sealed with a discrete cover.
The connector is placed at one side to enable mounting close to a wall.
Including wall mounting bracket. Mast mounting bracket to be ordered
separately.
Mast mounting bracket: PATCH-MAMO.
Tilt adjustable from +5˚/-30˚.
ORDERING DESIGNATIONS
TYPE
PRODUCT NO.
FREQUENCY
PCPO RH/TETRA/s-f
100000428
380 - 430 MHz
PCPO LH/TETRA/s-f
100000427
380 - 430 MHz
PCPO RH/TETRA/l-h
100000443
430 - 470 MHz
PCPO LH/TETRA/l-h
100000444
430 - 470 MHz
PATCH-MAMO
100000447
SPECIFICATIONS
ELETRICAL
MODEL
PCPO xH/TETRA/...
ANTENNA TYPE
Left or right hand circularly polarized
patch antenna
FREQUENCY
380 - 470 MHz covered by two models
IMPEDANCE
Nom. 50 Ω
POLARIZATION
Circular
GAIN
Approx. 7 dBic
BANDWIDTH
≥ 50 MHz @ SWR ≤ 2
HALF-POWER BEAMWIDTH
Approx. 80° (H- and E-plane)
SWR
≤ 1.2 f.res.
MAX. POWER
100 W
MECHANICAL
CONNECTOR
N-female
WIND LOAD
173 N @ 160 km/h
COLOUR
Marine white
MATERIALS
Cover: ABS (white)
Chassis: Aluminium
SIZE (L x W x H)
Approx. 340 x 340 x 60 mm
WEIGHT
Approx. 2.3 kg
MOUNTING
For mounting on wall
ø5 mm (three holes) (see mounting details)
or mast on 40 - 55 mm dia. mast tube.
TYPICAL GAIN AND SWR CURVES
