With the YA 2100 you will experience a significant improvement of the
quality of your communication on the 2100 MHz networks.
INSTALLATION STEPS
Mount the antenna on a 30-50 mm diameter mast tube using the
accompanying fittings and bolts (see illustration overleaf). The antenna
is to be oriented as indicated on the connection box of the antenna.
Direct the antenna towards the nearest base station for the 2100 MHz
network in question. The correct direction may be determined using the
field strength indicator telephone.
Mount the antenna on your mast.
Rotate the antenna (in the horizontal plane) while observing the field
strength indicator.
Choose the direction in which the highest field strength level is observed
and fasten the antenna.

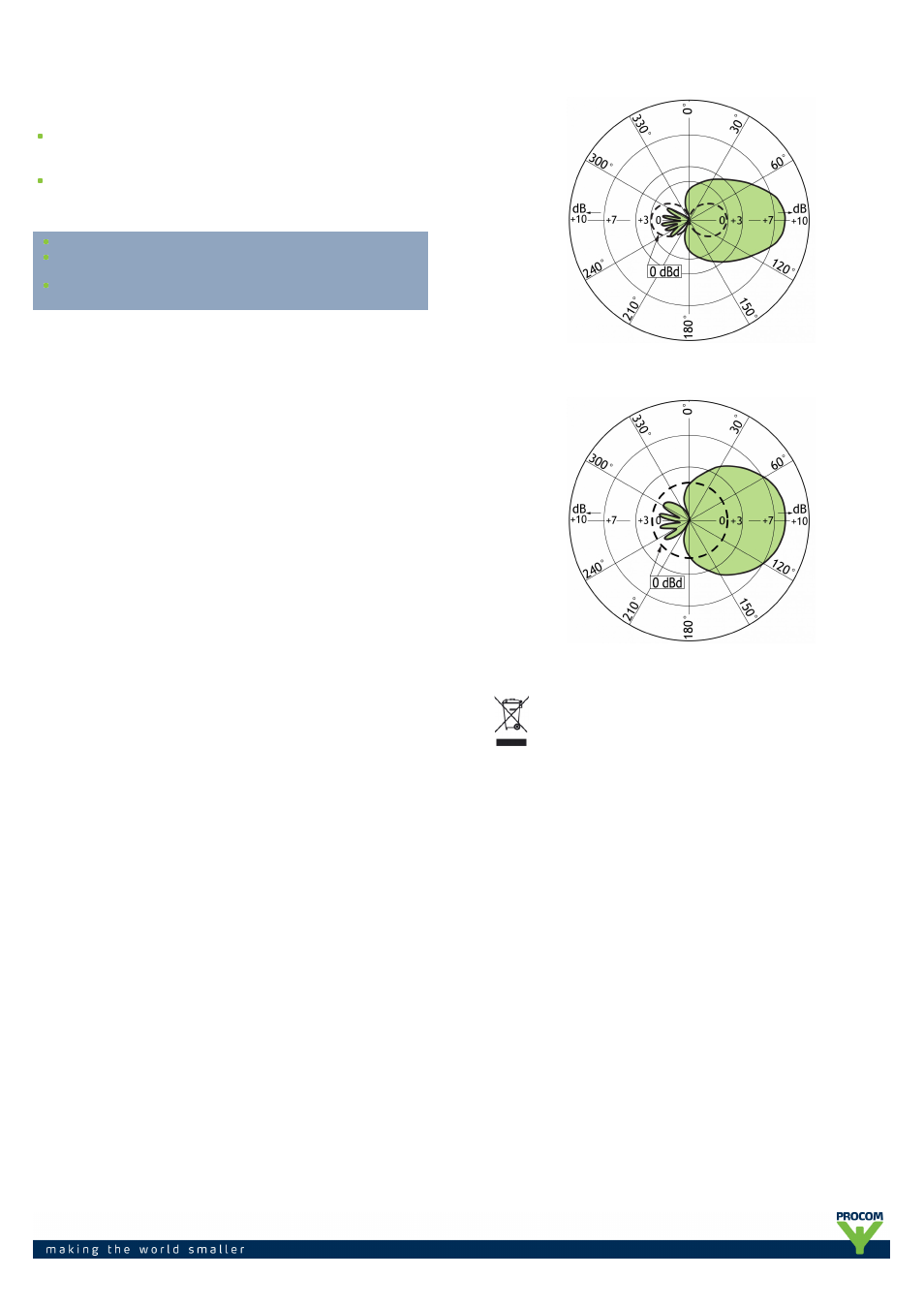

TYPICAL RADIATION PATTERN (E-PLANE)
TYPICAL RADIATION PATTERN (H-PLANE)
PROCOM A/S reserve the right to amend specifications
without prior notice.
02/12/11
