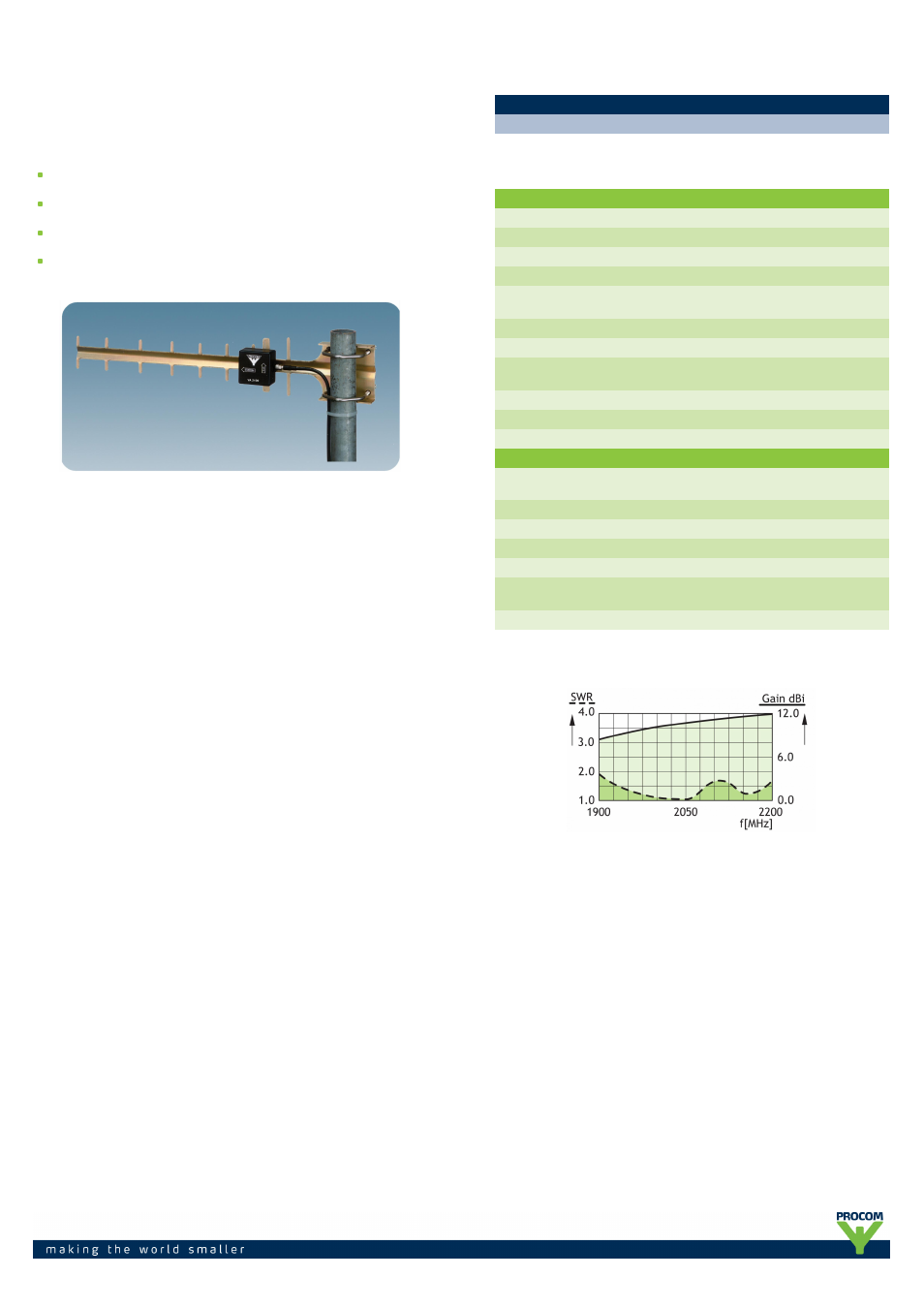

Procom YA 2100 - Manual

YA 2100
Low-Cost 10 dB Directional Antenna for Networks in the
2100 MHz Band
DESCRIPTION
Low-cost and low-weight directional antenna.
Approx. 10 dBi gain.
“Built-in” mounting bracket.
Supplied with fittings and bolts for mounting on 30 - 50 mm diameter
mast tube.
ORDERING DESIGNATIONS
TYPE PRODUCT NO.
YA 2100 130001553
SPECIFICATIONS
ELECTRICAL
MODEL YA 2100
ANTENNA TYPE 9-element Yagi-antenna
FREQUENCY 1900 – 2200 MHz
IMPEDANCE Nom. 50 Ω
POLARIZATION Linear
(vertical or horizontal dep. on orientation)
GAIN 10 dBi 8 dBd
FRONT-TO-BACK-RATIO ≥ 15 dB
HALF-POWER BEAMWIDTH Approx. 35° (E-plane)
Approx. 45° (H-plane)
BANDWIDTH 300 MHz
SWR ≤ 1.8 @ 1.9 - 2.2 GHz
MAX. POWER 25 W
MECHANICAL
MATERIALS Antenna: Gold aludine, Aluminium
Fittings: Stainless steel
COLOUR Aludine “gold”
TOTAL LENGTH 570 mm
MAX. ELEMENT HEIGHT 100 mm
WEIGHT 300 g (incl. bolts)
CONNECTORS FME-connector
(cable to be ordered separately)
MOUNTING On 30 – 50 mm dia. mast tube
TYPICAL GAIN AND SWR CURVES
