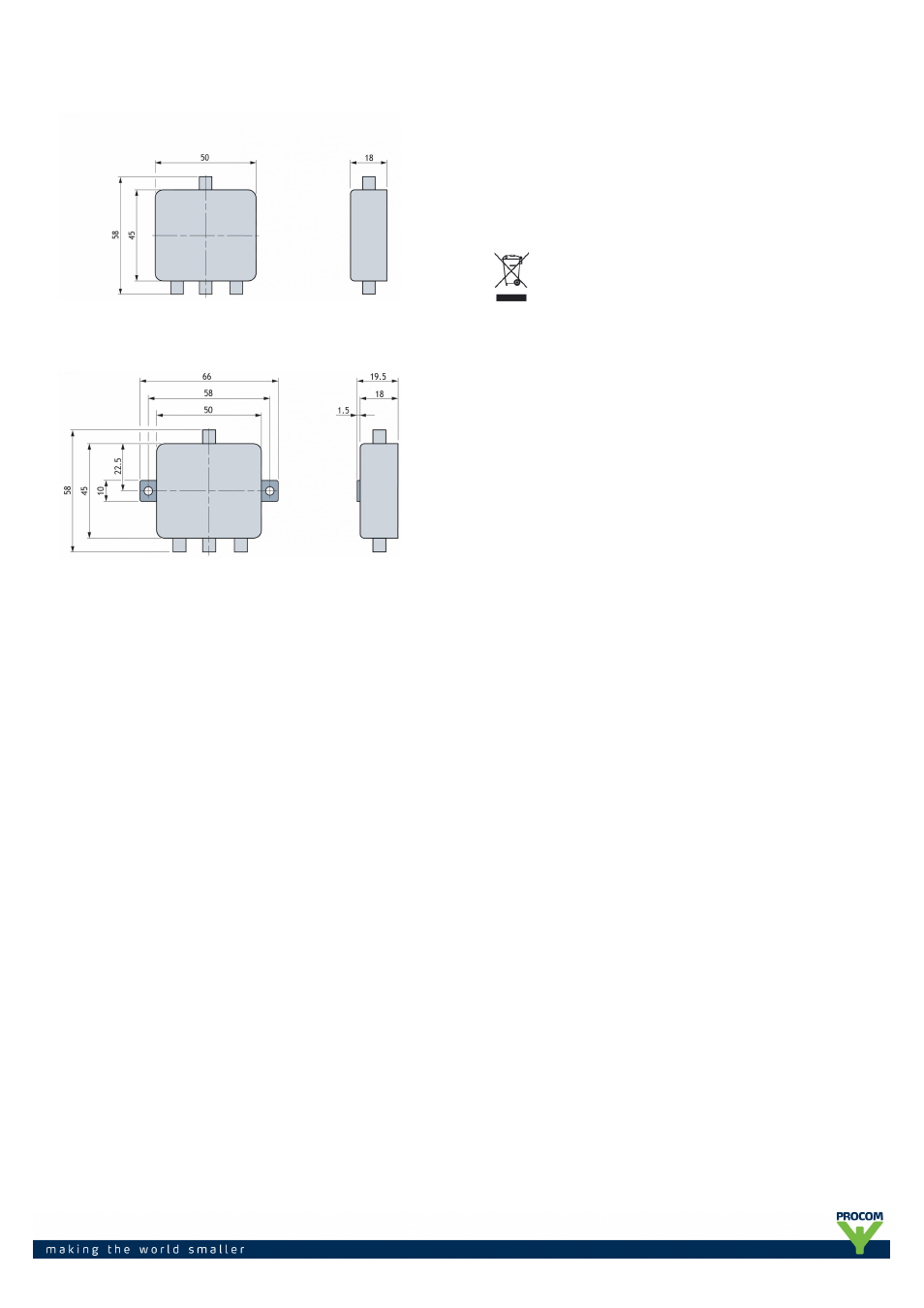

MOUNTING DETAILS
TRI 70/900/1800/UMTS/FM-SMA
MOUNTING DETAILS
TRI 70/900/1800/UMTS/FM-SMA-M
INSTALLATION NOTES
The 50 Ω cable between antenna and diplexer should be kept as
1.
short as possible (preferably not more than 1 m).
Some communication antennas have insufficient height to ensure
2.
satisfactory broadcast reception. Only antenna whips with a height of
at least 25 cm are acceptable.
Tuning: The antenna is tuned for best SWR at the operating
3.
frequency as usual. The filter is factory-tuned and ready for
installation.
PROCOM A/S reserve the right to amend specifications
without prior notice.
03/03/14
