Procom HX 30-KZ - Manual (Page 2)

INSTALLATION
This antenna is provided with type Z-mount. The whip is fastened to the
mount by means of our standard ball-joint and wing screw system. The
adjustable ball-joint ensures that the whip can always be mounted in a
vertical position independent of the angle of the installation spot.
The Z-mount is particularly well suited for mounting on car-roofs because of
its ability to be installed exclusively with access from the outside. The Z-
Mount for roof thickness from 2 mm to 7.5 mm must be mounted from the
inside. However, the antenna can be installed anywhere on the car, as the
Z-mount is equally well suited for mounting on e.g. trunk or wing.

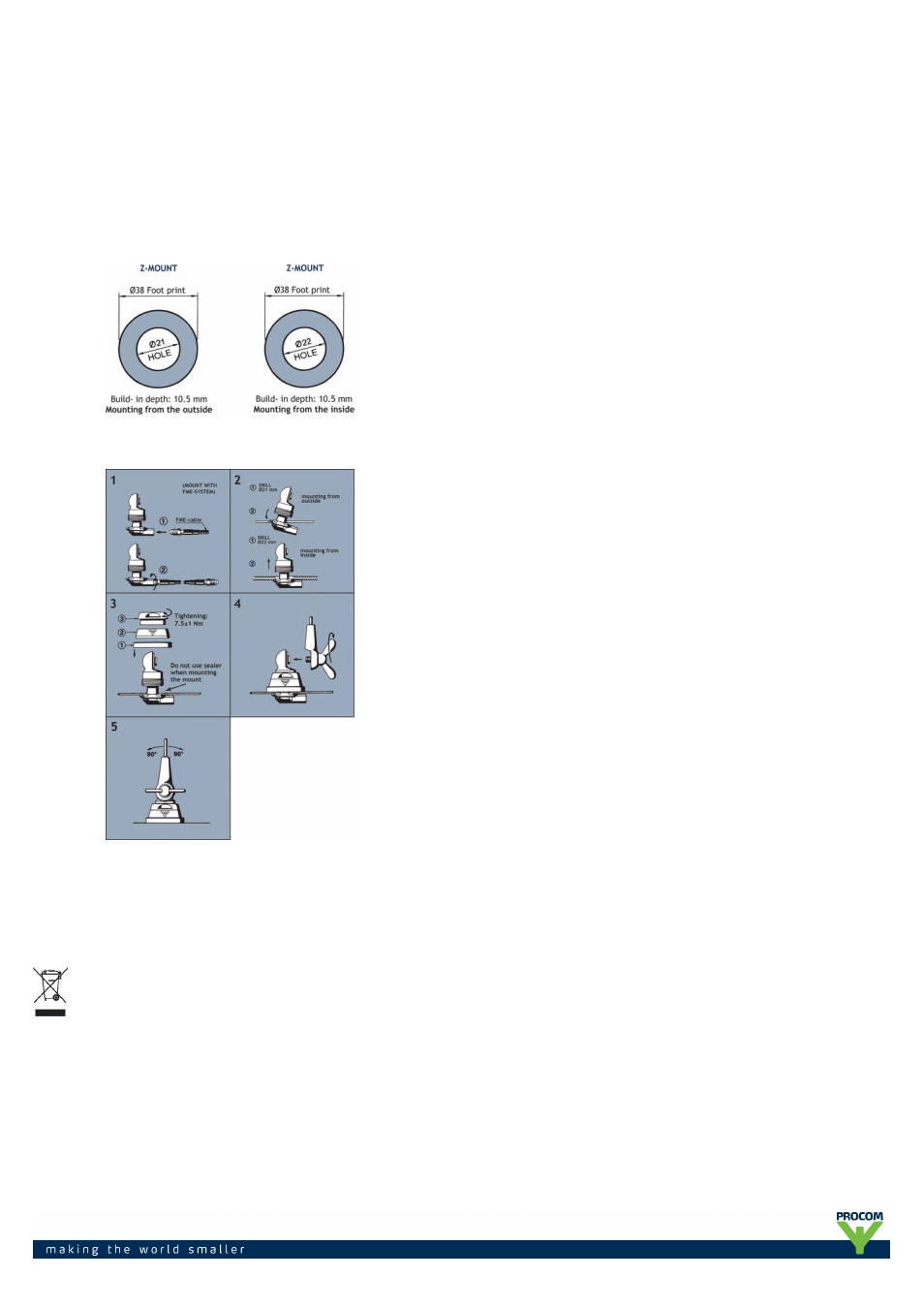

1. INSTALLATION DIMENSIONS
2. INSTALLATION STEPS
Do not use sealer on rubber gasket or other places.
3. TUNING
The antenna is factory-tuned for minimum SWR.
No additional tuning is required.
PROCOM A/S reserve the right to amend specifications
without prior notice.
