USING THE MiniMag – “MM”
This magnetic mount is used to make an occasional antenna installation
where it is not desirable to drill holes in the vehicle. A magnetic mount can
advantageously serve several vehicles by shifting it from one vehicle to
another.The MiniMag is provided with a thoroughly magnetized permanent
ring magnet positioned in a carefully shaped magnetic circuit which yields an
extraordinarily high attaching effect and makes this mount stand for very
high values of bending moment and mechanical shock.A silicone layer
applied to the whole contact surface protects the car roof and ensures
maximum friction.
INSTALLATION
The magnetic mount should be mounted in the middle of the vehicle roof or
rear locker to produce best omnidirectional coverage.
TUNING
Below
400 MHz
Use the cutting diagram for the corresponding X-mount model
using the same type of whip as a guide while using an SWR-meter
to tune the whip.
Above
400 MHz
Whips tuned by cutting: Use an SWR-meter.
Whips tuned with disc: Adjustment diagram accompanies the
antenna.
PLEASE NOTE
For safety reasons:
Do not operate the MiniMag with antenna whips longer than 60 cm. Please
respect the maximum car speed limit corresponding to a particular whip

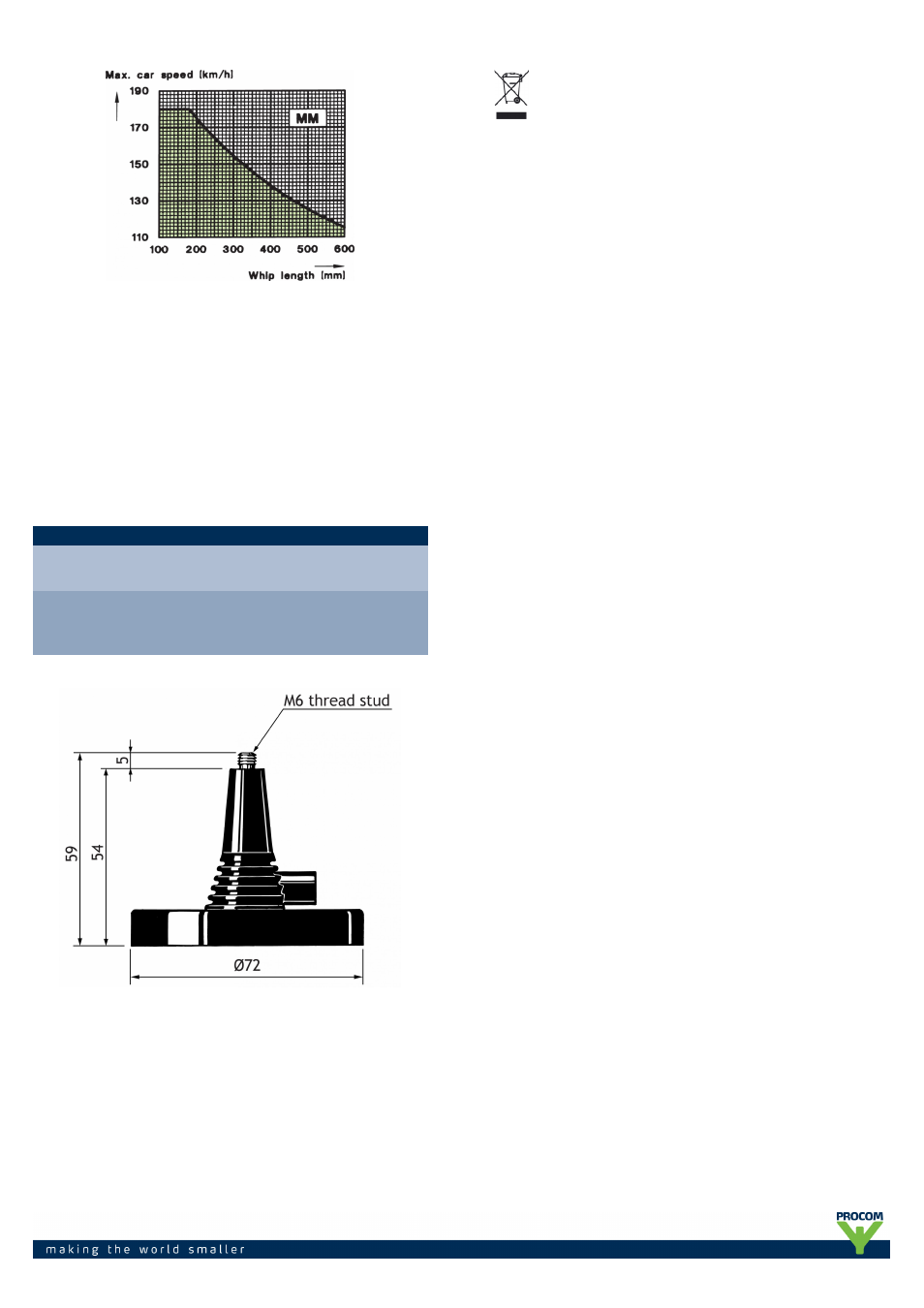

length as appears from the curve on page 1 of this leaflet.
Procom A/S reserve the right to amend specifications without prior notice.
