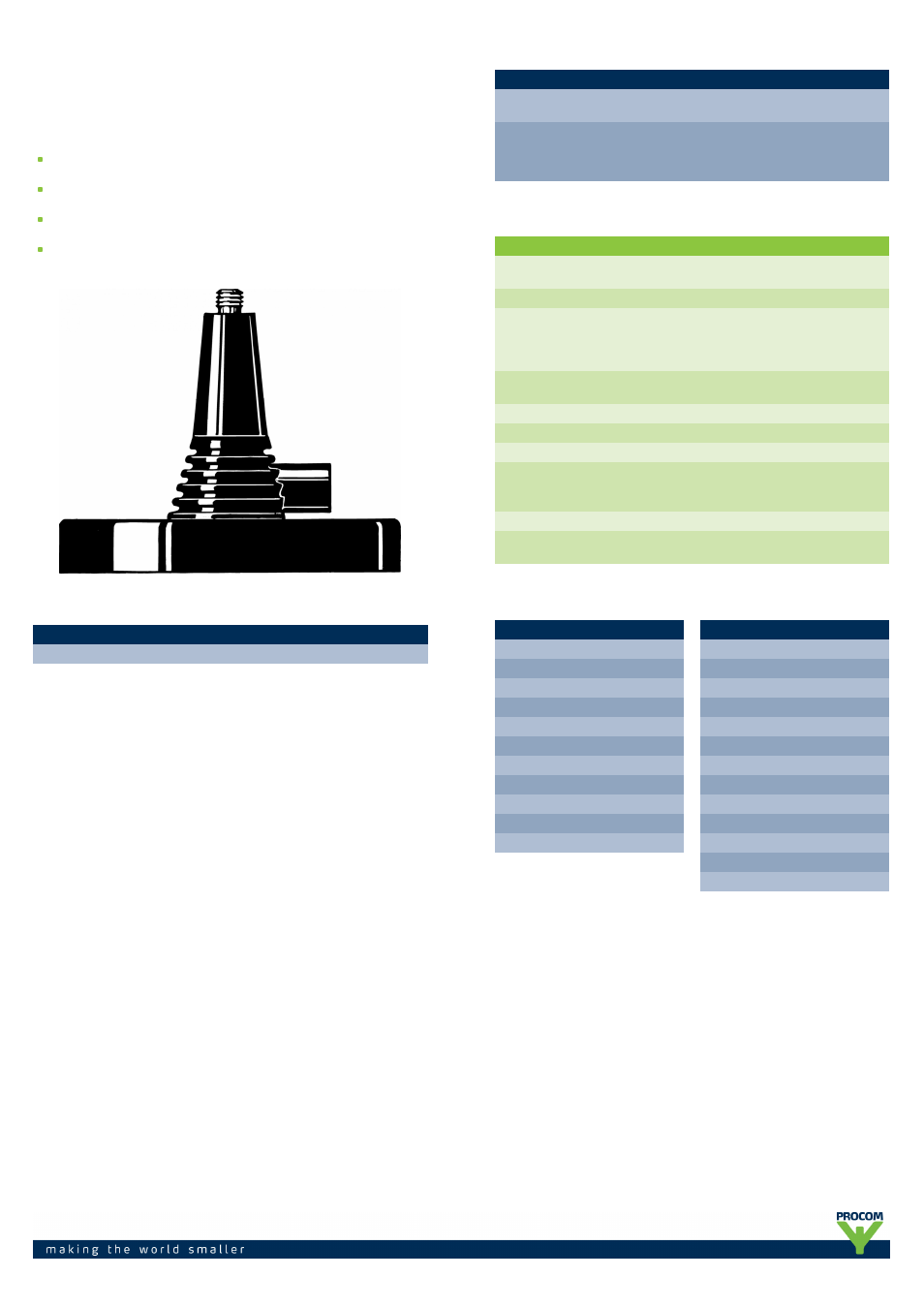

MiniMag - "MM"
Miniature Magnetic Mount for Mobile Antenna Whips
DESCRIPTION
Small, low-profile magnetic mount intended to carry short mobile
antenna whips(height below 60 cm).
Full compatibility with the X-mount, i.e. all X-type whips can be used on
the “MM”.
Provided with FME connecting system (FME-cable must be ordered
separately).
Silicone layer on contact surface protects the car roof and ensures
maximum friction.
ORDERING DESIGNATION
TYPE NO.
PRODUCT NO.
MiniMag - "MM"
ORDERING
Generally
Order this magnetic base by simply asking for MM. (FME-
cable and FME-connector are ordered separately).
Complete
antennas can be
ordered
–by ordering X-type whips and MM separately, or
–by coding MM into the antenna designation. (In this case
please consult the X-mount leaflet for the particular whip
type in question to check if the combination is available).
SPECIFICATIONS
MODEL
MINIMAG - "MM"
APPLICATION
Magnetic mount for all X-type mobile antenna whips
shorter than 60 cm
FREQUENCY
135 - 1000 MHz
MATERIALS
Black chromed brass
Environment-proof plastics
Electrostatic powder laquer
CONNECTION TO
WHIP
M6 thread stud
CONNECTOR
FME-system
COLOUR
Black
WEIGHT
Approx. 0.28 kg
DIMENSIONS
Total height: Approx. 59 mm.
Diameter: 72 mm.
MOUNTING
Centre of vehicle roof for best omnidirectional coverage
MAX. CAR SPEED
Depending on whip height.
See curve below
FME-SYSTEM ACCESSORIES
FME-CABLES
LENGTH
TYPE NO.
1 m
1 m FME
2 m
2 m FME
3 m
3 m FME
4 m
4 m FME
5 m
5 m FME
6 m
6 m FME
4 m white
4 m FME-white
6 m white
6 m FME-white
12 m white
12 m FME-white
18 m white
18 m FME-white
FME-CONNECTORS
CONNECTOR
ORDER NO.
FME-FME
FME-FME
Prolongation
FMEP
N
FME-N
FSMA
FME-FSMA
BNC
FME-BNC
TNC
FME.TNC
UHF
FME-UHF
Mini-UHF
FME-MUHF
Elbow-MUHF
FME-EMUHF
Elbow-BNC
FME-EBNC
Elbow-TNC
FME-ETNC
SMA
FME-SMA
For further information about other types of FME-cables please compare the cable data sheets under
accessories in our catalogue.
Curve
