INSTALLATION
This antenna is provided with type BZ-mount. The whip is fastened to the
mount by means of our standard ball-joint and wing screw system. The
adjustable ball-joint ensures that the whip can always be mounted in a
vertical position independent of the angle of the installation spot.
The BZ-mount is particularly well suited for mounting on car-roofs because
of its ability to be installed exclusively with access from the outside. The BZ-
Mount for roof thickness from 2 mm to 7.5 mm must be mounted from the
inside.
However, the antenna can be installed anywhere on the car, as the BZ-
mount is equally well suited for mounting on e.g. trunk or wing.

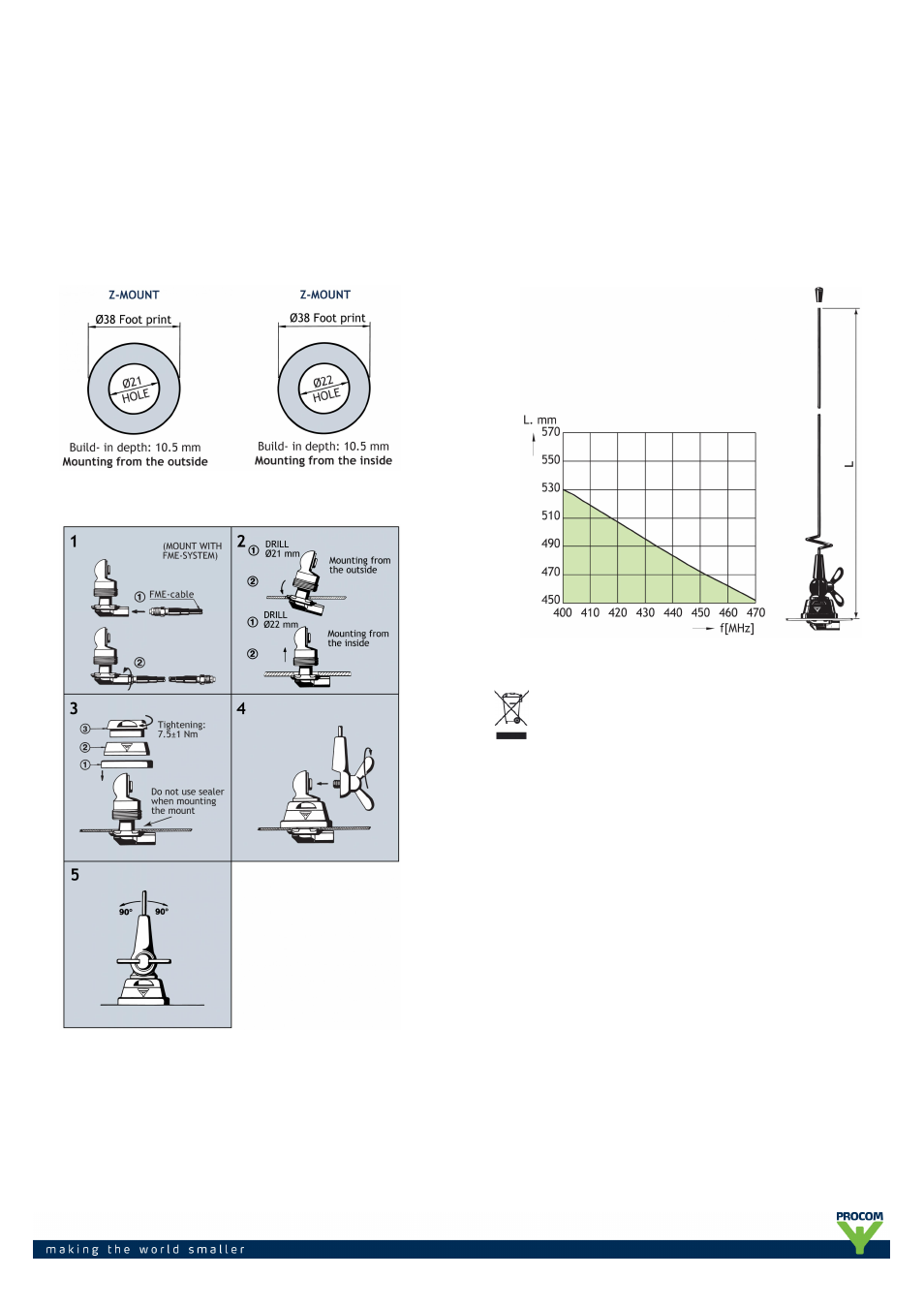

1. INSTALLATION DIMENSIONS
2. INSTALLATION STEPS
Do not use sealer on rubber gasket or other places.
3. TUNING
The antenna should always be tuned using an SWR-meter.
The cutting diagram below serves as a guide for this procedure.
PLEASE NOTE
As standard the antenna is provided with wing screw. However, the 1.
wing screw may be replaced by the less obtrusive hat screw (with
key), which also gives an improved protection against theft. To order
the antenna with hat screw, please add a “K” to the antenna
designation.
The antenna can be delivered factory-tuned to customer’s
2.
frequencies. Please consult our price list concerning additional
charges for adjustment by cutting.
PROCOM A/S reserve the right to amend specifications
without prior notice.
