Procom MU 3-bz User Manual
Mu 3-bz

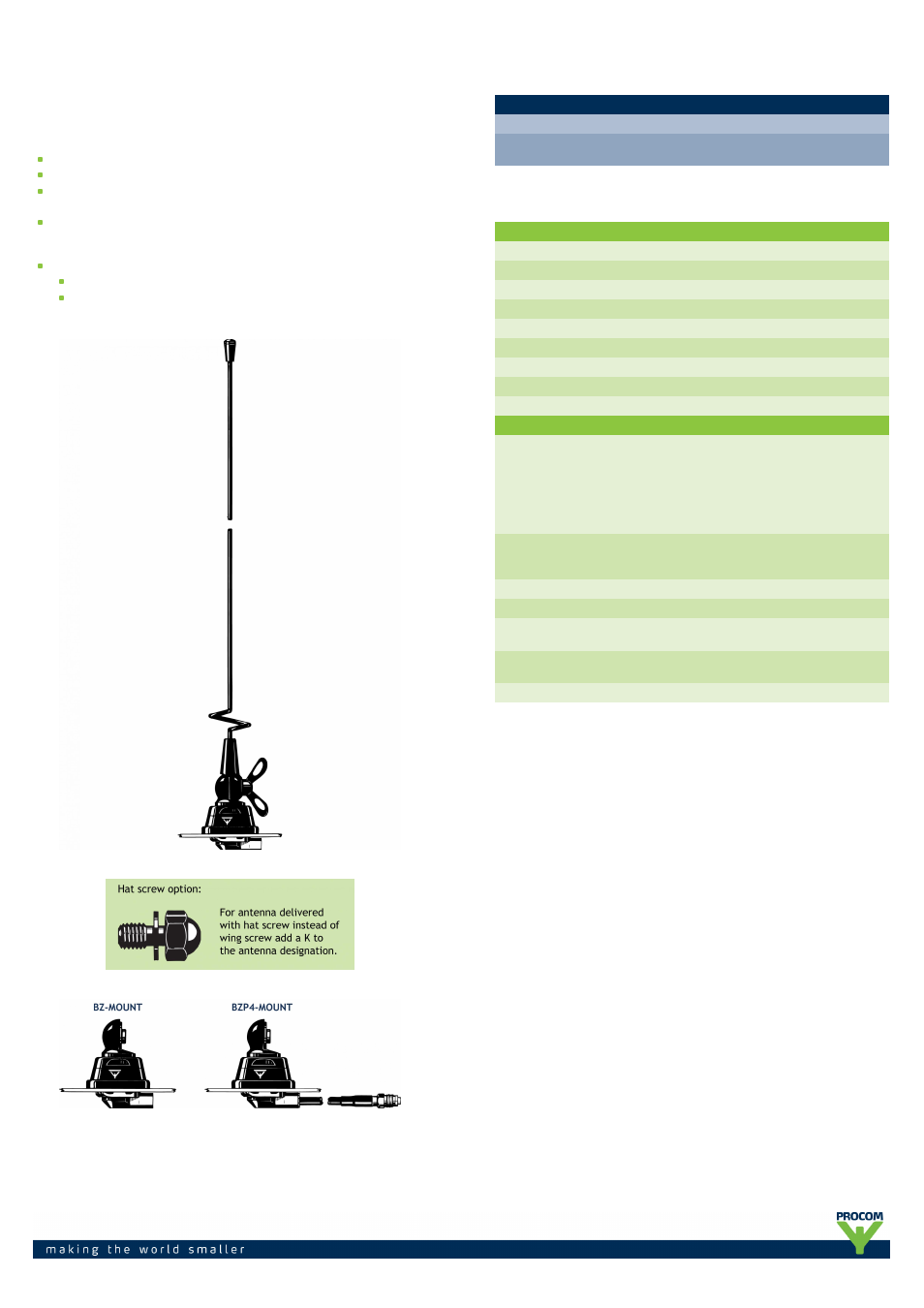

MU 3-BZ
3 dB Gain ⅝ λ Mobile Antenna for the 450 MHz Band
DESCRIPTION
Black-chromed stainless steel whip with toggle joint.
Tunable by cutting in the range 400…470 MHz.
Stainless steel BZ-mount with ball-joint and wing screw whip-fastening
system.
Simple mounting exclusively with access from the outside.
Models with roof thickness from 2 mm to 7.5 mm mounting from the
inside.
Choice between two connection principles:
BZ-mount: FME-connection (supplied without cable).
BZP4-mount: Permanently attached 4 m cable terminated with FME-
connector.
ORDERING DESIGNATIONS
TYPE
PRODUCT NO.
MOUNT VERSION
MU 3-BZ
130001422
BZ-mount with FME-system
MU 3-BZP4
130000899
BZP4-mount with 4 m cable
and FME-connector
SPECIFICATIONS
ELECTRICAL
MODEL
MU 3-BZ
ANTENNA TYPE
⅝ λ mobile whip antenna
FREQUENCY
Tunable by cutting within: 400…470 MHz
IMPEDANCE
Nom. 50 Ω
POLARIZATION
Vertical
GAIN
Approx. 3 dB
BAND WIDTH
≥ 12 MHz @ SWR ≤ 1.5
SWR
≤ 1.3 @ f. res.
MAX. POWER
100 W
MECHANICAL
MATERIALS
Whip:
Stainless steel, black-chromed
Black-chromed brass
Mount:
Black-chromed brass
Weather- and shockproof plastics
Stainless steel
RECOMMENDED
INSTALLATION
TORQUE
7.5 ± 1 Nm
COLOUR
Black
HEIGHT
Approx. 58 cm
WEIGHT
BZ-version: Approx. 140 g
BZP4-version: Approx. 280 g
MOUNTING
ø21 mm dia. hole (For roof thickness from 2 mm up to
7.5 mm mounting hole should be ø22 mm dia.)
ROOF THICKNESS
Max. 2.0 mm (Models up to 7.5 mm on request)
