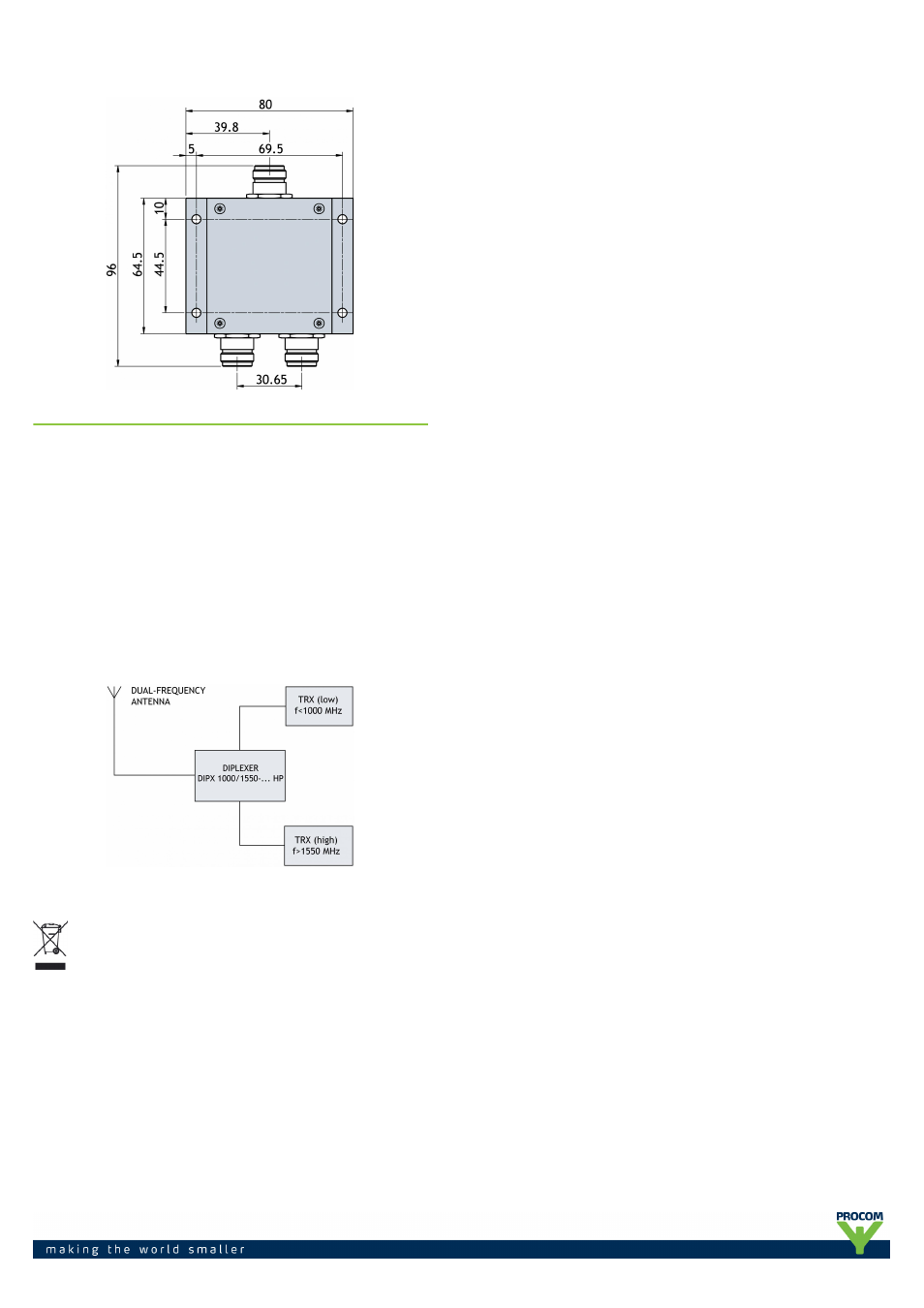

MOUNTING DETAILS
The PRO-DIPX 1000/1550 HP makes it possible to use only one antenna for
the operation of two transceivers (one in each range). See the figure below.
The antenna must be a dual-frequency antenna, i.e. it must be resonant on
the actual frequencies in the two bands. The transceivers may be used
independently and will have no degrading influence on each other. Typically,
the diplexer is installed next to the transceivers and only one cable is used
between the diplexer and the antenna. The diplexer is suitable both for base
station and mobile use.
The main tasks of the diplexer are to protect the individual receiver input
from being destroyed by the transceiver in the contrary band and to ensure
a low-loss path between the transceiver and the antenna which is not
loaded by the other branch.
The diplexer can be operated together with any set of transceivers operating
within the 0 - 1000 MHz and 1550 - 2500 MHz frequency bands.
Dual-frequency antennas are available for both mobile and base station
applications.
