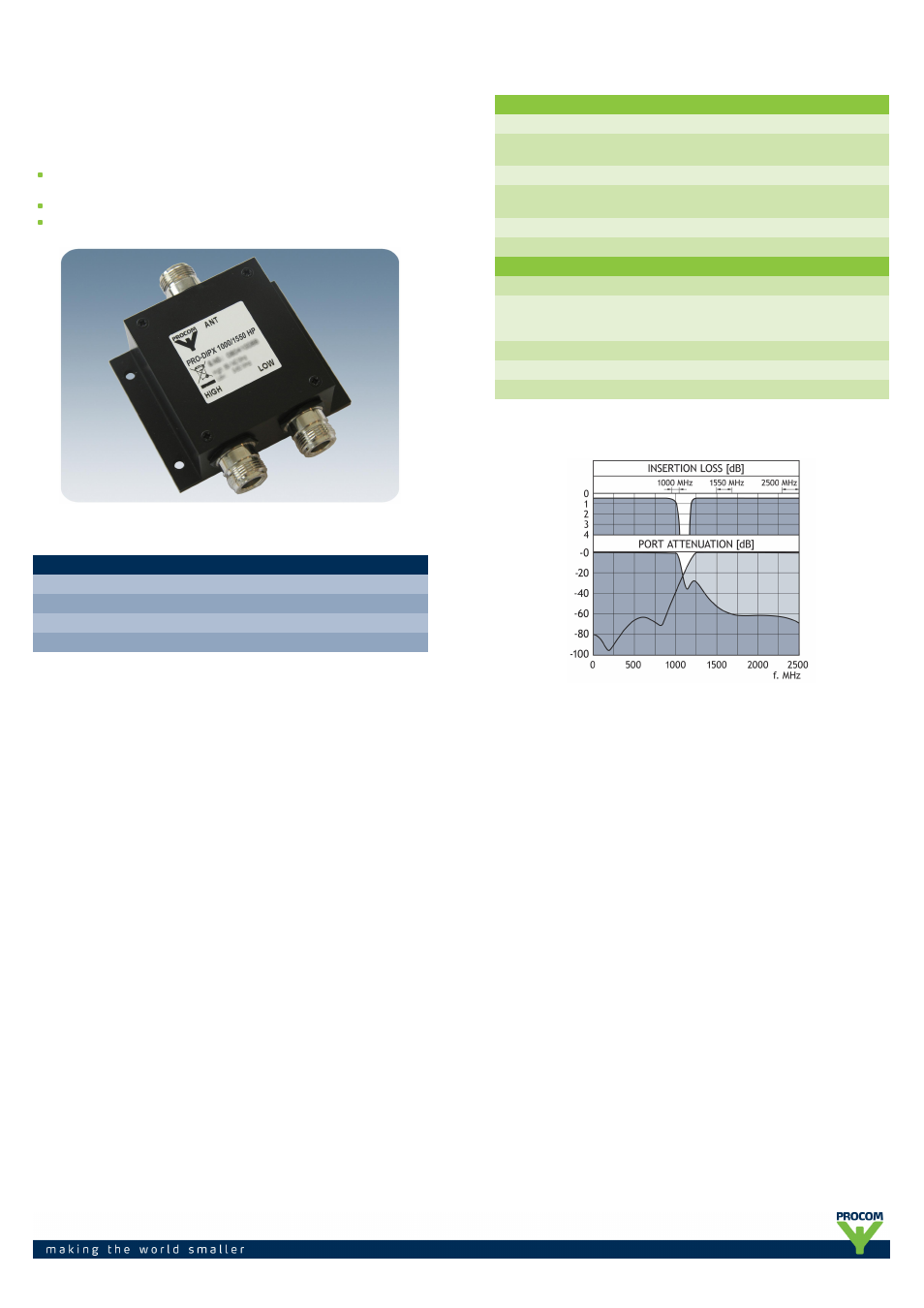

Procom PRO-DIPX 1000-1550-...-hp - Manual

PRO-DIPX 1000/1550-...-HP
Diplexer for the 0 - 1000 MHz and 1550 - 2500 MHz
Ranges
DESCRIPTION
Diplexer for combining or splitting the two ranges 0 - 1000 MHz and
1550 - 2500 MHz.
Excellent wide-band coverage.
N-connections on all terminals.
ORDERING DESIGNATIONS
TYPE PRODUCT NO.
PRO-DIPX 1000/1550-DC-L HP 200001622
PRO-DIPX 1000/1550-DC-H HP 200001998
PRO-DIPX 1000/1550-DC-LH HP 200001999
PRO-DIPX 1000/1550-NO-DC HP 200002000
SPECIFICATIONS
ELECTRICAL
MODEL PRO-DIPX 1000/1550-...-HP
FREQUENCY Low port : 0 - 1000 MHz
High port : 1550 - 2500 MHz
MAX. INPUT POWER 35 W each port
INSERTION LOSS 0 - 1000 MHz : ≤ 0.8 dB
1550 - 2500 MHz: ≤ 0.9 dB
ISOLATION Low to high port: ≥ 45 dB typical 50 dB
IMPEDANCE 50 Ω on all terminals
MECHANICAL
TEMP. RANGE –30° C → +70° C
CONNECTORS Low : N
High : N
Antenna: N
DIMENSIONS (W x H x D) 96 x 32 x 80 mm
WEIGHT Approx. 350 g
MOUNTING ø 4.3 mm (4 holes)
TYPICAL RESPONSE CURVES
