Procom GPS 2000 - Manual (Page 2)

ORDERING DESIGNATIONS
TYPE COLOUR PRODUCT NO.
FME CONNECTOR
GPS 2000B-FME-5V Black 112000026
GPS 2000B-FME-3V Black 112000029
GPS 2000W-FME-5V White 112000024
GPS 2000W-FME-3V White 112000023
TNC CONNECTOR
GPS 2000B-TNC-5V Black 112000028
GPS 2000B-TNC-3V Black 112000032
GPS 2000W-TNC-5V White 112000027
GPS 2000W-TNC-3V White 112000019
PERMANENTLY ATTACHED CABLE
GPS 2000B-P0.15-5V Black 112000072
GPS 2000B-P0.15-3V Black 112000074
GPS 2000W-P0.15-5V White 112000071
GPS 2000W-P0.15-3V White 112000073
SPECIFICATIONS
ELECTRICAL
GENERAL SPECIFICATIONS
MODEL GPS 2000
ANTENNA TYPE Active patch antenna
FREQUENCY 1575 MHz
IMPEDANCE Nom. 50 Ω
POLARIZATION Circular right-hand
COVERAGE Hemispherical
GAIN (in axial direction) 28 dBi (typ.)
CROSSPOLARISATION ATT. > 10 dB (typ.)
SELECTIVITY
> 45 dB down @ ± 45 MHz
BUILT-IN AMPLIFIER
GAIN > 30 dB (typ.)
NOISE FIGURE < 1 dB (typ.)
1 dB COMPRESSION POINT Approx. +7 dBm
SWR (output)
< 2.0
SUPPLY VOLTAGE 5 ± 0.5 VDC or 3 V ± 0.3 VDC
(12 V available on request)
CURRENT CONSUMPTION Approx. 20 mA
MECHANICAL
MOUNTING 14 mm / 0.55 in. dia. hole
MOUNTING THICKN. 0.7 → 4.5 mm / 0.028 → 0.18 in.
MATERIALS Cu-nite brass, seawater resistant
Lexan
COLOUR Black or white, see ordering designations
TEMP. RANGE -50° C → +70° C
CONNECTOR FME (male), TNC (female) or models with
0.15 m RG 316 permanently attached cable with
FME (male) connector, see ordering designations
RECOMMENDED INSTALL.
TORQUE
8.5 ± 1 Nm
HEIGHT 16 mm / 0.63 in.
OUTER HEIGHT 26.5 mm / 1.04 in. total (FME)
38 mm / 1.50 in. total (TNC)
27 mm / 1.22 in. total for P0.15 models
WIDTH/LENGTH ø55 mm / ø2.17 in.
WEIGHT Approx. 120 g / 0.26 lb.
FME-SYSTEM ACCESSORIES
FME-CABLES
TYPE PRODUCT NO.
1 m FME 130000437
2 m FME 130000447
3 m FME 130000457
4 m FME 130000466
5 m FME 130000474
6 m FME 130000483
4 m FME-white 110000064
6 m FME-white 110000066
12 m FME-white 110000068
18 m FME-white 110000069
For further information about other
types of FME-cables and FME-
connectors, please compare the cable
and connector data sheets under
accessories.
FME-CONNECTORS
TYPE PRODUCT NO.
FME-FME 130000583
FME-P
(Prolongation)
130000565
FME-N 130000571
FME-FSMA
(Female-SMA)
130000578
FME-BNC 130000566
FME-TNC 130000569
FME-UHF 130000572
FME-MUHF
(Mini-UHF)
130000573
FME-EMUHF
(Elbow-MUHF)
130000582
FME-EBNC
(Elbow-BNC)
130000580
FME-ETNC
(Elbow-TNC)
130000581
FME-SMA 130000577

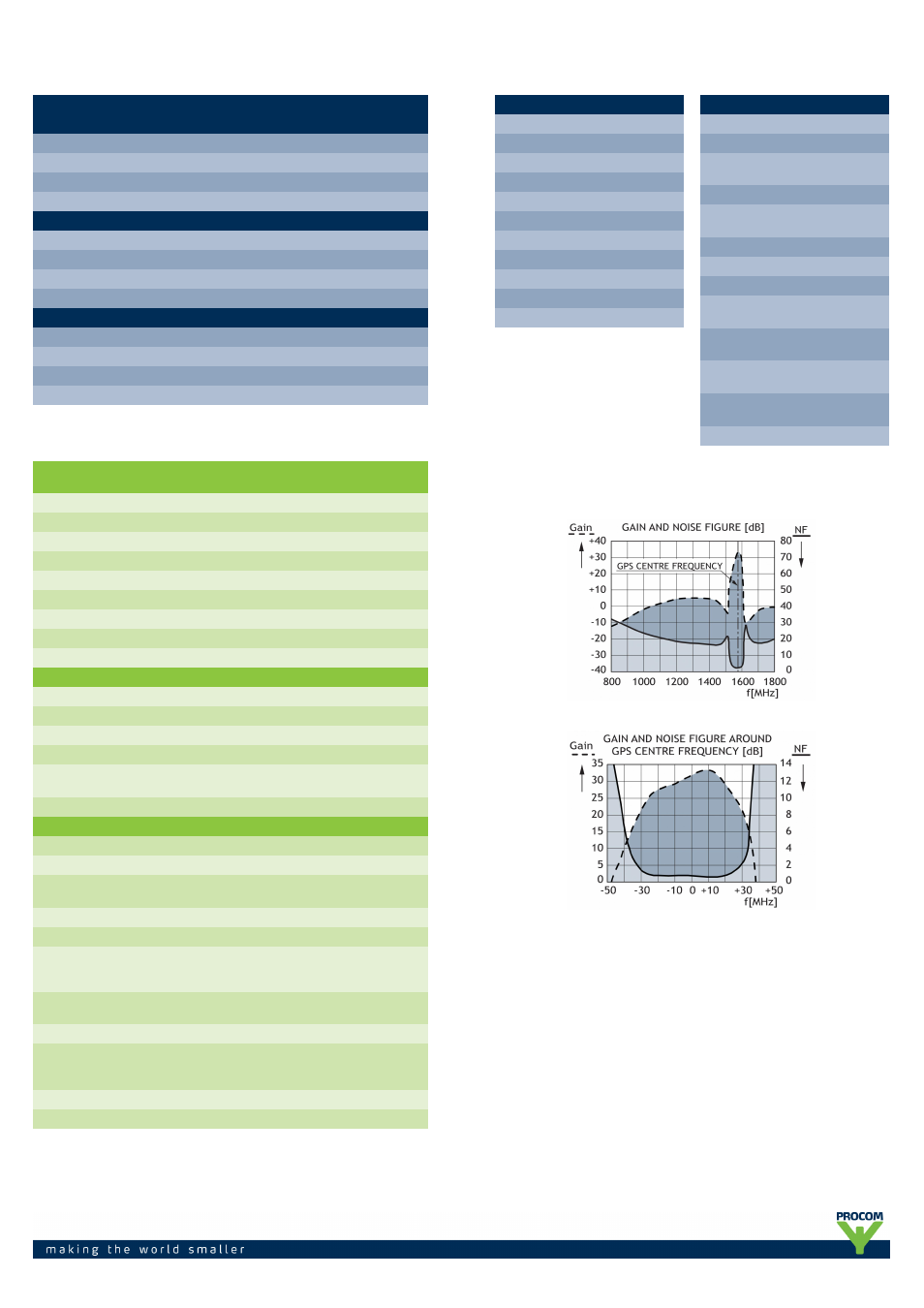

TYPICAL RESPONSE CURVES
