The PRO-DIPX 175/380-MAMO/WAMO makes it possible to use only one

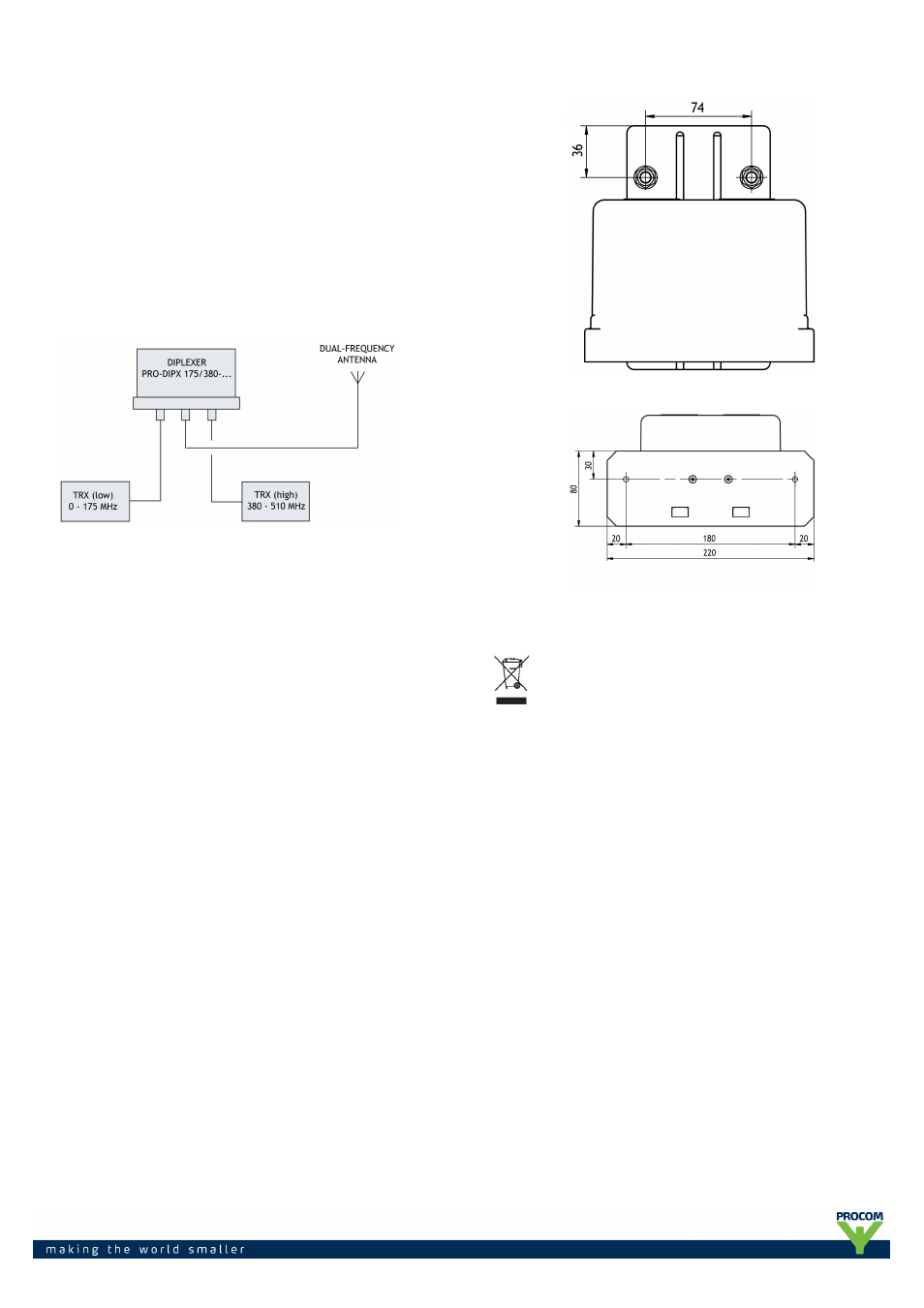

antenna for the operation of two transceivers (one in each range). See the
figure below. The antenna must be a dual-frequency antenna, that is, it
must be resonant on the actual frequencies in the two bands. The
transceivers may be used independently and will have no degrading
influence on each other. Typically, the diplexer is installed next to the
transceivers and only one cable is used between the diplexer and the
antenna. The diplexer is suitable both for base station and mobile use.
The main tasks of the diplexer are to protect the individual receiver input
from being destroyed by the transceiver in the contrary band and to ensure
a low-loss path between the transceiver and the antenna which is not
loaded by the other branch.
The diplexer can be operated together with any set of transceivers operating
within the 0 - 175 MHz and 380 - 510 MHz frequency bands.
Dual-frequency antennas are available for both mobile and base station
applications.
MOUNTING DETAILS
MAMO
WAMO
PROCOM A/S reserve the right to amend specifications
without prior notice.
20/02/13
