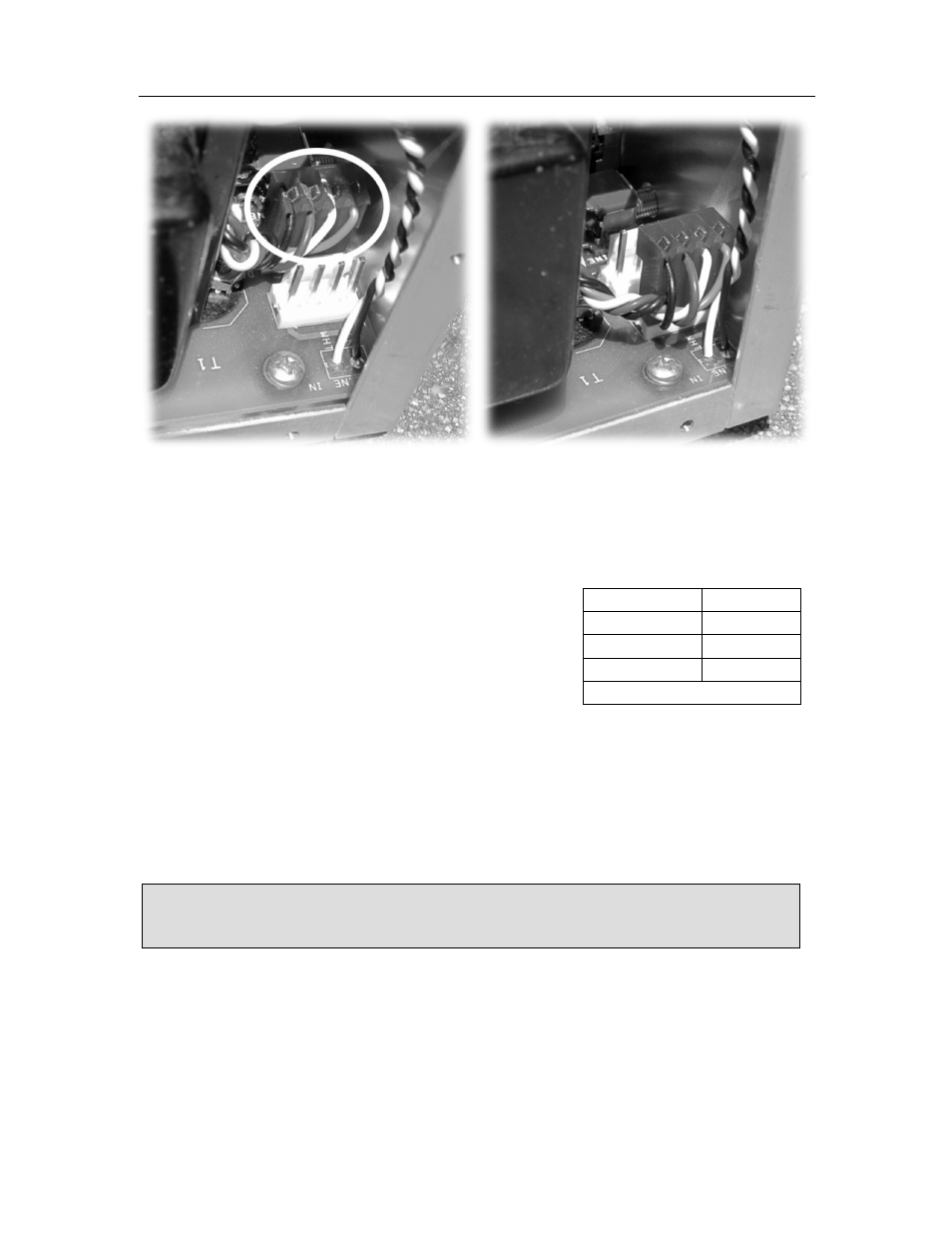

Connector setting for 115VAC input Connector setting for 230VAC input
Fuse
The SOLO/610 is protected with a fuse to prevent circuit damage.
The fuse must be changed if the fuse blows, or whenever the
input voltage is converted (per instructions on previous page). It
is essential to use the correct fuse rating for the AC input voltage
that is used, as shown in the table at right.
To change the fuse:
1. Turn off the rear panel POWER SWITCH, unplug the AC power cord from the rear chassis,
then wait five minutes to allow residual power to dissipate from the internal components.
2. Remove the fuse receptacle by inserting a small standard screwdriver into the slot at the
upper edge, then sliding the plastic fuse holder out of the AC input receptacle.
3. Remove the old fuse. Note there may be two fuses here. The active fuse is held in place with a
plastic clip and has its ends exposed (the enclosed box is for a spare fuse which is inactive).
4. Insert the new fuse into the clip then reinsert the plastic fuse holder into the fuse receptacle.
Service
If your SOLO/610 should ever require service, please see “Service & Support” on page 24.
AC Input Voltage Fuse Rating*
100VAC T300mA 250V
115VAC T250mA 250V
230VAC T125mA 250V
*All fuses must be “slow-blow” type.
 For safe operation, the fuse value must be correct for the AC input voltage. Never
substitute different fuses other than those specified here!
