Interconnection Diagrams
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
1
2
source source
source source
spdif spdif
input input
playback playback
mono mono
headphone headphone
mix mix
USB USB
gain gain
gain gain
peak peak
peak peak
48V 48V
mic mic line line inst inst
mic mic line line inst inst
Switch Positions
FRONT:
MIC / DI:
LO-Z / HI-Z:
+48V / OFF:
LO CUT / FLAT:
OUTø / INø:
REAR:
MIC / LINE:
LIFT / GND:
DI for instrument
HI-Z
OFF
FLAT
IN
Match to mixer input
If humming, set to LIFT
Switch Positions
FRONT:
MIC / DI:
LO-Z / HI-Z:
+48V / OFF:
LO CUT / FLAT:
OUTø / INø:
REAR:
MIC / LINE:
LIFT / GND:
MIC
LO-Z
+48V (if needed)
LO CUT (if needed)
IN
LINE
If humming, set to LIFT
Mixer
(line input
optimum)
SOLO/610
SOLO/610 (rear)
SOLO/610 (rear)
Guitar / Instrument
Guitar Amplifier
Audio Interface
(line input)
SOLO/610
Microphone

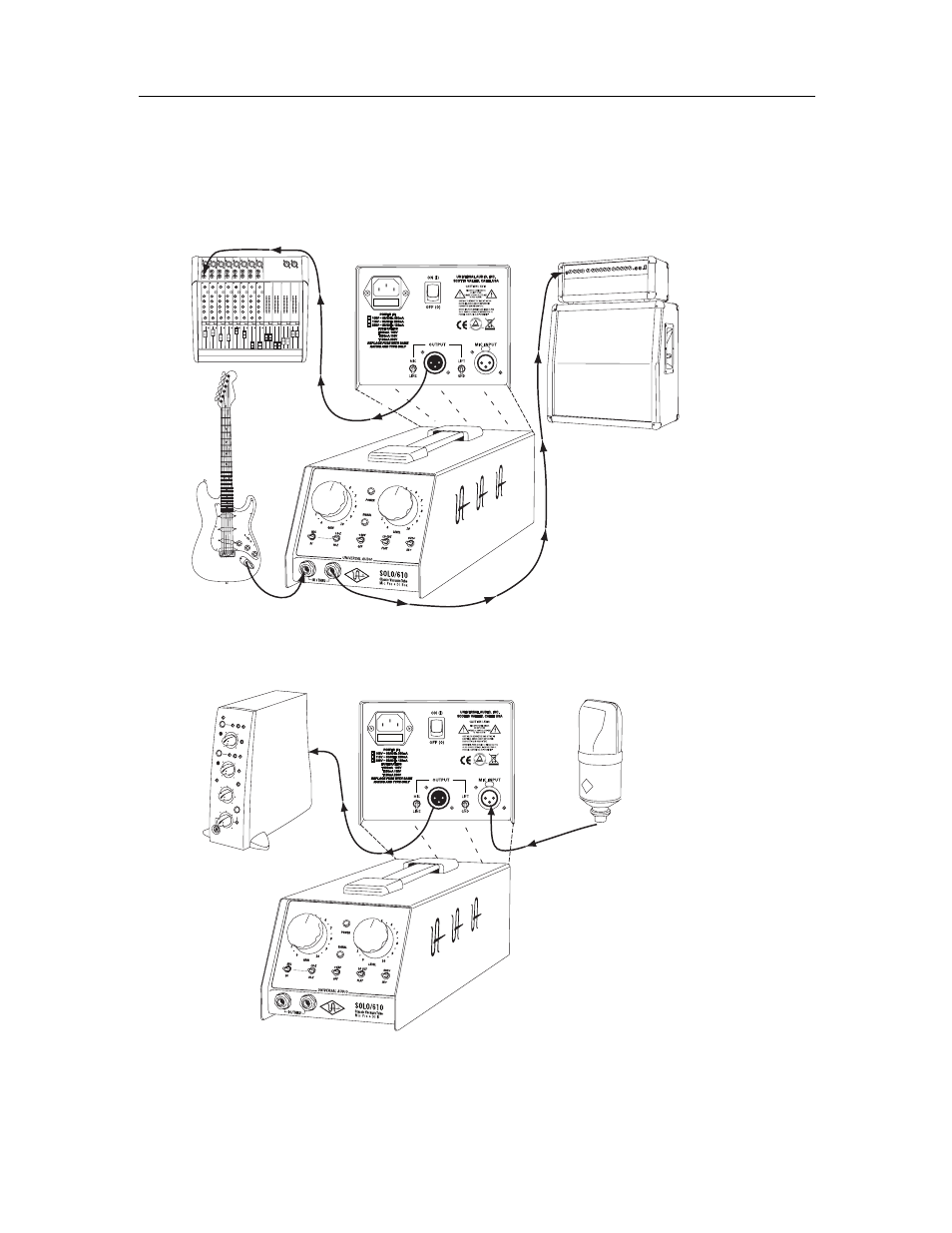

Typical SOLO/610 Live Setup
Typical SOLO/610 Recording Setup
