Installation, Operation and Maintenance Manual
16

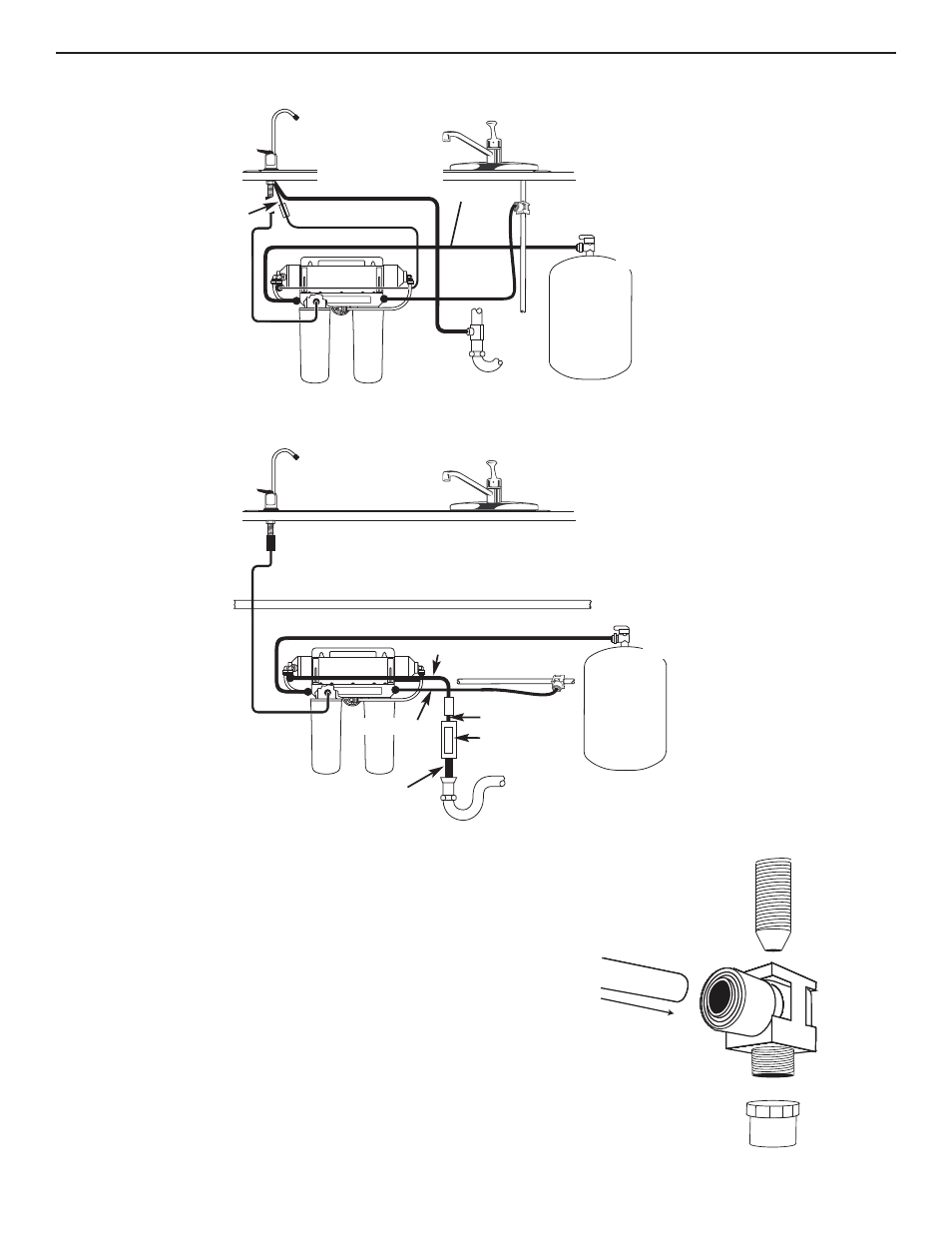

General Under counter Installation Schematic (Figure 1)
General Basement Installation Schematic (Figure 2)
Plastic Faucet Adapter Installation (Figure 3)
Locate the cold water stem on the underside of the faucet fi xture.
Unscrew the cold water feed tube from the faucet stem. Locate the 1/4”
Faucet Adapter that came with your Drinking Water System. Insert the
black gasket into the threaded adapter and tighten onto the Faucet Cold
Water Stem under the sink, making sure A 1/4” fi tting is accessible and
not facing the wall. Make sure not to over tighten. Take the Cold Water
Feed Tube and attach to the Faucet Adapter, making sure not to over
tighten. Locate the 1/4” Faucet Tube and insert into the 1/4” Faucet
Adapter. See “Using Push-In Fittings.”
Faucet with
Air Gap
Cold Water
Supply Only
Storage
Tank Sink
Drain
Red SFC Tubing
3/8” Black
3/8” Yellow
3/8” Blue
RO
Assembly
1/4” Orange
1/4” Green
For best flow, tubing must
be as vertical as possible.
3/8” Yellow
For best flow, keep
tubing from Tank
to RO Assembly as
short as possible.
Faucet without
Air Gap
Cold Water
Supply Only
Storage Tank
Sink
Drain
Red SFC Tubing
3/8” Yellow
1/4” Green
3/8” Blue
RO
Assembly
1/4” Orange
Air gap device
(eg. Gap-A-Flow)
To laundry sink
standpipe or floor
drain
Floor
Undersink Area
For best flow, keep
tubing from Tank
to RO Assembly as
short as possible.
Faucet Tubing
Faucet Stem
Under Sink
Feedwater
Tube
