18
Serial port settings can be changed by and of
ParaniWIN in the menu bar at upper left corner of the window without re-running the ParaniWIN
program.

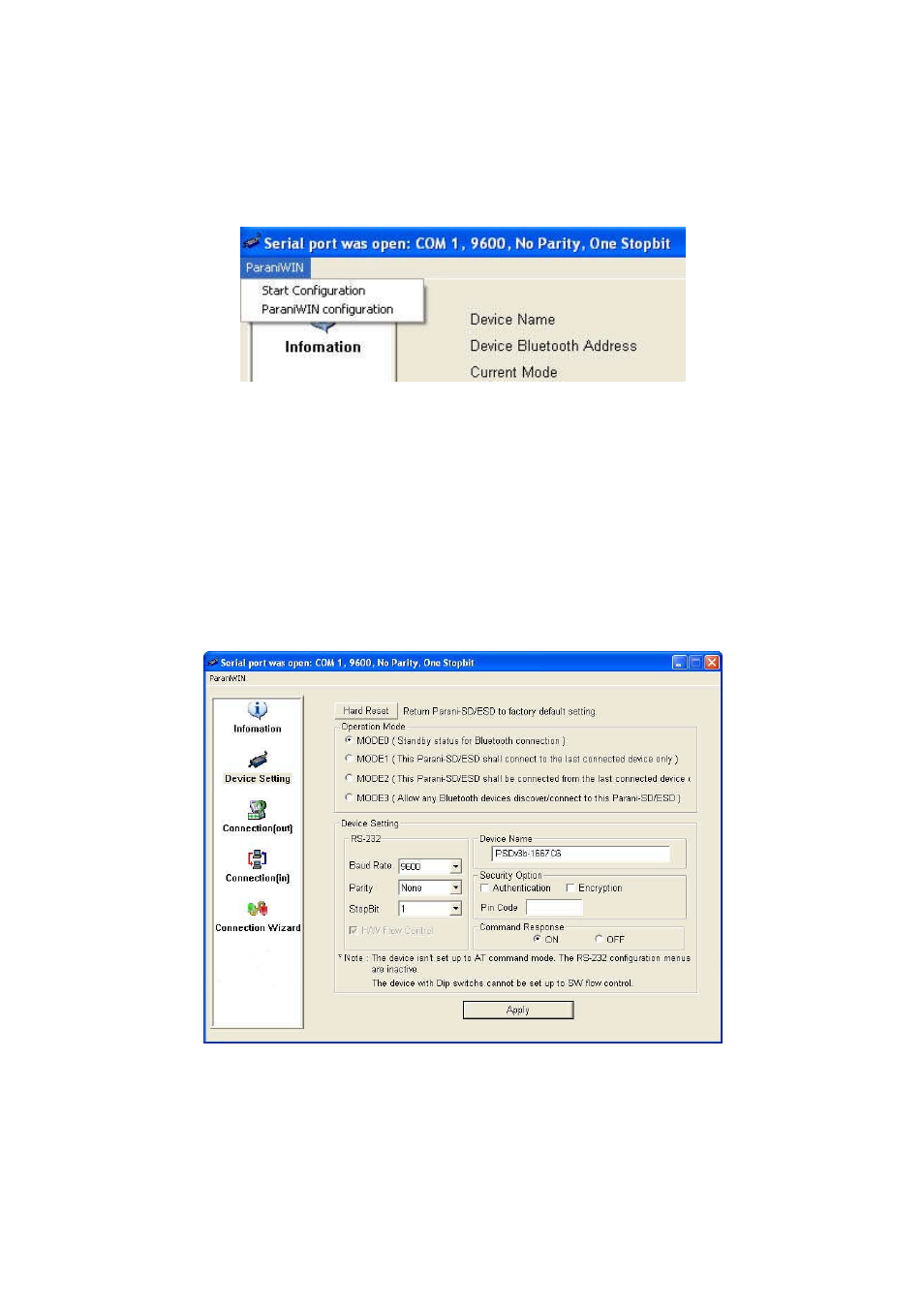

Figure 3-4 Menu Bar at Upper Left corner of ParaniWIN
When the ParaniWin software is able to access the Parani-BCDx10 properly, the icons in the left side
window come will become available for use.
In device configuration window, hardware reset can be executed or operation mode and RS232 can
be configured as well. Security option also can be configured in this window.
Figure 3-5 Device Setting Window
Parani-BCDx10 supports two security options, Authentication and Encryption. If you check the
Authentication option, you must also enter the Pin Code value. If the authentication is activated, the
connection, only between the Master and Slave device that share the same Pin Code, is established.
