FAUCET INSTALLATION

Thank you for purchasing this Price Pﬁster product. All Price Pﬁster products are carefully engineered, and factory tested to
provide long trouble-free use under normal conditions. This product is easy to install using basic tools and our easy to follow
illustrated instructions. If you have any questions regarding this product, call 1-800-Pfaucet (1-800-732-8238).

1 BEFORE PROCEEDING

WARNING: Read all the instructions completely before proceeding. Price Pﬁster

recommends calling a professional if you are uncertain about installing this product!

This product should be installed in accordance with all local and state plumbing and building codes.

2 SHUT OFF WATER SUPPLY

Locate water supply inlets and shut off the water supply valves. These are usually found
under the sink or near the water meter. If you are replacing an existing faucet, remove
the old faucet from the sink and clean the sink surface thoroughly.

3 TOOLS RECOMMENDED

• Plumber's putty

• Screwdriver

• Adjustable wrench

• Pliers

• Flashlight

• Cloth

Your installation may require new supply lines and / or shut-off valves or other additional
tools.

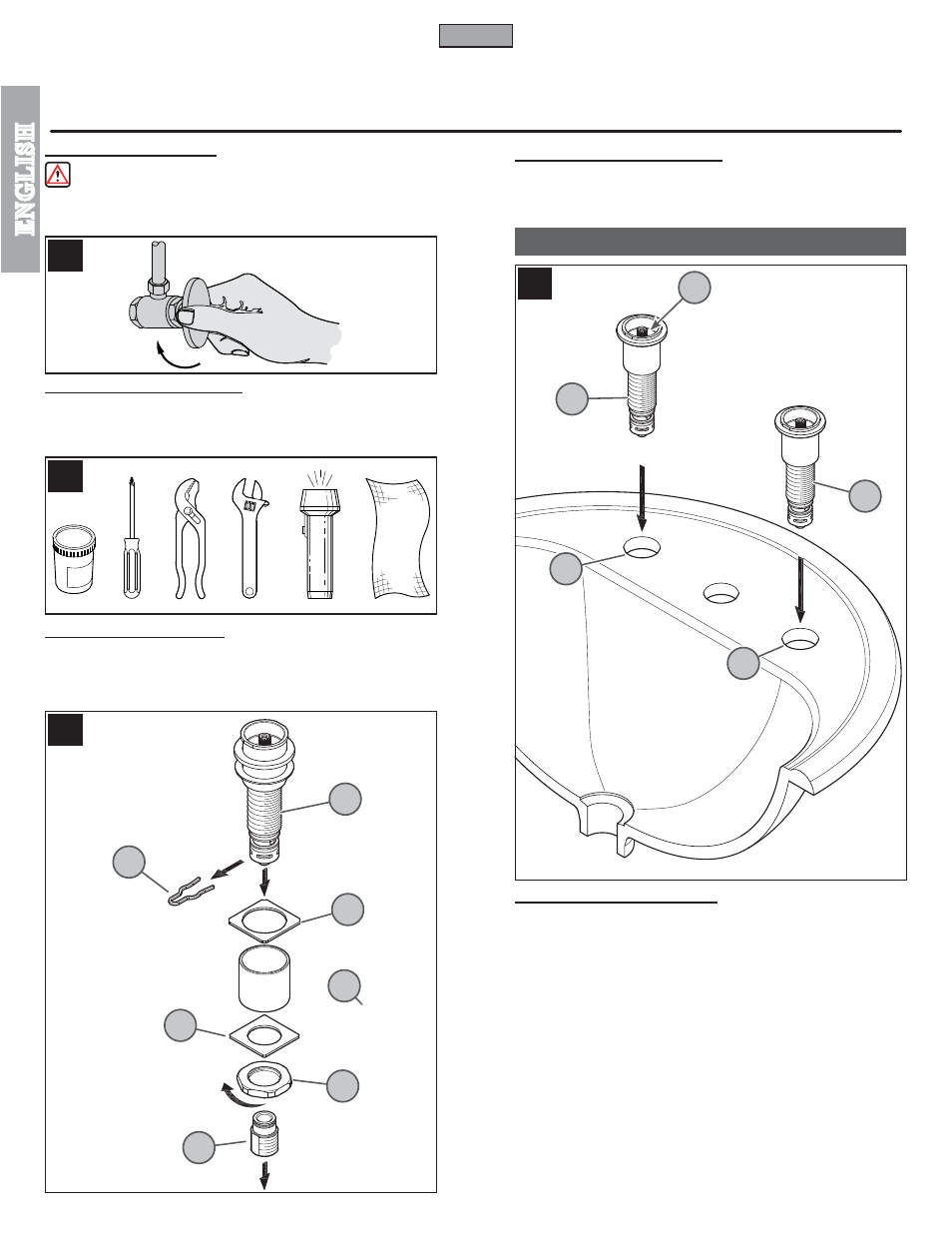

4 VALVE BODY PREPARATION

First, remove Clip (4A) then remove Inlet Connector (4B) from Valve Bodies (4C) and
save. Next, remove Locknut (4D) Sleeve (4E), and Square Washers (4F & 4G) from
Valve Bodies (4C) and save.

5 VALVE BODY ATTACHMENT

From above sink, insert Valve Bodies (5A) through Mounting Holes (5B). The HOT valve,
with internal Red Ring (5C), should be positioned to the left side of the spout.
